Assembly & Mounting Instructions:
Model: 27610
Roller Style Boat Guides
Tools: (2) 9/16" Wrenches
Parts List:
(2) Galvanized Tube Assemblies with Rollers (27612PG)
(2) Galvanized U-Brackets (27603PG)
(2) Black Plastic Caps (11332)
(8) Nylon Locknuts (10810)
(8) Washers (10960)
For 2" Frames
For 3" Frames
(2) 5" U-Bolts (15258)
(2) 5" Formed U-Bolts (15259)

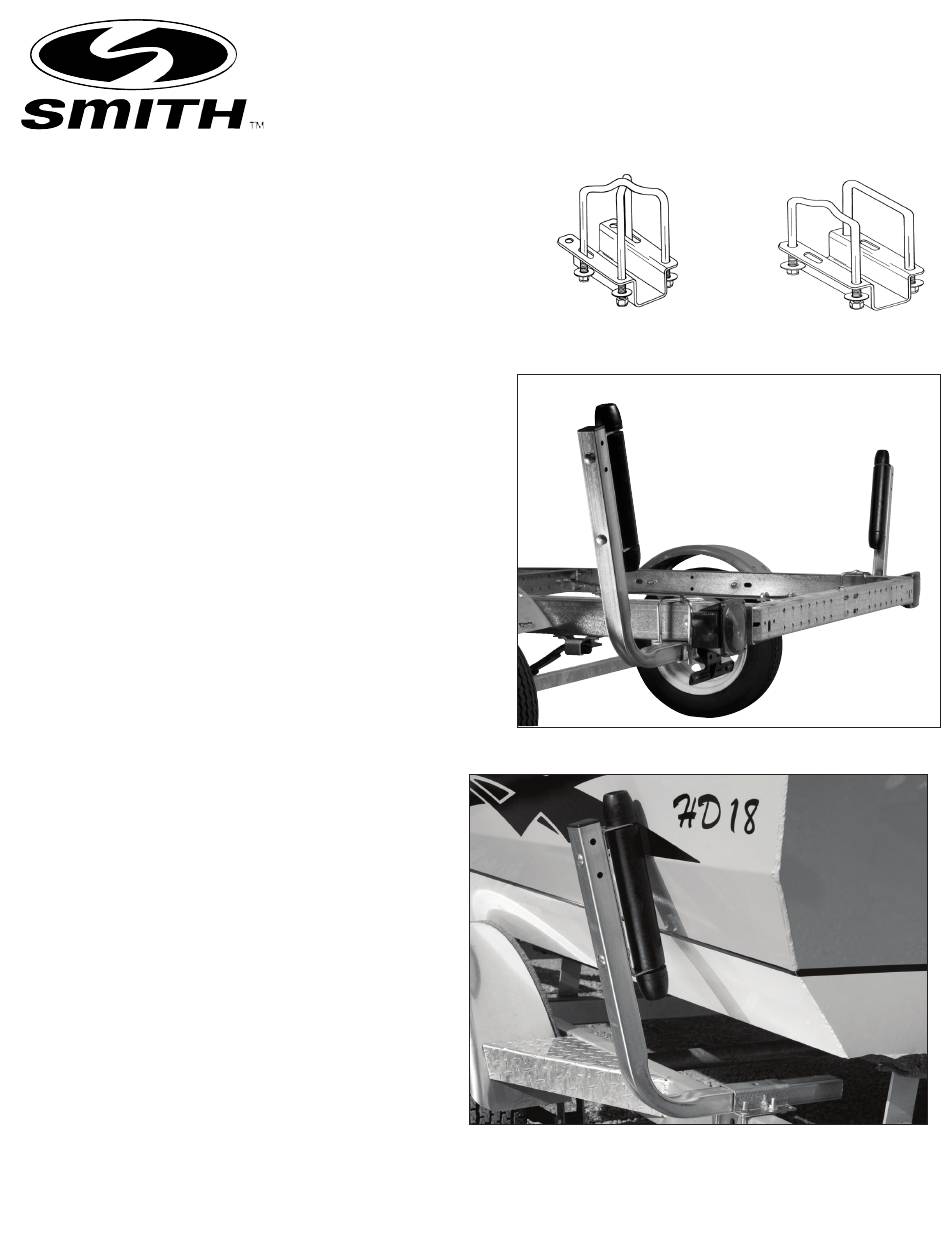

1- Place U-bolts as shown for either 2" or 3" wide frame.
2- Use one straight u-bolt and one formed u-bolt with
washers and locknuts to attach each u-bracket under or
on top of the trailer frame as desired.
3- Insert a guide-on upright post into each of the
u-brackets to the desired width. Do not fully tighten
bolts.
4- Make sure the upright posts are seated level in the
u-brackets before completely tightening u-bolts.
5- Finished tightening u-bolt connections.
6- Insert a black cap on top of each upright post.
C.E. Smith Company, Inc. Greensboro, NC | cesmith.com | P/N 00218 Revised 10/30/2020
