Edge-Core AS7312-54XS Guide De Démarrage Rapide

Quick Star t Guide
54-Port 25G/100G Fiber Ethernet Switch
AS7312-54XS | AS7316-54XS

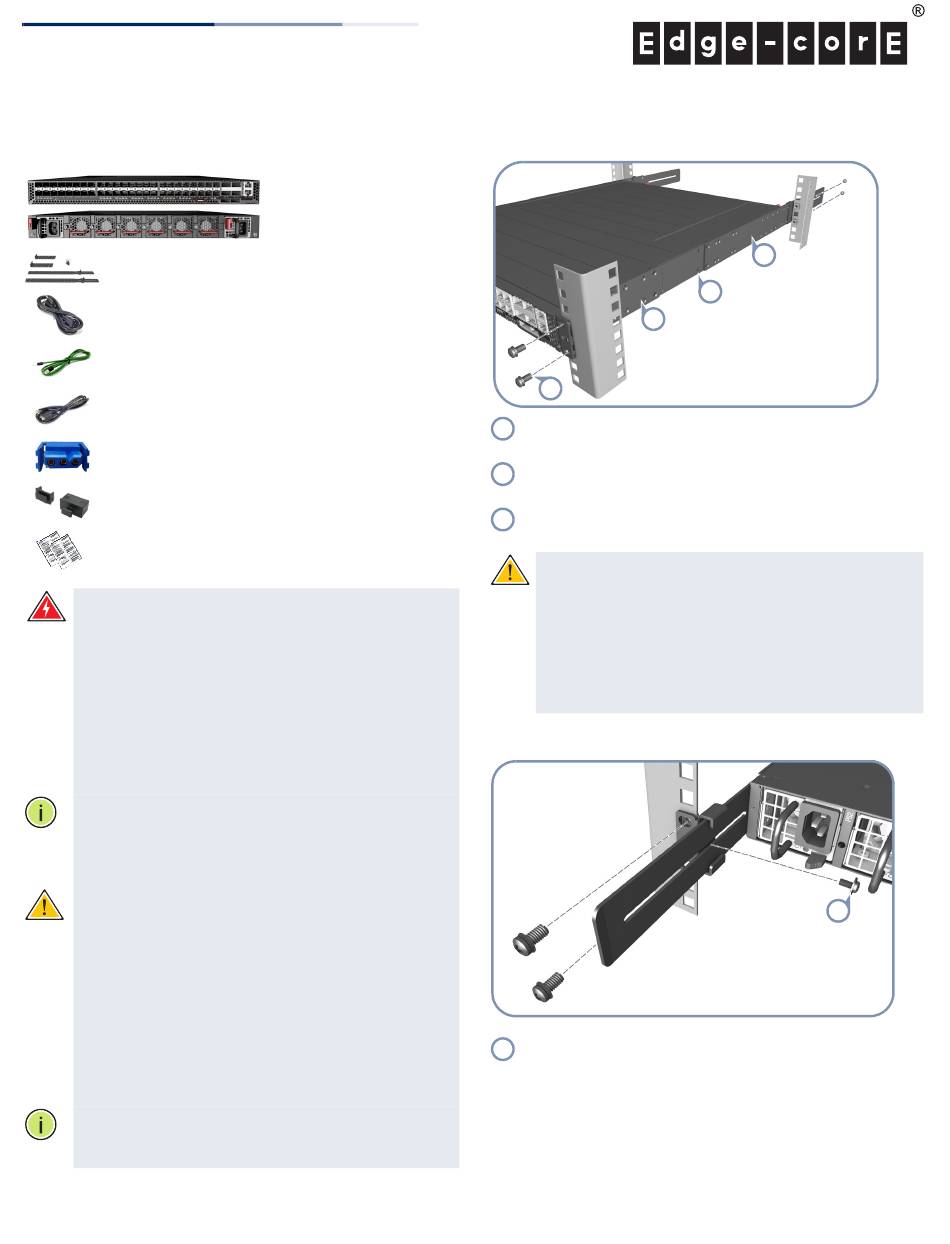

1. Unpack the Switch and Check Contents
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
Power Cord (included with AC PSUs only)
Grounding Wire (included with DC PSUs only)
Console Cable—RJ-45 to DB-9
DC Power Connector (included with 48 VDC PSU only)
Dust Cover Kit—6 for QSFP port and 48 for SFP ports
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Warning:
For a safe and reliable installation, use only
accessories and screws provided with the AS7312-54XS/
AS7316-54XS. Use of other accessories and screws could
result in damage to the unit. Any damages incurred by
using unapproved accessories are not covered by the
warranty.
Avertissement:
Pour une installation sûre et fiable,
uniquement les accessoires et les vis fournies avec le
AS7312-54XS/AS7316-54XS. L'utilisation d'autres
accessoires et vis pourrait endommager l'appareil. Les
dommages causés par l'utilisation d'accessoires non
approuvés ne
sont pas couverts par la garantie.
Note:
The switch has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
switch, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
Caution: The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Attention:
Le commutateur comprend des modules
d'alimentation et de bac de ventilateurs installés sur son
châssis. Tous les modules installés doivent avoir une
direction de circulation d'air correspondante. C'est-à-dire
que tous les modules doivent avoir la même direction de
circulation d'air: avant vers arrière (F2B), ou arrière vers
avant (B2F).
Note:
The switch drawings in this document are for
illustration only and may not match your particular switch
model.
www.edge-core.com
All manuals and user guides at all-guides.com
AS7312-54XS or
AS7316-54XS
the
utilisez
2. Attach the Brackets
3
1
Attach each of the front- and rear-post brackets to the
switch using four of the included bracket screws.
2 Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the switch.
3 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution: Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
Attention:
Deux personnes sont nécessaires pour installer
un commutateur dans un bâti : La première personne va
positionner le commutateur dans le bâti, la seconde va le
fixer avec des vis de montage.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る 。
3. Adjust Rear-Post Bracket Ears
1 Lock the position of the rear-post bracket ears using the
included position-locking screws.
You can also adjust the rear-post bracket ears to fit different
rack depths from 56 cm to 75 cm.
– 1 –
1
2
1
1
E102019-AP-R04
150200001566A
