JUNO RCLFM11 Instructions D'installation

Trac-Lites Single-Circuit Current Limiting End Feed Connector
Read and understand these instructions before installing fixture.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at main circuit breaker panel before proceeding.
SAVE THESE INSTRUCTIONS
Connector RCLFM11 and RCLFMR11
for use with Trac-Lites Single-Circuit
Trac only. Current Limiter will limit
the wattage on a circuit and can be
used as a standard ON/OFF switch.
Current limiting feed can be fed directly
using flexible or rigid conduit with 3/8" or
1/2" electrical connector from standard
ceilings or grid ceiling runner systems.
NOTE:
1. Turn off power at breaker box before
installing electrical connector and trac.
2. If feeding with electrical connectors do
not use feed connector as a conduit
support. Independent conduit supports
must be used to attach the conduit to
the building structure.
3. Observe polarity; white neutral wire
must be connected to the terminal
marked "N" in the feed connector.
4. Use 12 gauge or 14 gauge solid wire in
feed connector only. Feed connector
rating 120V, 20Amp max., 60Hz.
5. Use the proper rated Juno current
limiting circuit breaker (TCL Series) to
limit the load on the circuit (current
limiting circuit breaker sold separately).
6. Feed connector is polarized and will
only install into one end of the trac.
Align polarity arrow on feed connector
toward trac polarity line for proper
installation. See Figure 1.
7. Do not position luminaire such that it
touches the feed connector.
Note: This Current Limiting Trac Feed
Connector conforms to ASHRAE 90.1
Section 9.1.4(c) and is certified to California
Energy Commission T24-2008, Section
119(L) of the California Energy Code.
1300 South Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • www.junolightinggroup.com
INSTALLATION INSTRUCTIONS
For RCLFM11 / RCLFMR11
INSTRUCTIONS FOR INSTALLING CURRENT LIMITING FEED
CONNECTOR USING FLEXIBLE OR RIGID CONDUIT
Step 1. Remove the COVER and retain.
Step 2. Mark centerline of PLATE on ceiling
to determine the mounting location
of the FEED CONNECTOR.
Step 3. Make a hole in the ceiling for the
electrical connector in the position
that coincides with the ELECTRICAL
KNOCK-OUT.
Step 4. Remove ELECTRICAL KNOCK-OUT
where the power is to be passed
through.
Step 5. Push Current Limiting CIRCUIT
BREAKER into PLATE.
Step 6. Attach electrical connector (by
others) to PLATE in round hole.
Step 7. Pass supply wires through hole in
ceiling and through electrical
connector.

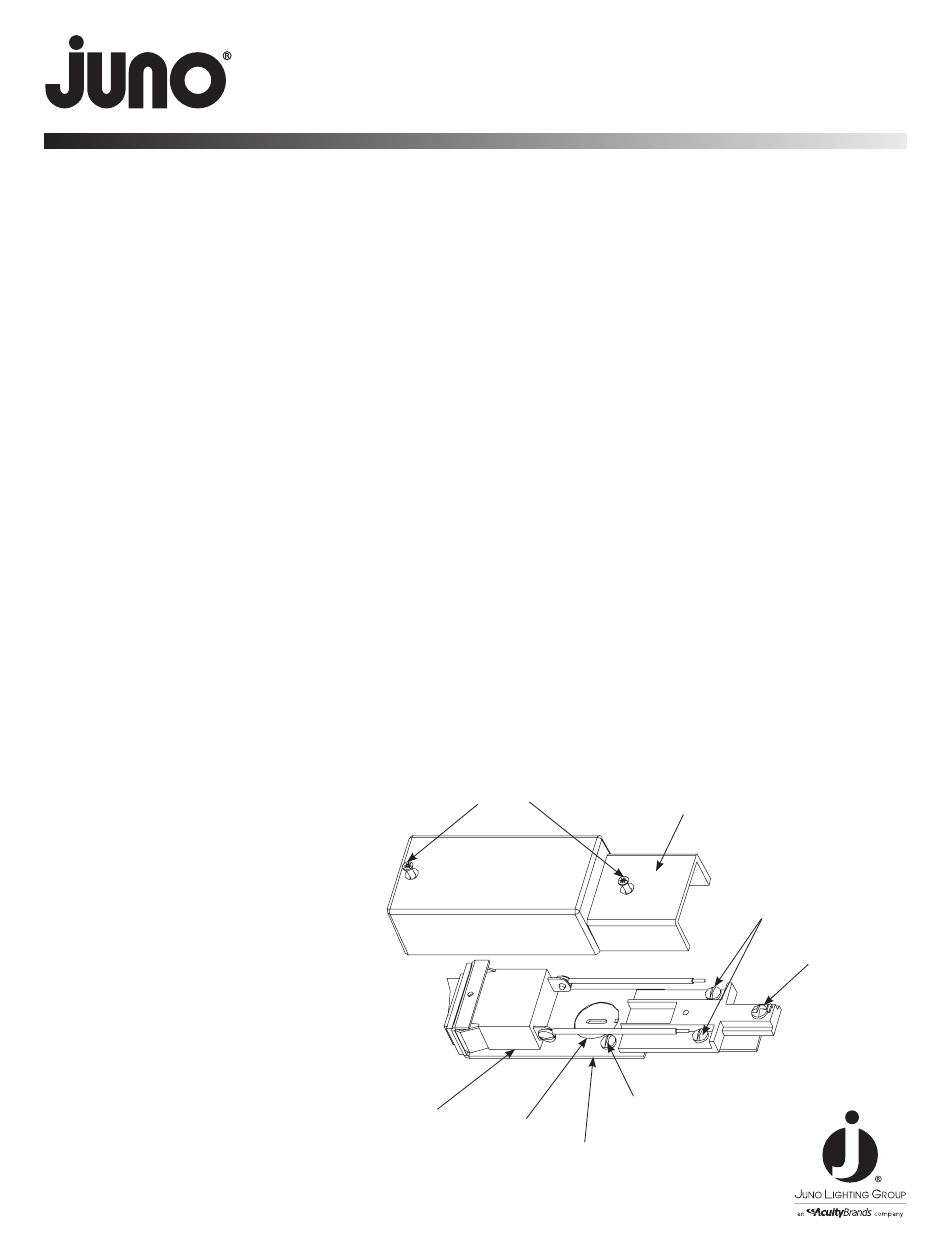

Figure 1
Tamper Resistant
Screws
Circuit Breaker
Electrical
Knock-Out
©2016 Acuity Brands Lighting, Inc.
Step 8. Slide trac onto FEED CONNECTOR;
ensure (2) contact blades insert
into the gap of the trac bus bars.
Step 9. Tighten ONE-WAY SECURITY
SCREW.
Step 10. Attach wires per wiring instructions
and Diagram 1 on page 2.
Step 11. Fasten COVER taking caution to
avoid pinching any wires.
Use TAMPER RESISTANT SCREWS
(provided).
Cover
Ground Screw
(Green)
Plate
Printed in USA Rev 2/16
Feed Connector
One-Way
Security Screw
P3625 pg 1 of 2
