Connections and Setup

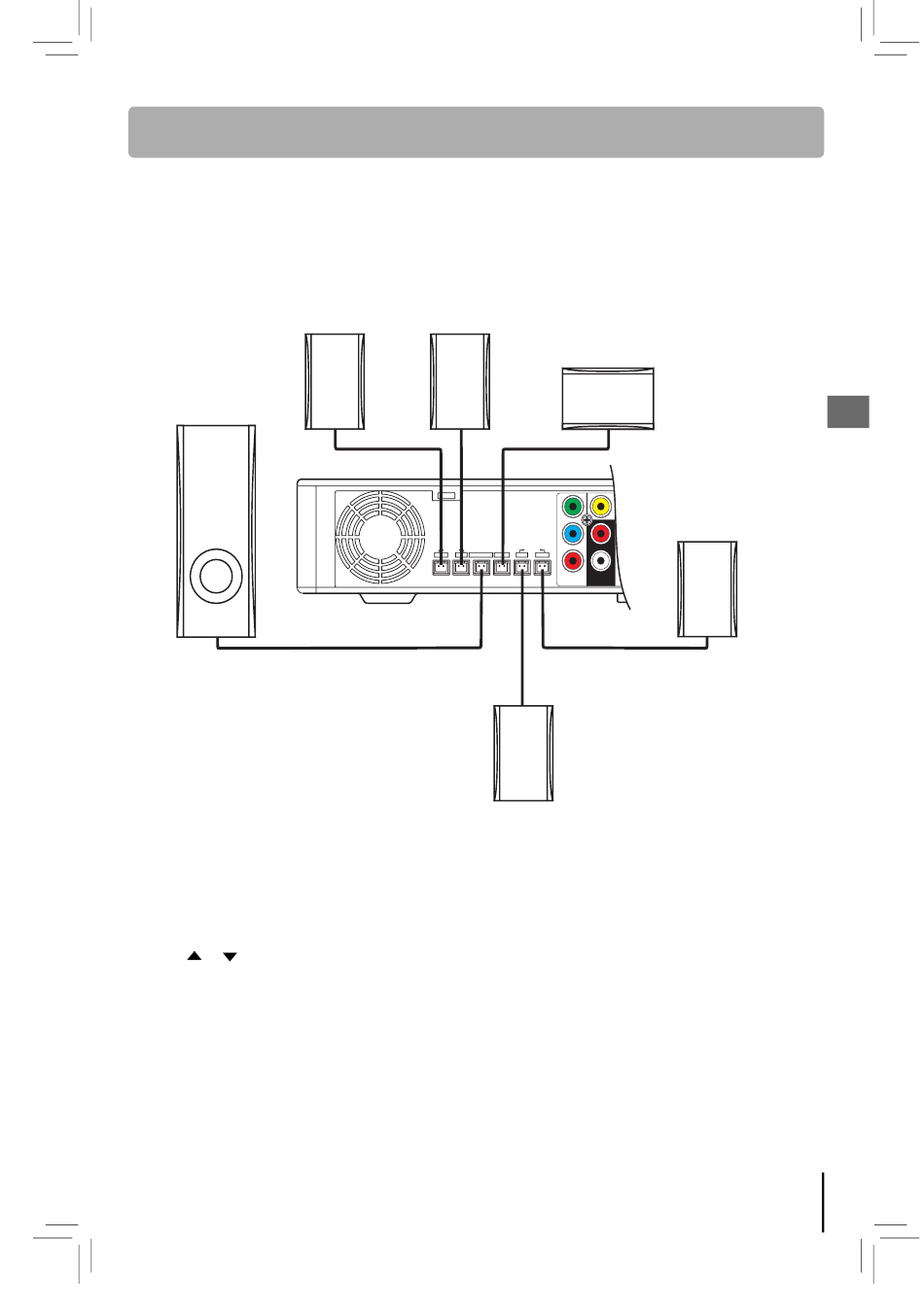

Connecting the speakers
The speaker plugs are color-coded to match the terminals. Insert the speaker plug from the back of each
speaker into the corresponding color terminal at the back of the unit.
Note: Connecting speakers other than the speakers supplied with the unit, may damage the system.
Front speaker
Subwoofer
To adjust each speaker volume level for optimum listening experience.
1) Turn on your TV.
2) Press SOUND button on the remote control to select Right (front right speaker).
3) Press or buttons to adjust the value up or down (between 0dB and 10dB).
The value will be displayed on TV screen.
4) Repeat step (1) and (2) for the other speakers Left, Right surr., Left surr., Subwoofer.
Speaker gains may be set to levels of up to 10dB, actual max levels may also depend on your
Volume Setting.
