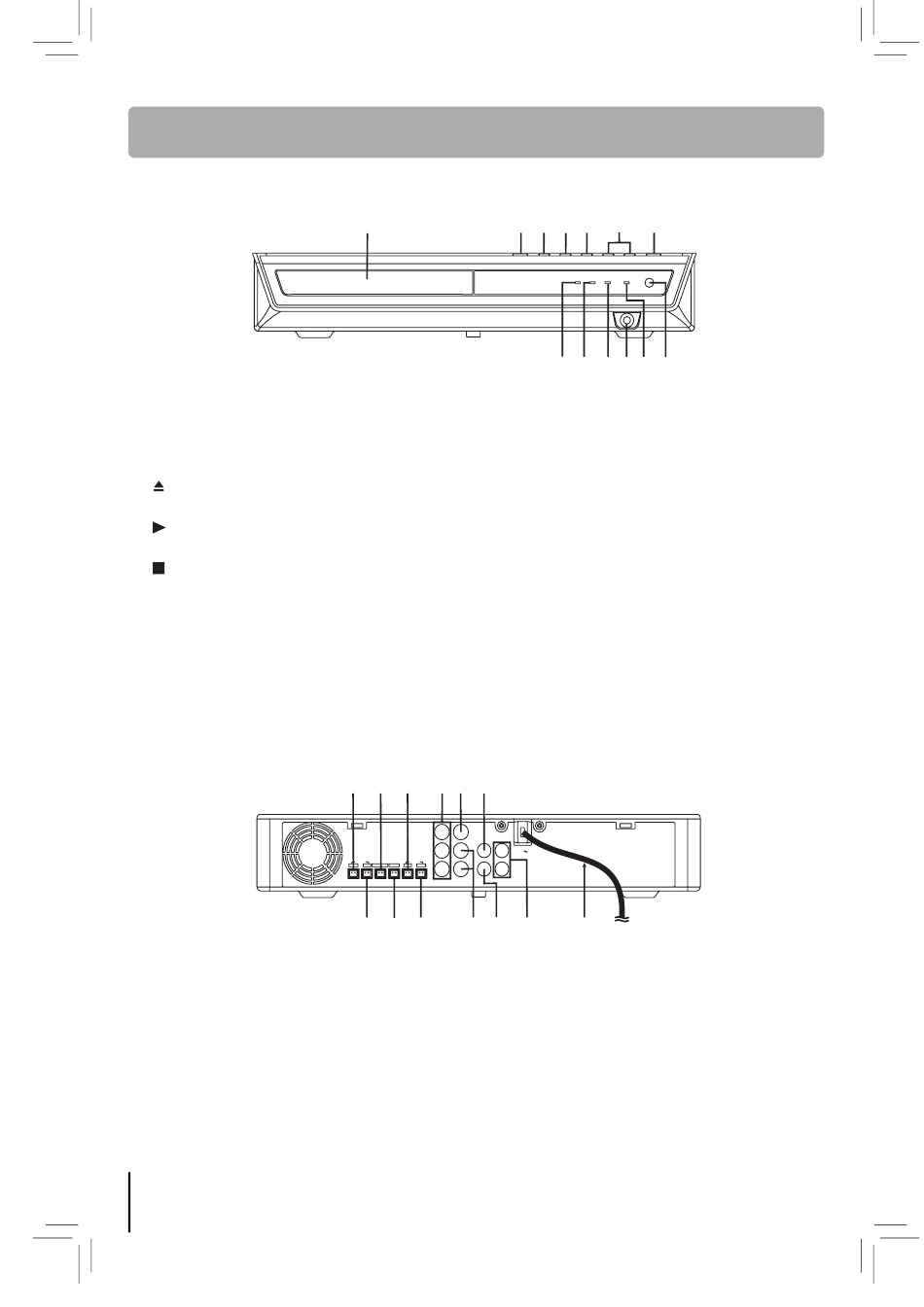

Overview of Controls
Front panel
1) Disc tray
Open or close tray by pushing OPEN/CLOSE
button. Place a disc on the disc tray, label side
up.
2)
OPEN/CLOSE button
Use to open and close the disc tray.
3)
PLAY button
Press to start or resume playback
4)
STOP button
Stop playing a disc.
5) FUNCTION button
Switches between DVD, AV IN and AUX IN.
6) VOLUME + / - buttons
Adjust the sound.
Rear panel
14) RIGHT FRONT speaker terminal
15) SUBWOOFER terminal
16) LEFT REAR speaker terminal
17) COMPONENT VIDEO OUT jacks (Y, P
18) VIDEO IN jack
19) VIDEO OUT (TV) jack
20) RIGHT REAR speaker terminal
14
All manuals and user guides at all-guides.com
1
14 15 16 17 18 19
RIGHT
LEFT
FRONT
REAR
SUBWOOFER
CENTER
REAR
FRONT
20 21 22
23 24 25
, P
)
B
R
2 3 4 5
6
7
8 9 1011 12 13
7) STANDBY/ON button
Turns the unit on and puts it in standby
mode.
8) AUX IN indicator
9) AV IN indicator
10) DVD indicator
11) AUX IN jack
12) STANDBY/ON indicator
Indicate whether the unit is ON or in STANDBY
mode.
Indicator On : The unit is on STANDBY.
Indicator Off : The unit is turned ON.
13) Remote sensor
Receive the remote control unit signals.
AC
26
21) CENTER speaker terminal
22) LEFT FRONT speaker terminal
23) LEFT/RIGHT AUDIO IN jacks
24) DIGITAL AUDIO OUT jack
25) LEFT/RIGHT AUDIO OUT jacks
26) Power cord
