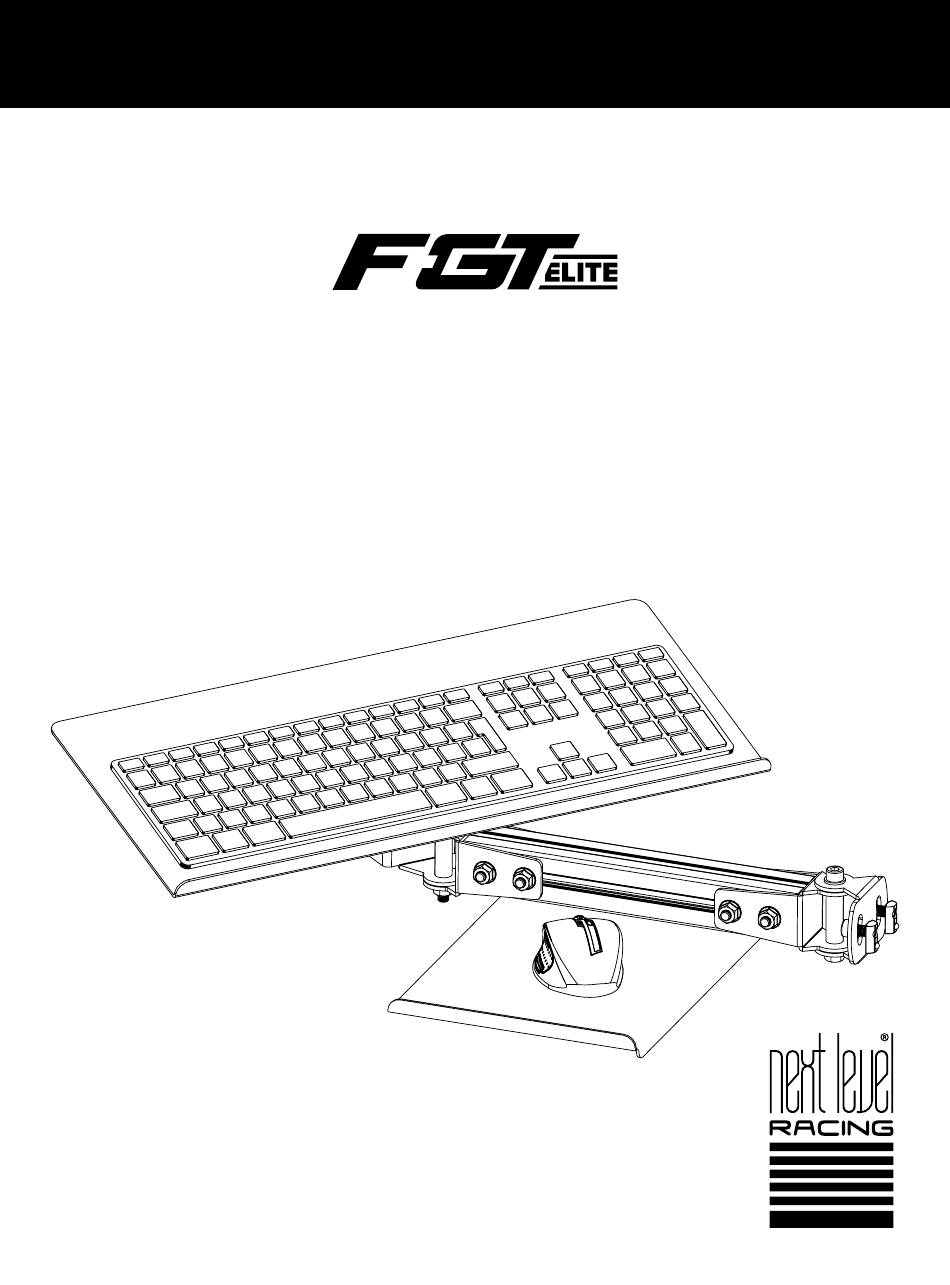

T A K E R A C I N G T O T H E N E X T L E V E L Video Instruction: bit.ly/nlrbuild KEYBOARD & MOUSE TRAY INSTRUCTION MANUAL...
Page 2
We know you’re eager to start racing! Take your time with the instructions and follow this guide to assemble your product. You’ll be setting yourself up for success with following the instruction booklet to fully optimize your product. ASSEMBLY VIDEO bit.ly/nlrbuild @next_level_racing @nextlevelracingOfficial @nextlvlracing Next Level Racing FOLLOW support@nextlevelracing.com...
Page 3
Video Instruction: bit.ly/nlrbuild T A K E R A C I N G T O T H E N E X T L E V E L® N E X T L E V E L R A C I N G . C O M...
Page 4
support@nextlevelracing.com PRE-RACE CHECKS WARNING • Please do not use power tools for assembly as over tightening can damage your frame • Please ensure T-Nuts are correctly placed within the extrusion • Do not force parts together • Avoid cross threading bolts •...
Page 5
Video Instruction: bit.ly/nlrbuild IN THE 1 xMouse Tray 1 x Keyboard Tray 1 x Keyboard 1 x 35mm / 42mm / 50mm Barrel Spacers Connector Bracket 1 x 40x40 Extrusion 1 x Mounting Bracket 2 x Connector Bracket 4 x 16mm M8 Bolt 7 x M8 Flange Nut 4 x M8 60mm 2 x M8 65mm...
Page 6
support@nextlevelracing.com PARTS: 2 X T-NUT TIPS: Install on the side you want your keyboard stand mounted Install 2 x T-nut into the vertical post as shown. (Red dots for T-Nut placement) PARTS: 1 X MOUNTING BRACKET 2 X M8 WASHER 2 X 16MM M8 BOLT Bolt through the mounting bracket into the T-nuts previously installed in step 01.
Page 7
Video Instruction: bit.ly/nlrbuild PARTS: 1 X CONNECTOR BRACKET 1 X M8 BARREL SPACER 42MM Line up holes on the connector bracket with holes on the mounting bracket previously installed in Step 02 and install a barrel spacer between them. PARTS: 1 X 65MM M8 BOLT 1 X M8 NUT 1 X M8 WASHER...
Page 8
support@nextlevelracing.com PARTS: 1 X 40X40 EXTRUSION 2 X M8 WASHER 2 X 65MM M8 BOLT 2 X M8 NUT TIPS: The aluminium extrusion has 2 pre-drilled holes Line up pre-drilled holes on the 40x40 extrusion with the holes on the bracket previously installed in step 03B, bolt through and secure with a nut.
Page 9
Video Instruction: bit.ly/nlrbuild PARTS: 1 X CONNECTOR BRACKET 2 X M8 NUT 2 X M8 WASHER 2 X 65MM M8 BOLT TIPS: Line connector bracket up with holes in 40x40 Line the holes on the connector bracket with the pre-drilled holes in the 40x40 extrusion then bolt through the bracket and holes with 2x M8 65mm bolts, washers and the nuts.
Page 10
support@nextlevelracing.com PARTS: 1 X KEYBOARD TRAY 1 X M8 85MM BOLT 1 X M8 WASHER 1 X M8 NUT 1 X 50MM M8 BARREL Line up the Keyboard tray with the connecting bracket from Step 07 then install M8 barrel spacer be- tween the holes.
Page 11
Video Instruction: bit.ly/nlrbuild ASSISTANCE ASSEMBLY VIDEO bit.ly/nlrbuild If you require further support with your product please contact our friendly team at: support@nextlevelracing.com...
