4.2 EXTERNAL POWER SUPPLY
An optional external power supply can be used with the ACP
2005 and ACP 2015. The requirements are a stabilised 3VDC
supply with a minimum current output of 100mA. The supply is to
be terminated with a 2.1mm/5.5mm (0.08''/0.219'') power
connector (centre negative).
The unit is to be externally powered by a UL Listed ITE Limited
Energy Power Supply only.
4.3 MEASURING CURRENT
Read safety section of instructions before operating this
product.
Ensure conductor to be tested is de energised
Connect the output of the electronics to the input of an
oscilloscope or other data recording device.
The flexible current probe is not for use on conductors
with a potential of over 1000V.
Wrap the flexible probe around the conductor to be tested,
close coupling. Energise the circuit under test. Locate the
coupling away from nearby conductors.
_______________________________________________________________
9

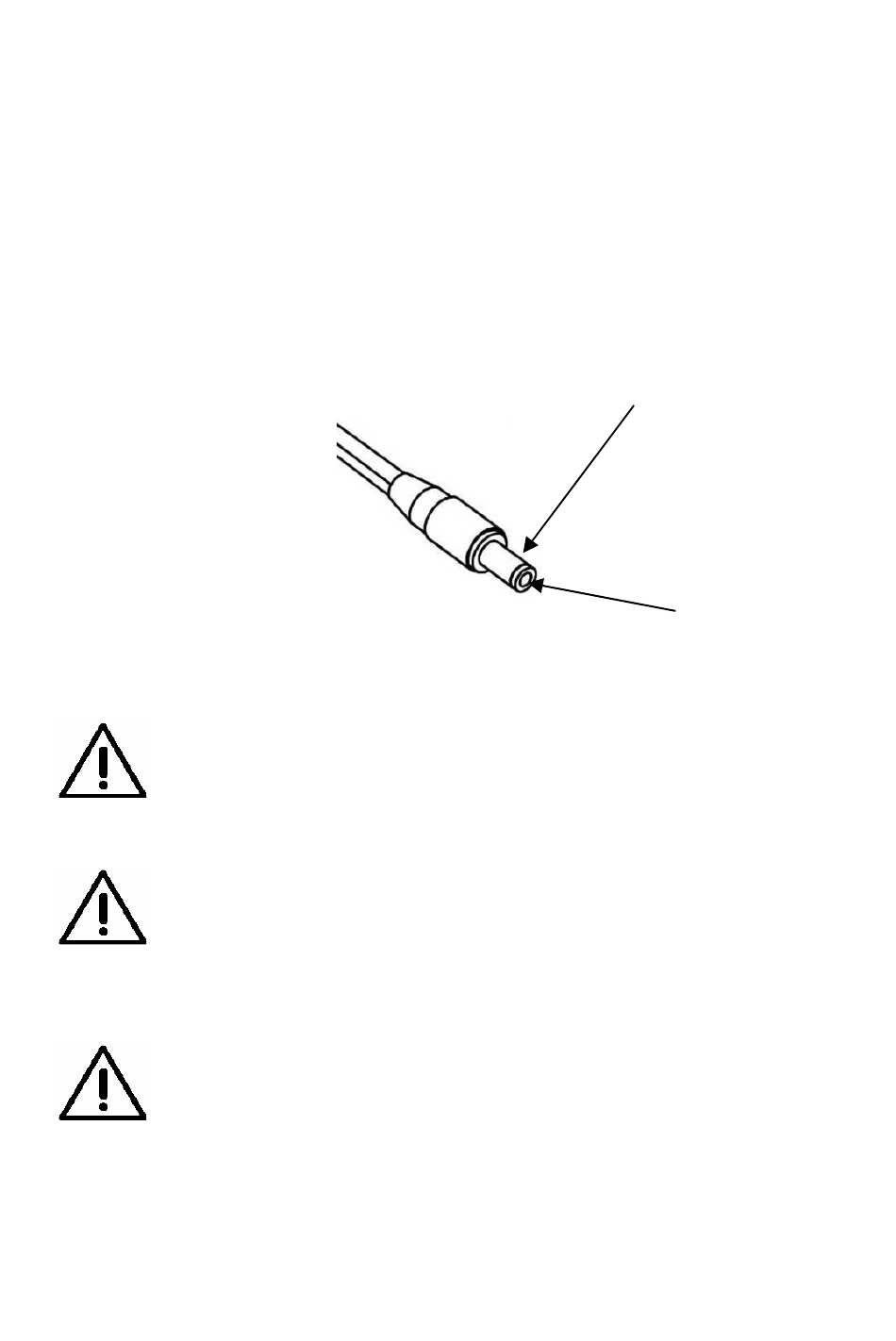

(+terminal)
(- terminal)
