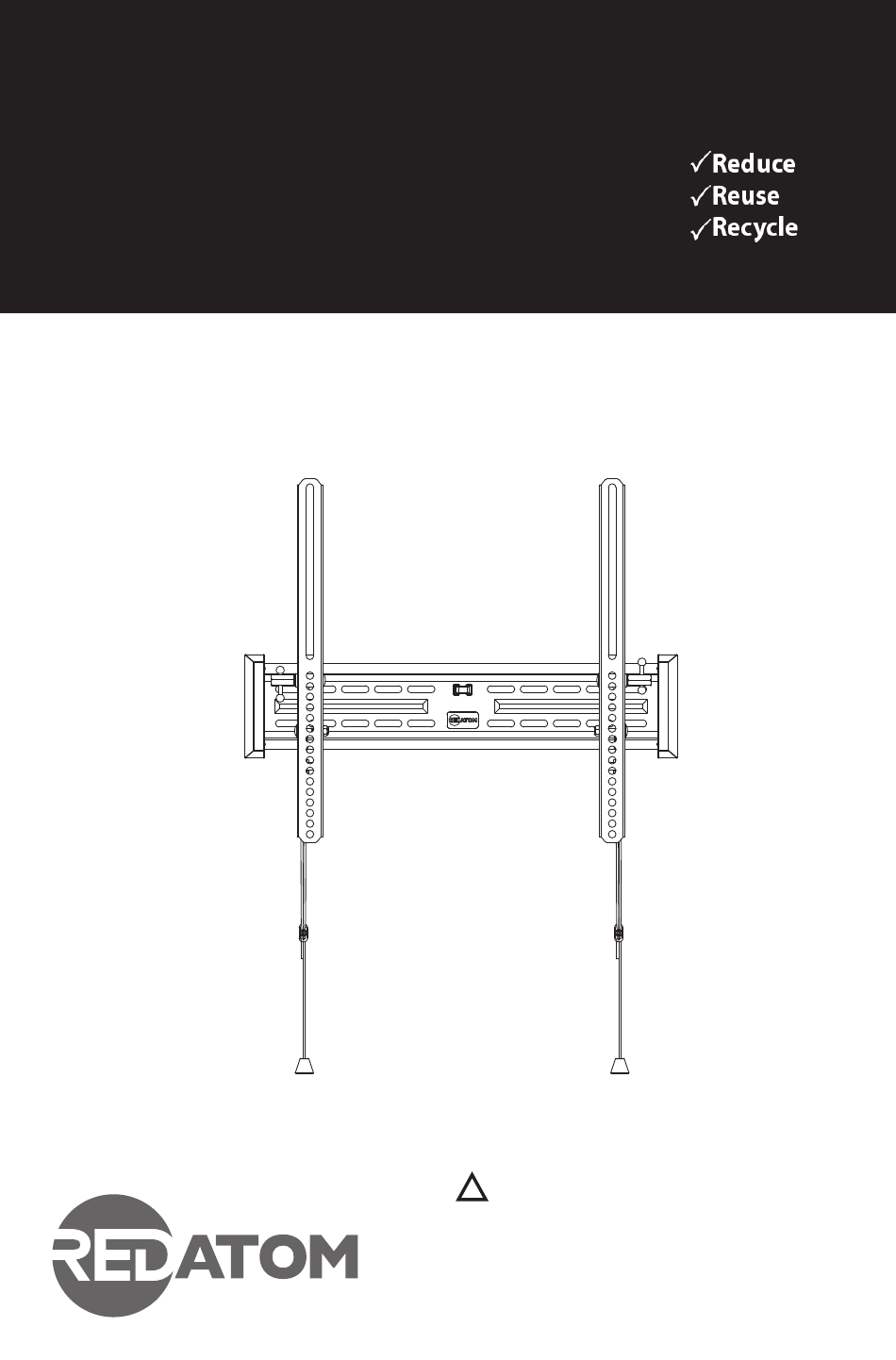

Large & Extra Large Tilt Flat Panel Mount
REDLTHD120
REDXLTHD175
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
!
CAUTION:
CAUTION: DO NOT EXCEED MAXIMUM
THE MAXIMUM LOADING WEIGHT IS 120
LISTED WEIGHT CAPACITY. SERIOUS
LBS FOR LARGE MOUNT AND 175LBS FOR EXTRA LARGE
MOUNT. USE WITH PRODUCTS HEAVIER THAN THE
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Large Full Motion Mount
Max Screen Size: 60"(L) / 90"(XL)
Max Screen Size: 70"
Max weight: 125lbs
V4
V4
P 1
Publicité
Manuels Connexes pour REDATOM REDLTHD120
Sommaire des Matières pour REDATOM REDLTHD120
- Page 1 Large & Extra Large Tilt Flat Panel Mount REDLTHD120 REDXLTHD175 INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: CAUTION: DO NOT EXCEED MAXIMUM THE MAXIMUM LOADING WEIGHT IS 120 LISTED WEIGHT CAPACITY. SERIOUS LBS FOR LARGE MOUNT AND 175LBS FOR EXTRA LARGE MOUNT.
- Page 2 QUESTIONS? NEED HELP? PLEASE CALL info@redatomproducts.com DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
- Page 3 HARDWARE PRODUCT NUMBERS M4 x 30 M6 x 30 M8 x 30 M4 x 12 M6 x 15 M8 x 15 M8 x 45 LAG BOLT WALL SQUARE LAG BOLT 10mm STEEL 8mm x 65mm ANCHOR WASHER SPACER STEEL WASHER SPACER WASHER PRODUCT COMPONENT PARTS...
- Page 4 STEP 1A - FLAT BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) Connect Universal Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1B - CURVED BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) Connect Universal Vertical Rails to flat panel Spacers can also be used to Conecte el adaptador al monitor provide clearance for cables...
- Page 5 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television. select the proper spacers or spacer suit as below if necessary...
- Page 6 STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) STEP 2- CENTER UNIVERSAL MONITOR PLATE Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE WITH INCLUDED BUBBLE LEVEL AND...
- Page 7 STEP 2C- MOUNT WALL PLATE TO WALL Mount wall plate 16” STUD (Large Tilt Mount) Coloque la placa de pared 16” or 24” STUD (Extra Large Tilt Mount) Montez la plaque murale...
- Page 8 STEP 3 – SOLID CONCRETE INSTALLATION Use wall plate to mark mounting locations/ drill pilot holes Use la placa de pared para marcar el lugar donde se realizará la instalación Utilisez la plaque murale pour marquer l'emplacement de montage Level Solid Concrete Drill Bit Drill Pilot Hole...
- Page 9 STEP 3C- SOLID CONCRETE INSTALLATION. Mount wall plate Coloque la placa de pared Montez la plaque murale Insert wall anchors gently into concrete wall with hammer if necessary Concrete Wall Concrete Wall Hammer...
- Page 10 STEP 4A- ATTACH PANELTO WALL PLATE & ADJUST TILT ANGLE Hang vertical rails with monitor attached Cuelgue con el monitor adherido. Accrochez avec le moniteur installé. Flat Panel Vertical Rails Pull spring lock cord down and gently push bottom of panel to wall and release spring lock.
- Page 11 STEP 4B- ADDITIONAL SECURITY FEAUTURE (OPTIONAL) Option Opcione Option Vertical Rails Flat Panel Wall Plate Vertical Rails have 7mm hole located at the bottom for placement of pad lock for additional theft security (pad lock not included) STEP 4D - ADJUST STRAP LENGTH (OPTIONAL) Squeeze and hold control to adjust...
- Page 12 WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized RED ATOM Dealer. RED ATOM products are covered against defects in materials and workmanship for 5 years. RED ATOM will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from RED ATOM will result in void of warranty.
