Product- and functional description,
Drain
The drip tray catches condensation and is fitted with an
outlet branch that has a ½" tapping (enclosed).

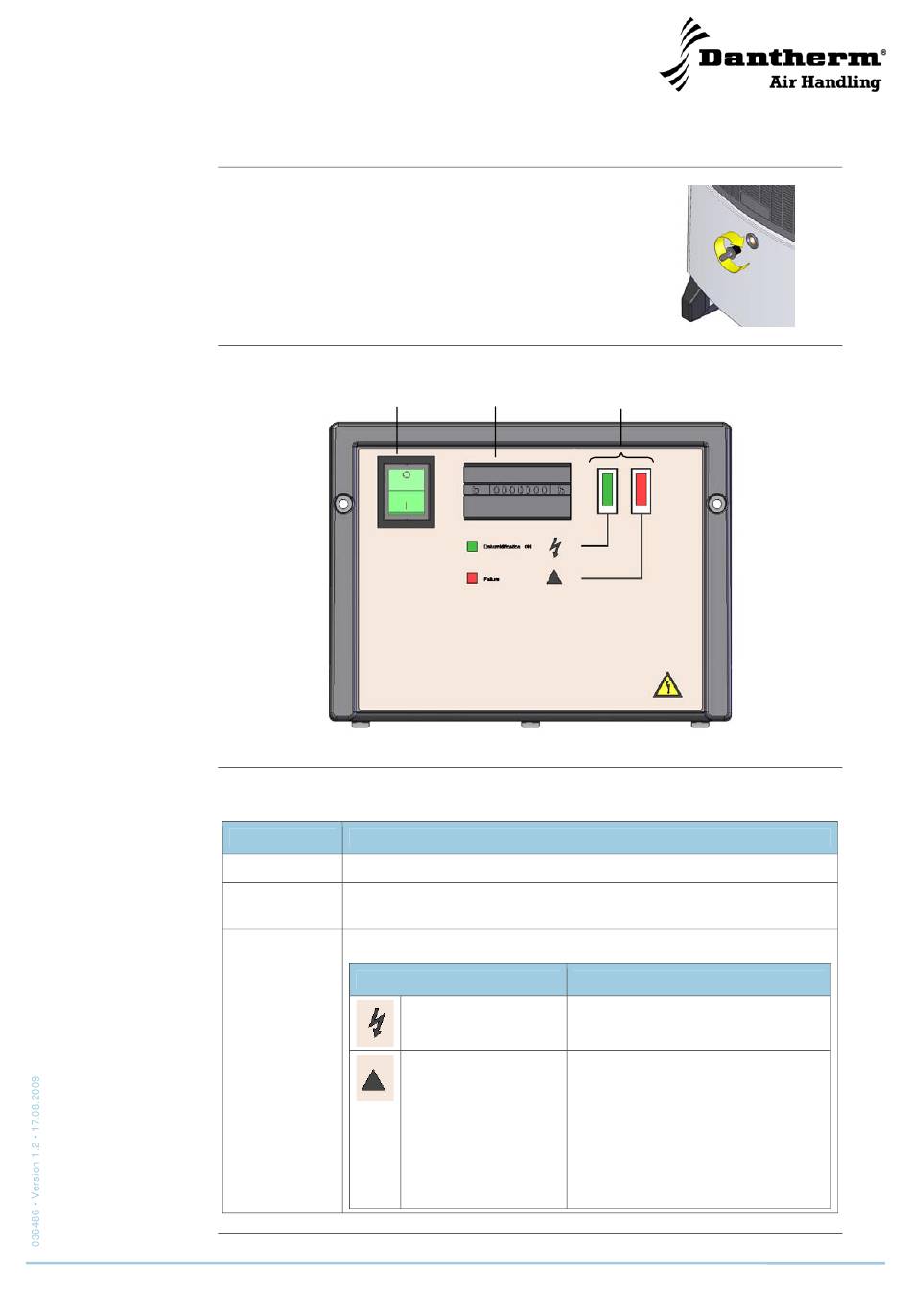

Illustration, Dis-
This illustrates the operator control:
play/operator con-
trol
Part/function
The following describes the function of the different parts of the operator control:
Main switch
Running time
meter
Indicators
All manuals and user guides at all-guides.com
Main switch
Running time meter
Part
Switching-on/cutting-off power
Trip counter, reading the number of operating hours
The following describes the meaning of the icons:
ON/OFF
Too high pres-
sure/temperature in
the cooling circuit
continued
Indicators
Fig. 4
Function
Icon
Power is on
The dehumidifier is automatically
put out of operation due to a tem-
perature over 60 °C/140 °F to pro-
tect the compressor.
The dehumidifier will automatically
operate again after 30 min. The red
lamp illuminates during the 30 min.
to indicate an error has occurred
Illuminates when...
