Sommaire des Matières pour PDP Flaier Evolution FEP3

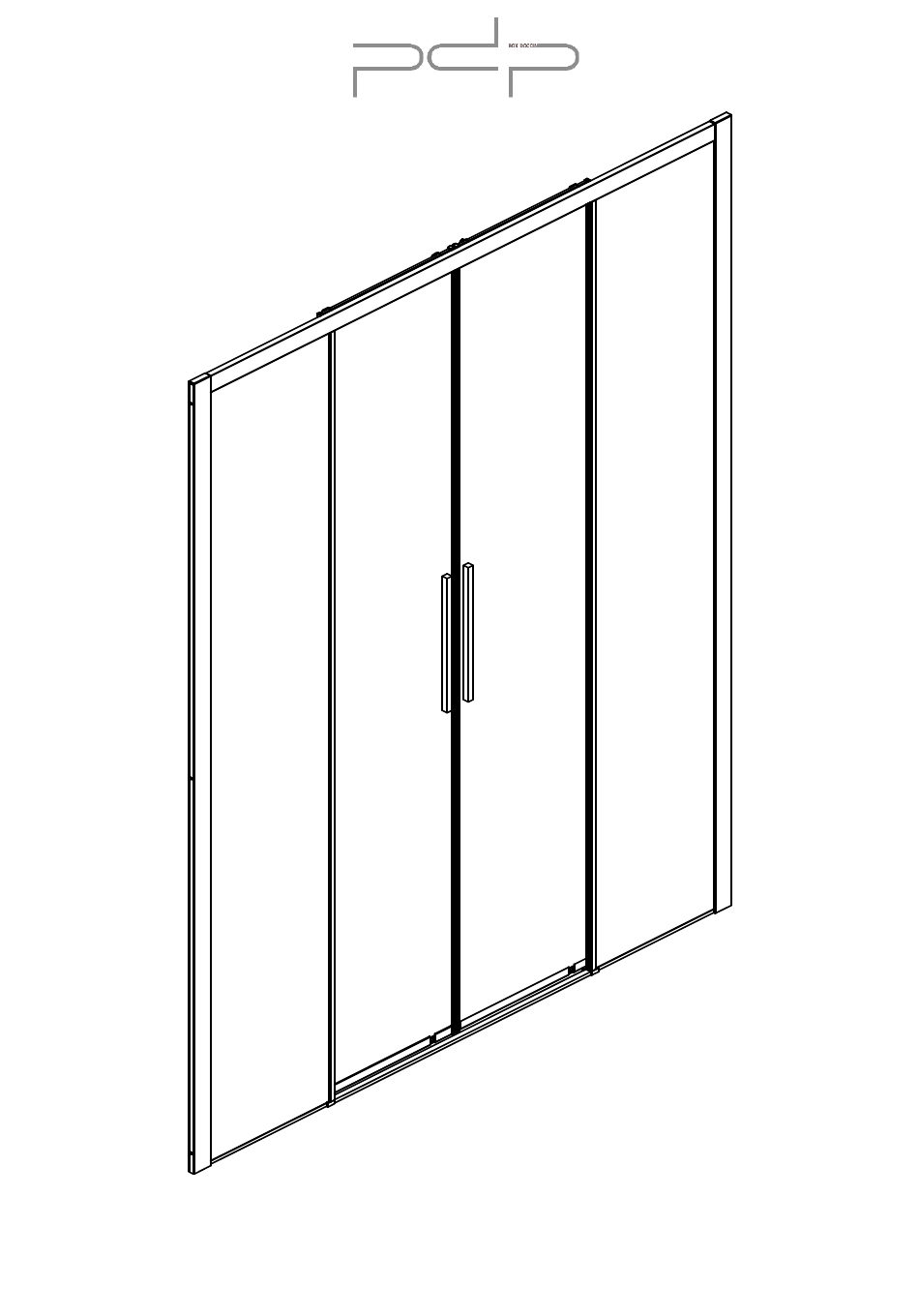

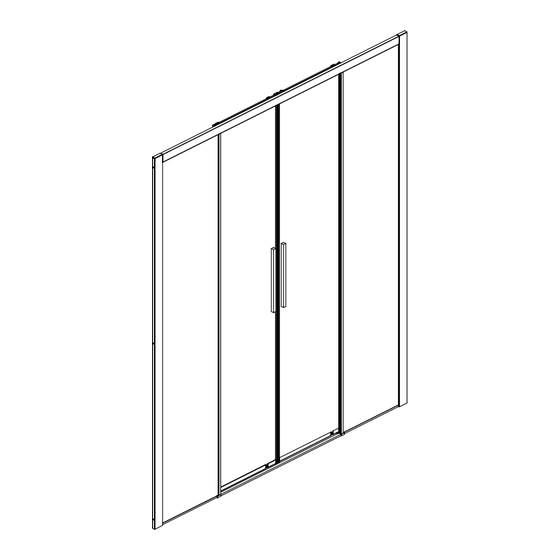

- Page 1 Flaier Evolution FEP3...
- Page 2 Fissaggio del profilo al muro. Profile fixing into the wall. Ø 6 3,9x32 TC+ Inserimento dei lati fissi nei profili a muro. Insertion of the fixed panels in the wall profiles.
- Page 3 Fissaggio della barra orizzontale. Fixing of the top horizontal profile. M5 x 5 EI Fissaggio della cabina. Vista interna. Internal view. Fixing of the box. Ø 3 3,5X9,5 TC Vista interna. Internal view.
- Page 4 Inserimento e regolazione delle ante scorrevoli. Fixing and adjustement of the sliding doors. Vista interna. Internal view. Vista interna. Internal view.
- Page 5 Regolazione del fermo porta. Door stop mounting. Vista interna. Internal view. Handle assembly. Montaggio della maniglia. MANIGLIA INTERNA MANIGLIA ESTERNA INTERNAL HANDLE EXTERNAL HANDLE...
- Page 6 Siliconatura: !ATTENZIONE! Non usare acqua nè aprire le ante per 24 ore. Silicon sealing: !ATTENTION! Do not use water and do not open the doors for 24 hours.
- Page 7 IT - UNA CORRETTA TENUTA DELL'ACQUA E' CONSEGUENZA DI UN UTILIZZO APPROPRIATO EN - THE PROPER USE OF YOUR SHOWER ENCLOSURE GUARANTEES ITS FUNCTIONALITY AND THE WATER TIGHTNESS...
- Page 8 PDP will not accept complaints on products which have already been fitted. The fixing kits provided with a PDP shower cabin are suitable for cement and/or brick walls. For walls raised with other kinds of materials (i.e. wallboard), proper fixing elements should be used.
