Over-tightening any and/or all screws will cause cracks around mounting holes which is not covered by any
To prevent any parts failure during installation and/or removal, the upper windshield must ALWAYS be
properly supported by TWO people, one on each side, with one hand located on the lower edge and the other
One person alone CANNOT install and/or remove the upper windshield without over-flexing and stressing
the material. This action may cause breakage and/or cracks to the windshield.

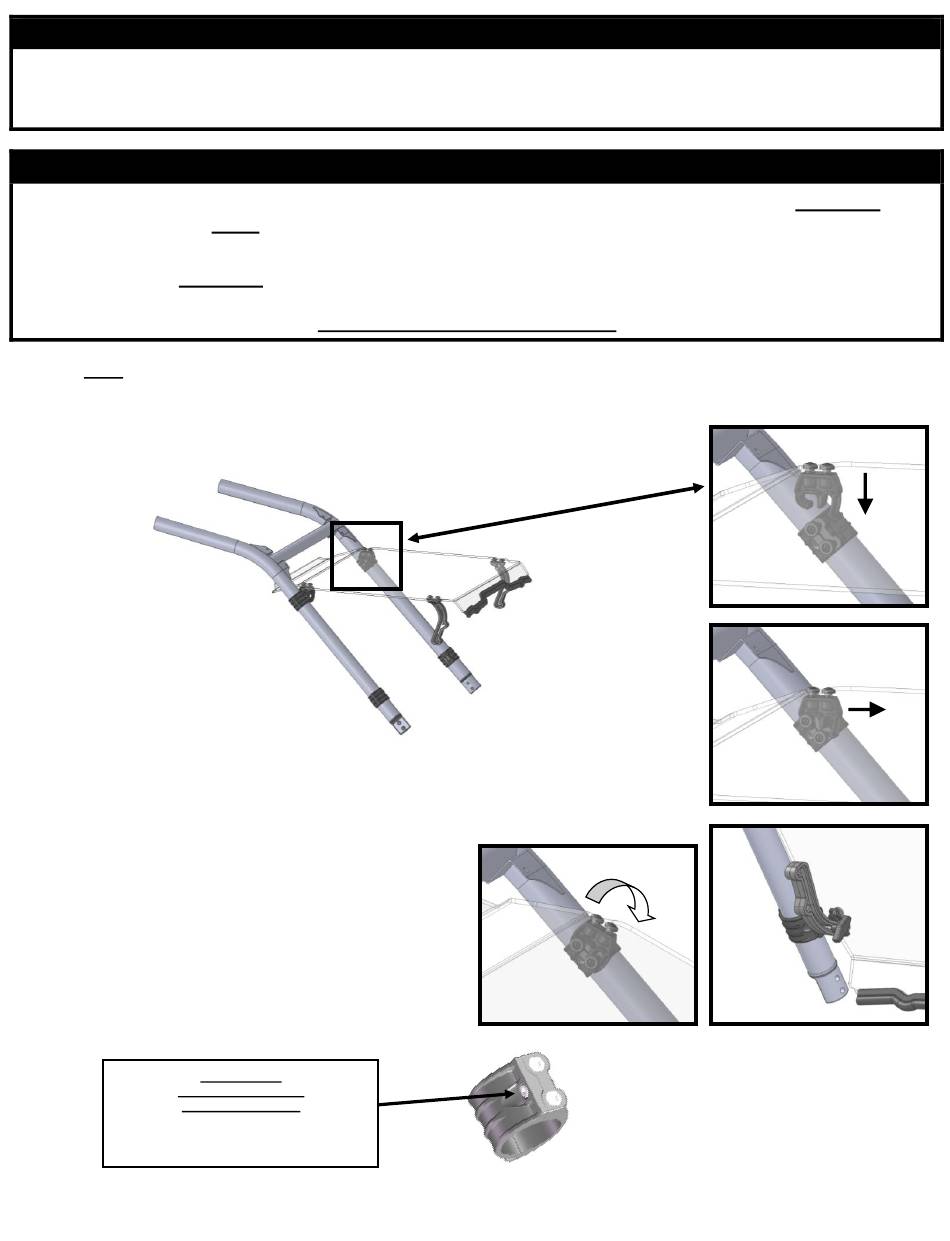

d) With TWO people, install the windshield to the vehicle by following instructions below.
1.
Make sure that both upper clamps are at the same height.
2.
Hold the windshield horizontally and slide it down by ensuring that both upper pivot
cylinder adaptors are going through the upper pivot as per drawing #1.
3.
Gently pull on the windshield as per drawing #2 towards the front of the vehicle for the
upper pivot to slide to the end onto the upper pivot cylinder adaptor.
4.
Lower the windshield as per drawing #3 and the upper pivot will catch the second upper
pivot cylinder adaptor.
5.
Adjust the height of the upper clamp first by ensuring
the overall leveling.
6.
Tighten all screws regarding the upper pivot.
7.
Adjust the height of the clamp to the lower pivot and
slide arm and use "T" knob to lock in place. Drawing
#4 shows the position you should have when
windshield is closed.
8.
Tighten all remaining screws and nuts.
Torque specification
Max. 5 foot-pounds
Applicable to all Clamp screws M6 x 20
(If torque tools are not available, stop tightening as
soon as both male and female clamp parts touch as
per picture beside.)
RZRPROWS1000 - Instructions POLARIS RZR PRO XP Full Tilt Windshield - rev00
IMPORTANT NOTICES
Torque specifications must be followed when tightening bolts.
IMPORTANT NOTICES
This is not covered by any warranty.
IMPORTANT:
warranty.
by the upper pivot.
Drawing #3
Drawing #4
www.direction2.com
Drawing #1
Drawing #2
