INSTALLATION INSTRUCTIONS
LBSE-EM – LiteBox® Edge-Lit EM Battery Pack Accessory

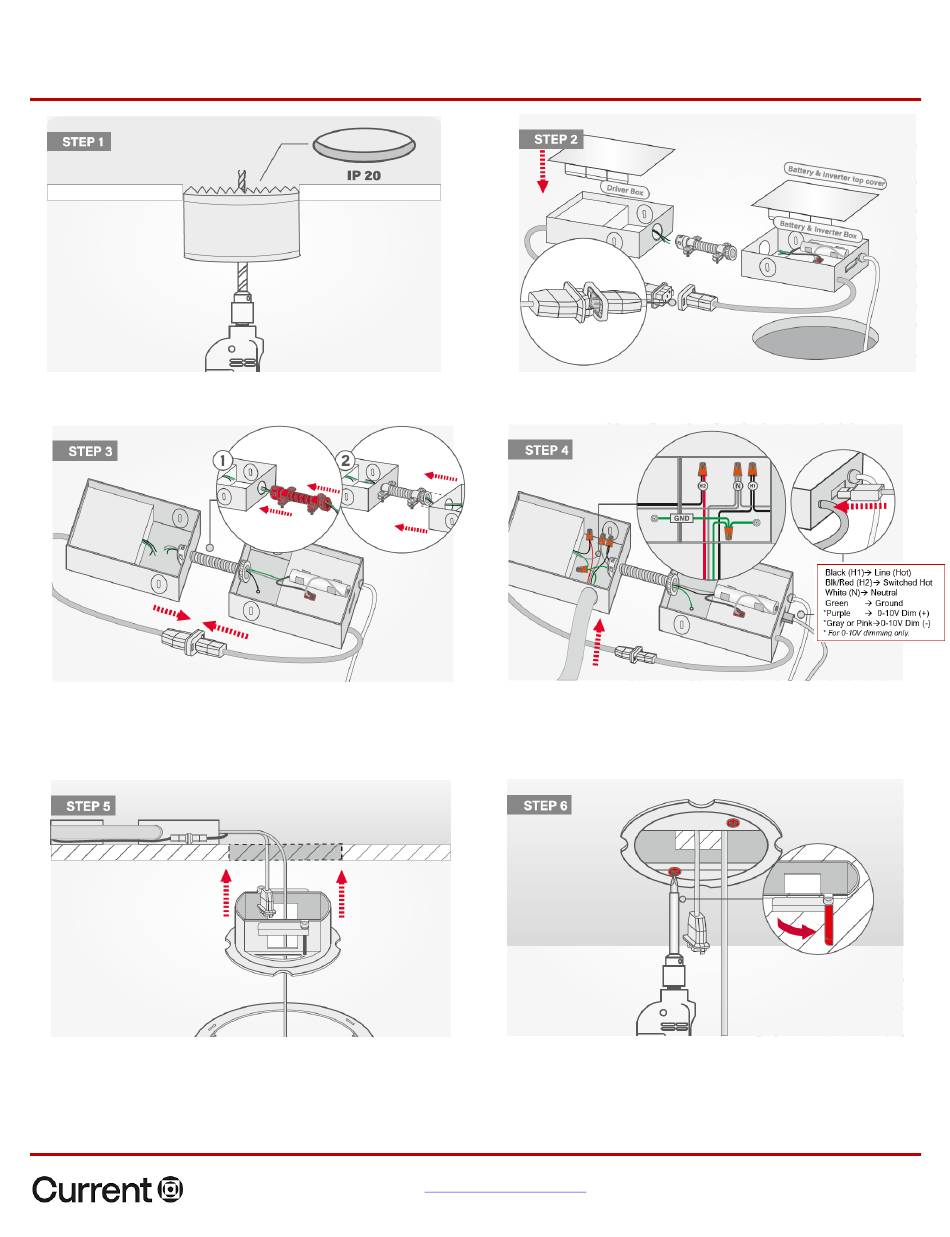

Drill a 3.50" hole using a hole saw.
Connect the Driver Box to the Inverter Box using the
supplied conduit and connectors.
Place Driver Box and Inverter Box into ceiling plenum and
install remodel sleeve into hole as shown.
Note: Keyholes on the Driver and Inverter Box can be used to
attach to joist or plenum substrate if required by local codes.
Connect the male plug from the Driver Box to the female
plug from the Inverter Box.
Pass wiring from Inverter Box through conduit into Driver Box.
Connect battery and make electrical connections using
supplied wire nuts and securely close both Driver Box and
Inverter Box. Connect cable from EM Trim Ring to Inverter Box.
Tighten screws until mounting wings extend and the bottom
flange of the sleeve is tight to the ceiling surface. For
Square Apertures: Orient flat sides of the sleeve with wall
for proper alignment.
© 2022 HLI Solutions, Inc. All rights reserved.
currentlighting.com/Prescolite
Technical Support: 888.777.4832
Part No. ....93131014
Rev A
Page 2 of 8
