INSTALLATION INSTRUCTIONS - WGH2/3
WARNING! Fixtures must be grounded and installed in accordance with the National Electrical Code and all local codes. Failure to do so may increase the RISK OF PERSONAL
INJURY, PROPERTY DAMAGE, FIRE AND DEATH. Install and use so fixture failures do not cause a hazard and use only in environments for which the product is specifically
marked.
WARNING! This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. Thoroughly wash hands after
installing, handling, cleaning, or otherwise touching this product.
CAUTION! Follow ALL luminaire recommendations, product markings, instructions, restrictions and warnings regarding lumninaire operation and burning position. Luminaire label
shows electrical and environmental requirements and restrictions.
All electrical work must be done by a qualified electrician.
Turn off electric power to all affected circuits and allow to cool before servicing.
A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally
sufficient for the optical system. Any accumulation of dust or dirt should be removed regularly.
Carefully read these instructions before installing product. If you do not understand these instructions, before starting any work, contact your Lighting distributor or
lightingtechsupport@currentlighting.com or (864) 678-1000
Give instructions to facility owner/manager for future reference.
TOOLS REQUIRED: (NOT INCLUDED) ANY TOOLS NEEDED FOR APPROPRIATE WALL FASTENERS, PHILIPS HEAD SCREW DRIVER, PLIERS
PARTS REQUIRED: (NOT INCLUDED) SILICONE CAULK, WALL ANCHORS AND FASTENERS APPROPRIATE FOR WALL CONSTRUCTION TYPE

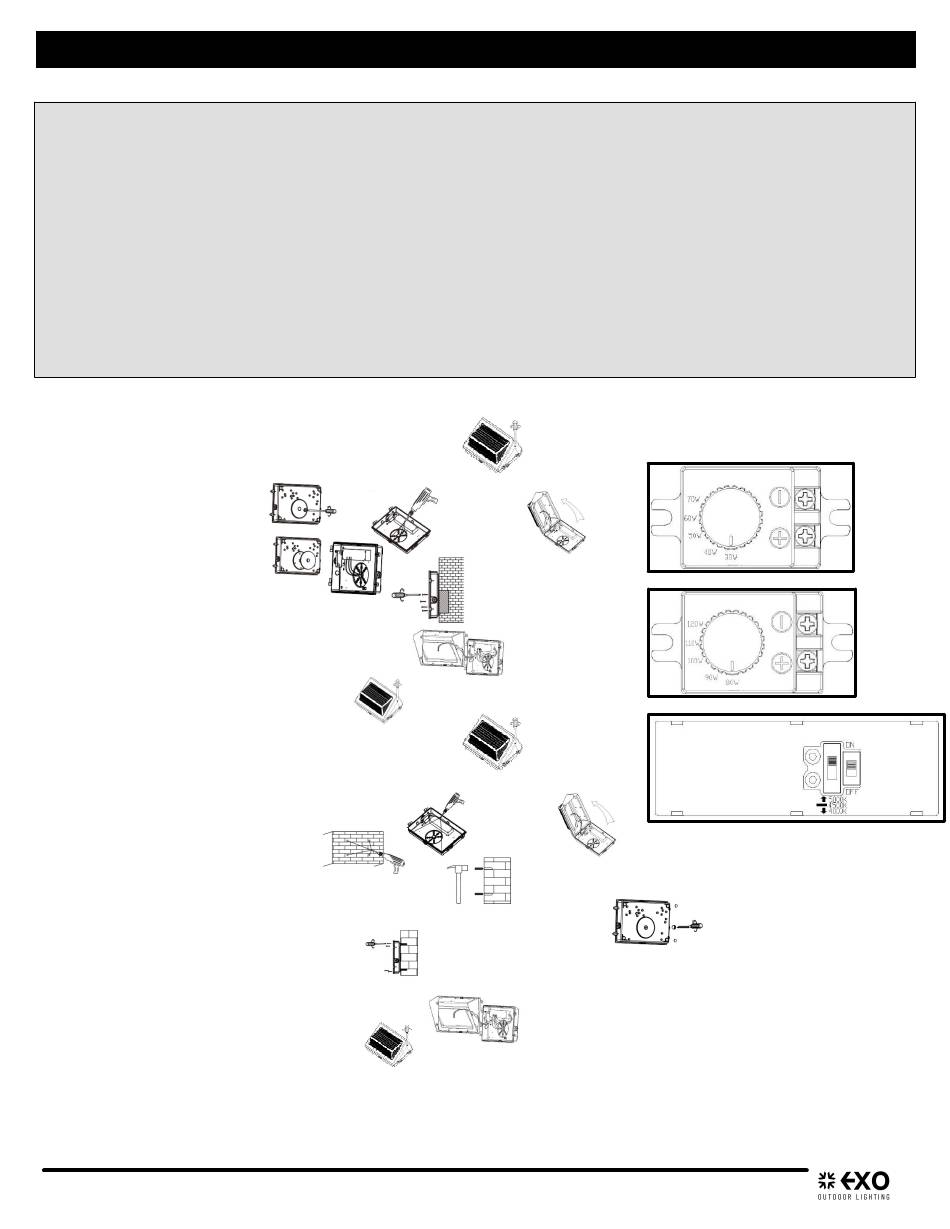

FIXTURE MOUNTING WITH JUNCTION BOX
1. USE A SCREWDRIVER TO REMOVE THE SCREWS ON BOTH SIDES OF THE FIXTURE.
2. OPEN THE FIXTURE, PULL OUT THE CONNECTION TERMINALS, AND REMOVE THE UPPER COVER OF THE FIXTURE.
3. USE A SCREWDRIVER TO REMOVE THE PLUG.
4. DRILL THROUGH THE MOUNTING HOLE WITH AN ELECTRICAL DRILL.
5. ATTACH EVA COTTON PAD TO BOTTOM SHELL.
6. THREAD THE WIRE THROUGH THE BOTTOM HOLE.
7. LOCK THE BOTTOM SHELL ON THE MOUNTING SURFACE WITH SCREWS.
8. CONNECT THE LINE, NEUTRAL, AND GROUD WIRES TO THE LED DRIVER.
9. INSTALL THE COVER OF THE FIXTURE AND CONNECT THE TERMINAL BLOCK.
10. CLOSE THE FIXTURE AND TIGHTEN DOWN HOUSING SCREWS.
FIXTURE MOUNTING WITH CONDUIT
USE A SCREWDRIVER TO REMOVE THE SCREWS ON BOTH SIDES OF THE FIXTURE.
1.
2. OPEN THE FIXTURE, PULL OUT THE CONNECTION TERMINALS, AND REMOVE THE UPPER COVER OF THE FIXTURE.
3. DRILL THROUGH THE MOUNTING HOLE WITH AN ELECTRIC DRILL.
4. DRILL HOLE IN THE WALL WITH AN ELECTRICAL DRILL.
5. PUSH THE EXPANSION RUBBER PLUG INTO THE MOUNTING HOLE ON THE WALL.
6. USE A SCREWDRIVER TO REMOVE THE SIDE PLUG AND ATTACH THE EVA COTTON PAD TO THE MOUNTING HOLE.
7. ATTACH FIXTURE TO THE MOUNTING SURFACE USING SCREWS.
8. CONNECT THE LINE, NEUTRAL, AND GROUD WIRES TO THE LED DRIVER.
9. INSTALL THE COVER OF THE FIXTURE AND CONNECT THE TERMINAL BLOCK.
10. CLOSE THE FIXTURE AND TIGHTEN DOWN HOUSING SCREWS.
MOUNTING NOTE: IF JUNCTION BOX IS NOT USED, IT IS RECOMMENDED THAT THE MOUNTING PLATE IS ATTACHED TO A
NON-COMBUSTABLE MOUNTING SURFACE. AVOID DRILLING CLOSE TO LIVE WIRES AND MAKE SURE THAT THERE IS AT
LEAST 1/2" CLEARANCE. THIS FIXTURE IS INTENDED FOR MOUNTING ON WEATHERPROOF JUNCTION BOX WITH PROVIDED
GASKET. AFTER INSTALLATION, USE SILICONE SEALANT TO CREATE A WEATHERPROOF SEAL BETWEEN THE MOUNTING
SURFACE AND THE BASE OF THE FIXTURE.
