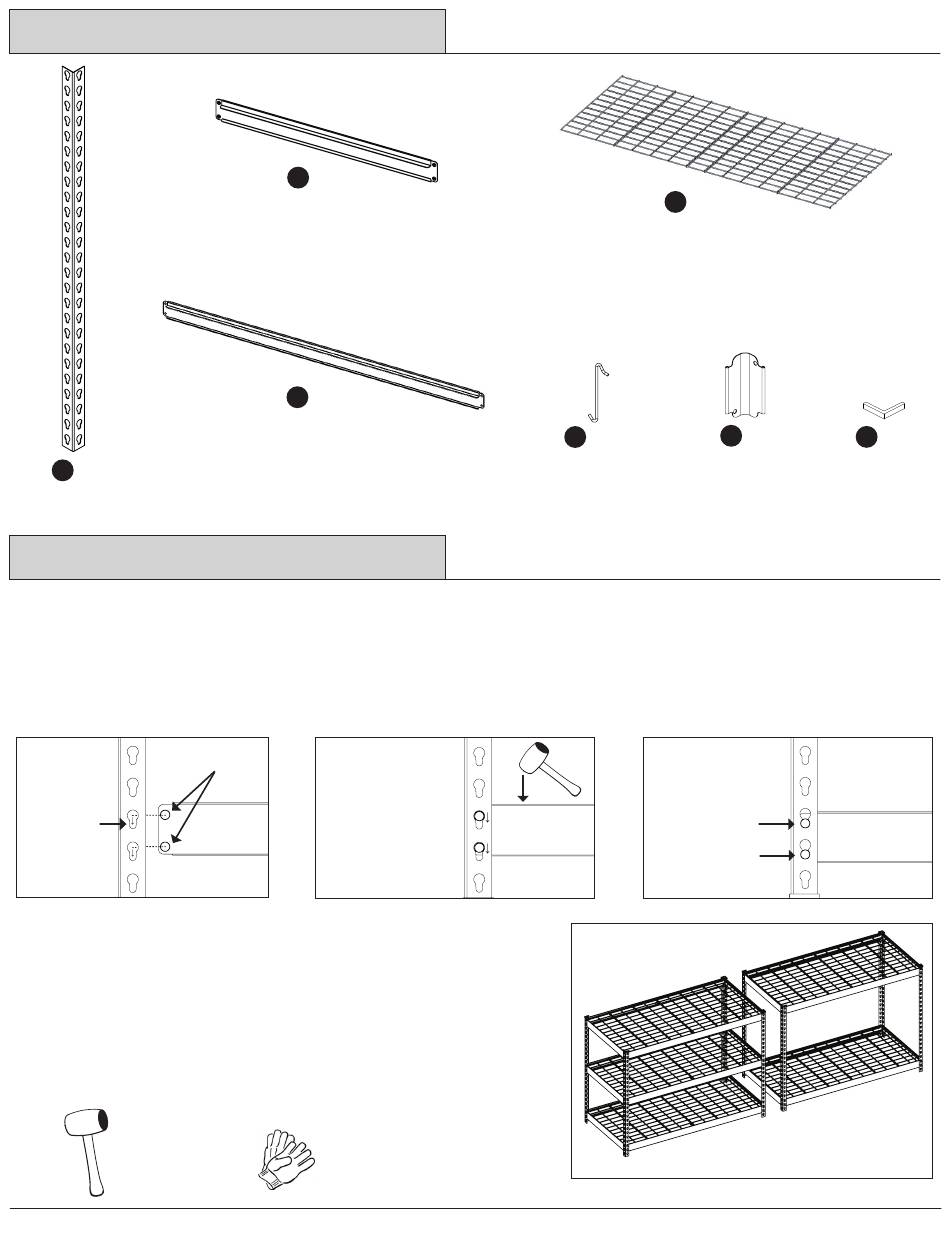

Parts List
A
x8
Post
#URPS36-BLK
Preparation
Before beginning assembly, read though the instructions and make sure all parts are present. Assembly of this unit is done by fitting the two
rivets of the braces (B) and beams (C) into the keyhole slots of the post (A). The narrow end of the keyhole slots from the post must face down
(see FIG.1). Braces and beams must be installed with the longer ledge facing up on the inside. Assemble the unit from bottom to top. It is
recommended that the bottom shelf assembly be installed into the second keyhole slots at the bottom of the posts and the top shelf assembly
should be installed into the first keyhole slots at the top top of the posts. The middle shelves should be evenly spaced. A rubber mallet may
be used to tap down on the top of the braces and beams to properly seat the rivets down into the narrow end of the keyhole slots (see FIG.
2 and FIG. 3). A visual inspection should be made to ensure that the rivets are properly engaged into the keyhole slots.
FIG. 1
A
Narrow end
of slots face
down
ALTERNATE ASSEMBLY
This unit can also be assembled as two separate 36 in. high units (see FIG. 4).
One unit will have three shelves and the other will have two shelves. If choosing
this option, follow assembly steps 2, 3, 4, 5, 6 and 10 until all shelf levels are
completed for both units. Note: Use all 8 of Post Caps (G) in final step 10. Inside
Post Connectors (F) are not used for this setup.
HELPFUL TOOLS/ITEMS FOR ASSEMBLY (NOT INCLUDED):
Rubber Mallet
B
x10
Brace
#TRBR24-BLK
C
x10
Beam
#TRBM48-BLK
FIG. 2
Rivets
Use a rubber mallet
to lightly tap down
on Brace / Beam to
seat the rivets down
into the narrow end
B & C
of the post slots.
Gloves
D
x5
Wire Deck
#2448W
E
x10
Support Hook
Inside Post Connector
#MR-WIRECLIP-10
#CPIN-BLK
FIG. 3
Rivets properly
seated into the
narrow end of
post slots.
FIG. 4
F
G
x4
x8
Post Cap
#RL-PC-B1
✓
Alternate Assembly:
Two 36 in. high units.
E
