Schéma-Bloc/ Synoptique - Pulsar BLUE POWER PSBS 10A12C Mode D'emploi

Alimentation secourue á découpage avec sorties
Table des Matières

Publicité

www.pulsar.pl
1. Alimentation secourue PSBS 13,8V/module relais MPSBS/17Ah
- PSBS 10A12C + MPSBS + 17Ah
2. Alimentation secourue PSBS 13,8V/16x0,5A/17Ah
- PSBS 10A12C + 2xLB8 16x0,5A (AWZ578, AWZ580) + 17Ah
3. Alimentation secourue PSBS 13,8V/10x1A/17Ah
- PSBS 10A12C + LB8 8x1A (AWZ579 ou AWZ580) + LB2 2x1A (AWZ585 ou AWZ586) + 17Ah
4. Alimentation secourue PSBS 13,8V/8x1A/MPSBS/17Ah
- PSBS 10A12C + LB8 8x1A (AWZ579 ou AWZ580) + MPSBS + 17Ah
5. Alimentation secourue PSBS 13,8V/2x12V/2x5A/17Ah
- PSBS 10A12C + 2xRN500 (13,8V/12V) + 17Ah
6. Alimentation secourue PSBS 13,8V/12V/8x0,5A/MPSBS/17Ah
- PSBS 10A12C + RN500 (13,8V/12V) + LB8 8x0,5A (AWZ578 ou AWZ580) + MPSBS + 17Ah
7. Alimentation secourue PSBS 13,8V/2x5V÷7,4V/2x2A/17Ah
- PSBS 10A12C + 2xDCDC20 (5V÷7,4V/2x2A) + 17Ah

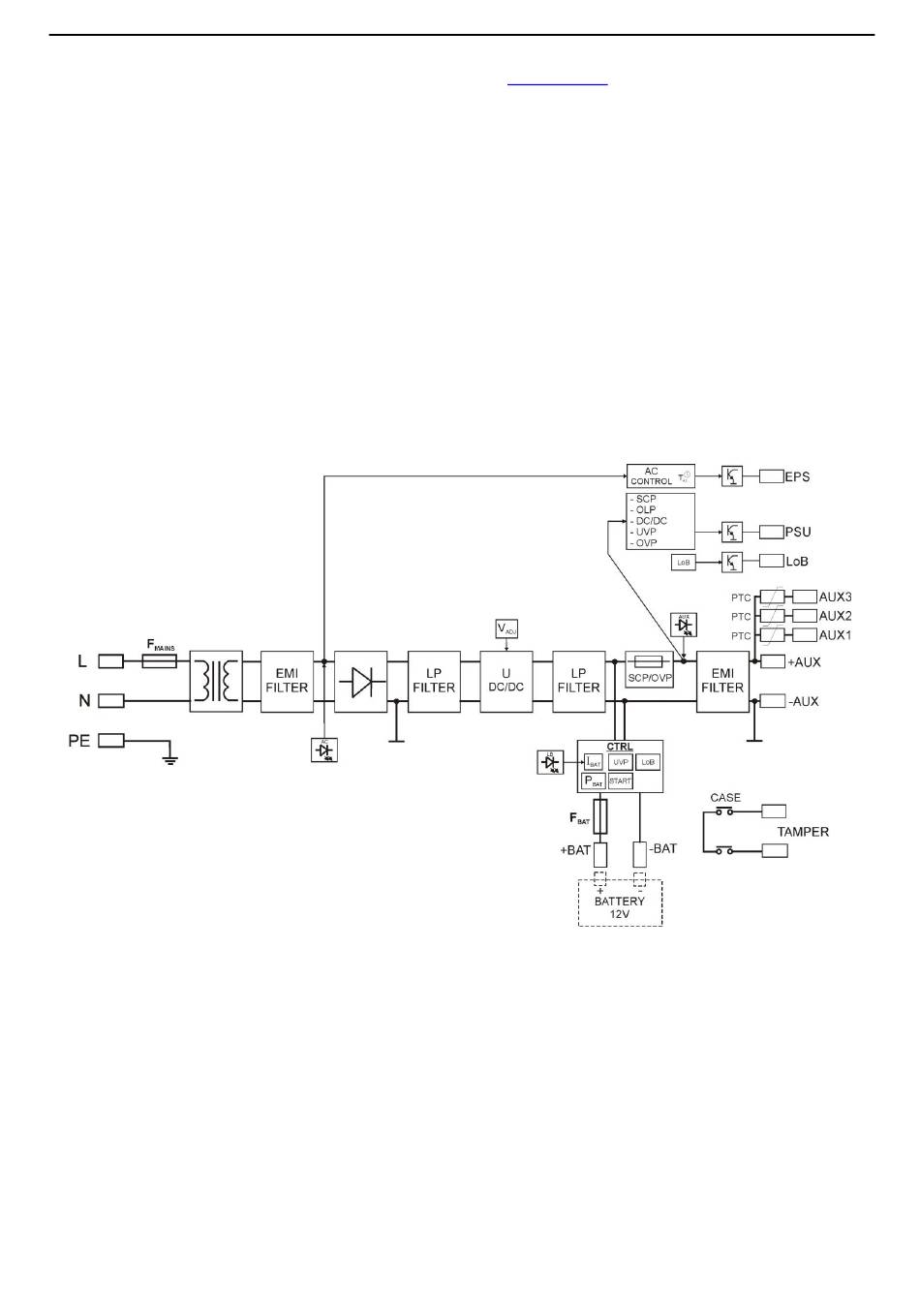

1.2 Schéma-bloc/ synoptique (croquis1).
PSBS10A12C
CONFIGURATIONS OPTIONNELLES DE L'APPAREIL:
(visualisation disponible sur www.pulsar.pl)
Croquis 1. Schéma-bloc de l'appareil.
