Assembly Diagram - REED RBIT1 Instructions

#04648 CPBDKIT DEWALT
1. Remove the battery from the grinder before any
work is to be done on the grinder.
2. Remove wax protective coating on the new router bit.
The router bit is not supplied with CPBD beveler adapter
and must be purchased separately.
3. Place the router bit into the grinder collet and slide the
bit down until it stops (bottoms out) and hand tighten the
collet.
4. Next, raise the bit up until the unfinished shaft is just
visible above the collet. Tighten the collet with the
wrenches provided with the grinder with the grinder.
FIRMLY TIGHTEN THE COLLET to prevent the router
bit from coming loose while operating and causing
damage or injury.
5. Place the beveler attachment #04648 onto the grinder
with the Adjusting Knob in line with the grinder's on/off
switch as shown in the Assembly Diagram 1. The rib on
the grinder handle must fit into the groove in the CPBD
Adapter.
6. Loosen the adjusting screw and slide the guide plate
assembly to the lowest position. Push down on the CPB
Adapter with a rocking motion until the top of the guide
plate is in line with the bottom of the Router Bit.
7. Slide the guide plate assembly up and tighten the clamp
screw on the adapter.
8. Adjust the guide plate to the desired length of bevel and
tighten the adjusting knob screw.
2

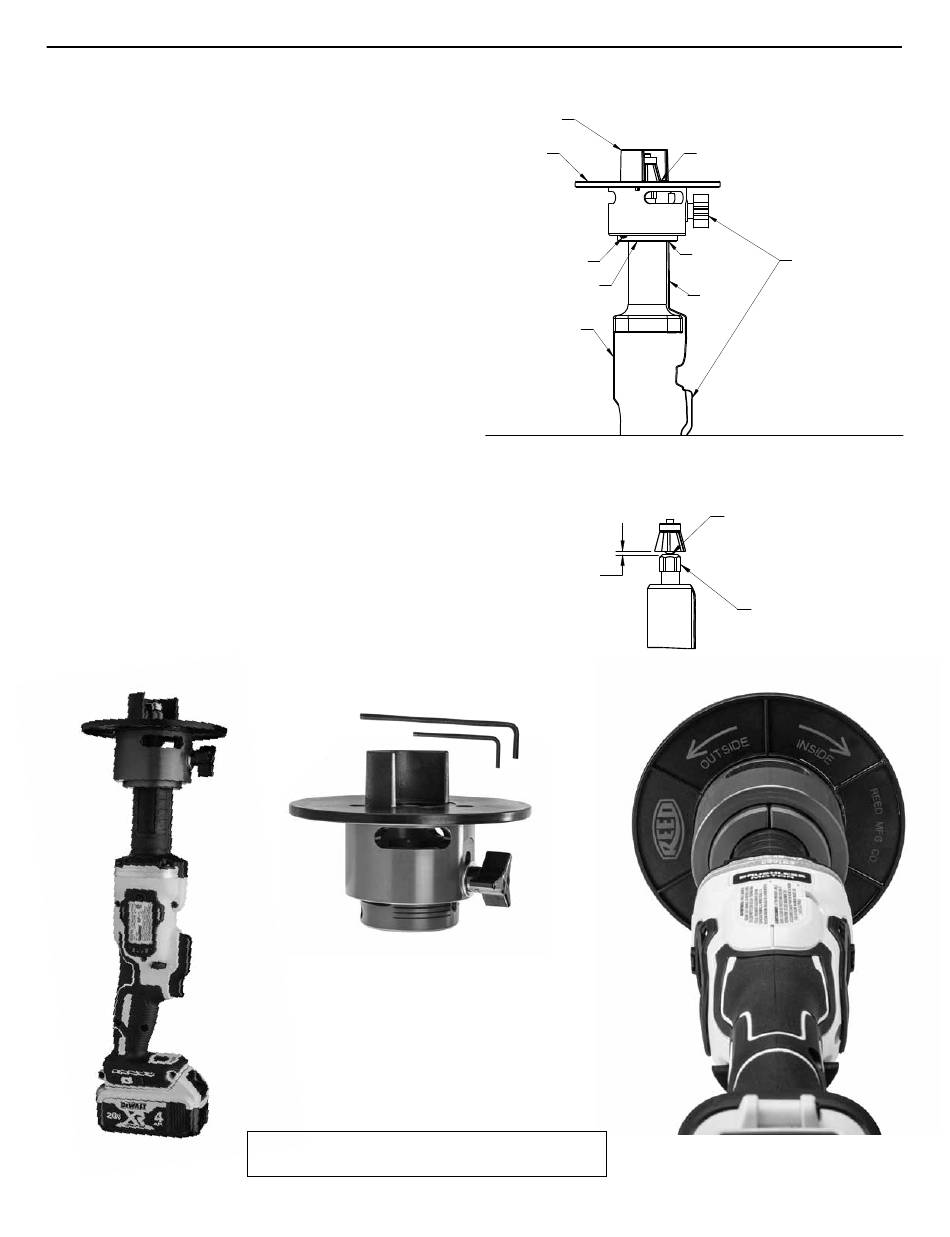

® ASSEMBLY:

ASSEMBLY DIAGRAM 1

SHROUD
GUIDE PLATE
ASSEMBLY
CLAMP SCREW
04648 CPBDKIT
DEWALT ADAPTER
DEWALT GRINDER
MODEL #DCG426B
® ®
DeWalt , Milwaukee and Bosch
and are not associated with Reed Manufacturing.
ASSEMBLY DIAGRAM 1
04648 ASSEMBLY DIAGRAM 1
SHROUD
GUIDE PLATE
ASSEMBLY
CLAMP SCREW
DEWALT ADAPTER
DEWALT GRINDER
MODEL #DCG426B
04648 ASSEMBLY DIAGRAM 2
ASSEMBLY DIAGRAM 2
1/8"
APPROXIMATE
GUIDE PLATE SHOULD BE FLUSH
WITH BOTTOM OF ROUTER BIT
ADJUSTING KNOB
MUST BE IN LINE WITH
GROOVE IN
ON/OFF SWITCH
CPB ADAPTER
AS SHOWN
RIB ON
HANDLE
®
are registered trademarks
GUIDE PLATE SHOULD BE FLUSH
WITH BOTTOM OF ROUTER BIT
ADJUSTING KNOB
MUST BE IN LINE WITH
GROOVE IN
ON/OFF SWITCH
CPB ADAPTER
AS SHOWN
RIB ON
HANDLE
LOCATE ROUTER BIT SO
THE UNFINISHED AREA ON THE
SHAT IS JUST ABOVE
TOP OF COLLET
COLLET
4
4 REFERENCE LINES
1/8" INCREMENTS
04648 - CPBDKIT Plate (DeWalt)
FOR ADJUSTING
THE BEVEL SIZE
0520-54654
COLLE
4 REFER
1/8" IN
FOR
THE
OPERA
1/8"
