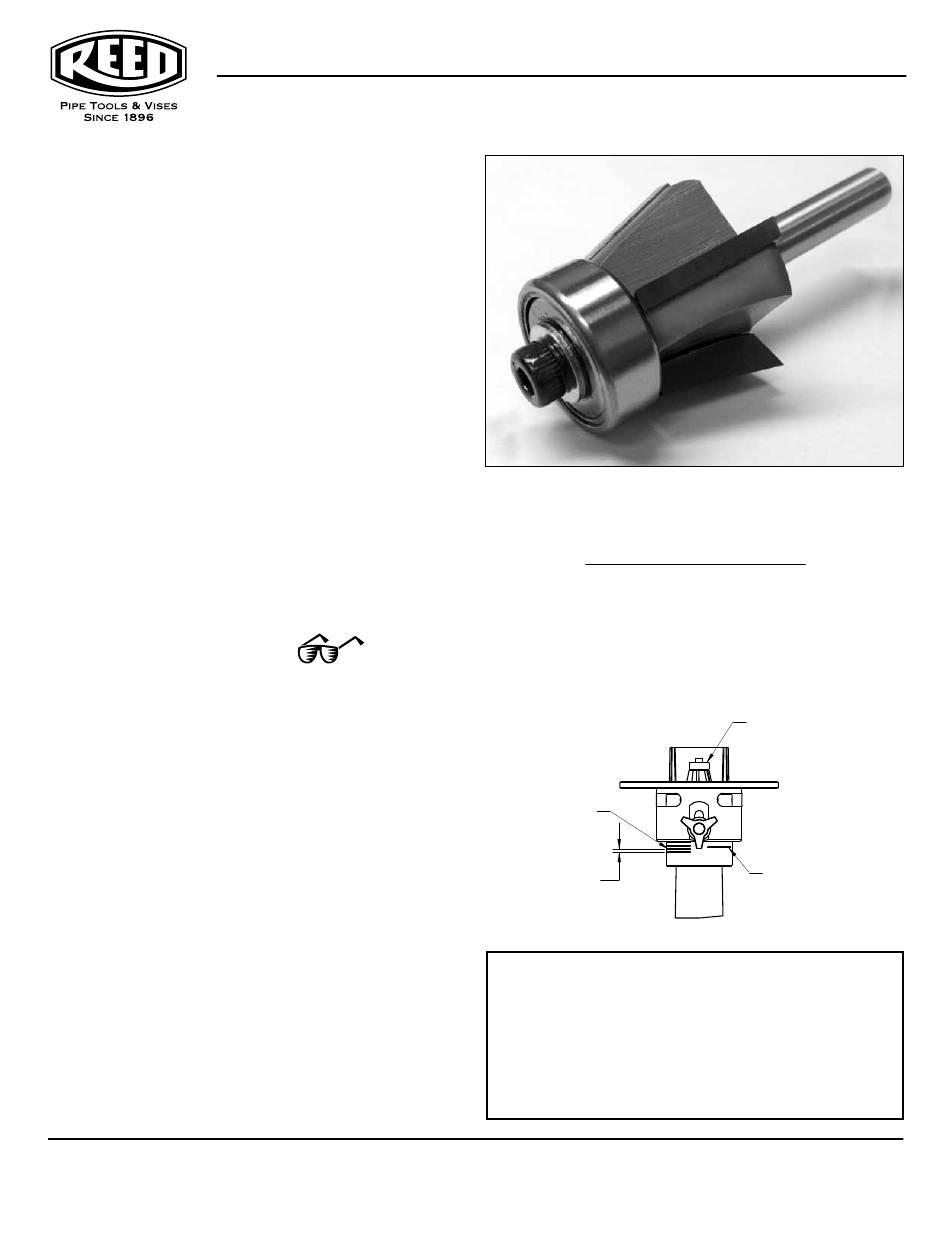

REED RBIT1 Instructions

Reed's Cordless Portable Pipe Beveler (CPB)
is designed for use with a cordless die grinder to
bevel the outside diameter and/or inside diameter
of plastic pipe. The CPBDKIT and CPBMKIT
beveler adapters are designed for use ONLY with a
DeWalt / Milwaukee
®
NOTE: Internal shroud CPBIDS #94644 must
used for beveling the inside diameters and is
available as an accessory.
ASSEMBLY DIAGRAM 1
PERSONAL SAFETY
SHROUD
1. Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use tool
GUIDE PLATE
while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
USTING KNOB
T BE LOCATED
FROM SWITCH
3. Always wear eye protection.
AS SHOWN
OPERATING INSTRUCTIONS:
This tool is to be used on plastic pipe only. To adjust depth
MILWAUKEE GRINDER
of chamfer, loosen the adjusting knob and slide the guide
MODEL #2784-20
plate up or down until the required amount of the router bit
is exposed above the guide plate and tighten the adjusting
knob. To the left side of the Adjusting Knob there are four
engraved lines on Adapter with 1/8" increments. When
using the RBIT1 bit with the Adjusting Ring all the way to the
bottom, the beveler will cut a 5/8" long bevel. By lining up
the bottom of the Adjusting Ring with the engraved line, the
length of the bevel is reduced by 1/8" for each line.
If the grinder is capable of multiple speeds, set the
grinder to the fastest setting. Turn on grinder and place
guide plate flat against the end of pipe. Slowly bring the
router bit against edge of pipe until the bearing at the end
of the bit is contacting the pipe. Slowly rotate the beveler
counterclockwise for an OD bevel and clockwise for an ID
bevel, being sure to keep the bearing in contact with pipe.
A second quick pass around the pipe may be needed if the
bevel is not smooth. An uneven bevel can happen if the
guide plate is not kept perpendicular to the pipe and the
bearing on the router bit is not kept against the pipe.
1425 West 8th St.
0520-54654
Adapting to DeWalt
cordless die grinder.
®
GUIDE PLATE
SHOULD BE FLUSH
WITH BOTTOM OF
ROUTER BIT
CLAMP SCREW
MILWAUKEE
ADAPTER
P.O. Box 1321, Erie, PA 16512 USA
Instructions for Beveler Adapter for CPB
®
OPERATING INSTRUCTIONS RBIT2
(1" BIT) ONLY:
The RBIT2 (1" bit) removes a large amount of material.
Therefore, it is STRONGLY RECOMMENDED when cutting
a ¾" to 1" depth bevel to make two passes around the pipe,
removing half of the material with each pass. For the first
pass set the Adjusting Ring so it lines up with the engraved
line to the right of the Adjusting Screw and make the first
pass around the pipe. To complete the bevel, readjust the
Adjusting Ring to remove the remainder of the material.
OPERATING DIAGRAM
4 REFERENCE LINES
1/8" INCREMENTS
FOR ADJUSTING
THE BEVEL SIZE
REED CPBDKIT fits DeWalt
MAX XR Lithium-Ion Cordless Brushless Variable
Speed Die Grinder
REED CPBMKIT fits Milwaukee
and 2784-22 M18 FUEL™ 18V Lithium-Ion Brushless
Cordless 1/4 in. Die Grinder
DeWalt ®
Reed Manufacturing.
REED MANUFACTURING
Phone: 800-666-3691 or +1-814-452-3691 Fax: 800-456-1697 or +1-814-455-1697
www.reedmfgco.com
and Milwaukee
1/8"
APPROXIMATE
OPERATING DIAGRAM
1/8"
® model DCG426B 20V
and Milwaukee ® are registered trademarks that are not associated with
Die Grinders
®
ASSEMBLY DIAGRAM 2
COLLET
RBIT1
RBIT2
RECOMMENDED:
SET HEIGHT TO THIS LINE
FOR REMOVING HALF THE
MATERIAL FOR FIRST PASS
ON LARGER BEVEL
WHEN USING RBIT2
®
models 2784 20
