ReVent RVSH90 Guide D'installation page 22

WIRE
NUT
Qty:4
wall
enclosure

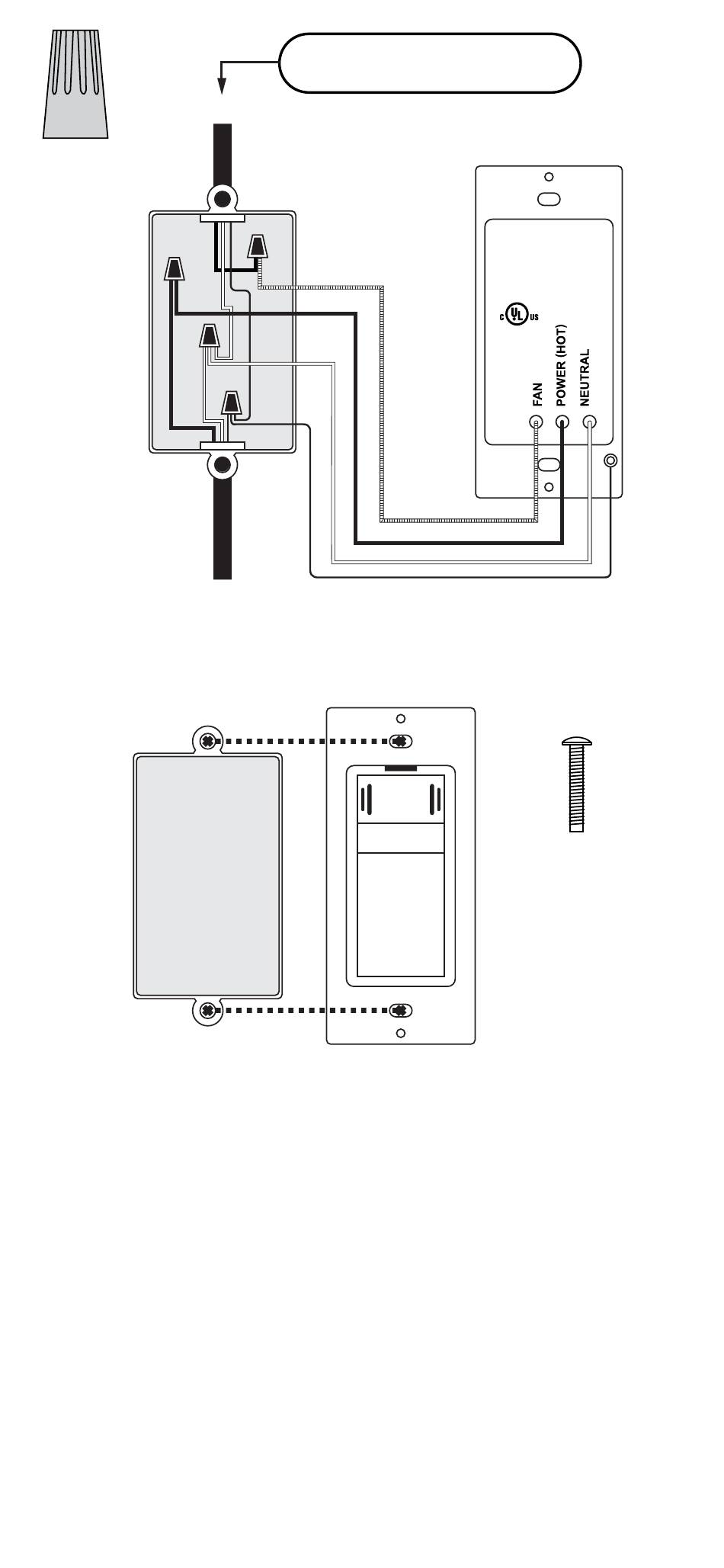

4.) Tuck wires into wall enclosure and fasten the CONTROL to the wall enclosure
with the two screws provided.
connect same power to light if
power to fan
120V line AC
fan and light work together
21
CONTROL
ReVent ® FS-350-W6
product of GTR Technologies Inc.
USA Patent No. US 9,360,228 B2. Other
USA and international patents pending.
Electrical Input: 120 volts @ 60Hz
Maximum Fan Load: 6 Amps
Must Be Mounted Inside A Code
Approved Electrical Outlet Box
LISTED 3PF2
Made In China
ground
MOUNTING
SCREW
Qty:2
