Operating Instructions
MaxLite LED Double-Ended T8 Linear Retrofit Lamps
®
1.
Make sure the circuit breaker that supplies the power to the
fixture is turned off.
2.
Remove lens or diffuser cover (if applicable) and
existing fluorescent lamps.
3.
Open/Remove ballast wiring compartment cover.
4.
Identify the line and neutral wires running from the breaker box
to the ballast and confirm the power is off using a voltmeter.
5.
Cut all wires connected to ballast, and remove ballast (and starter
if present). Dispose of removed ballast and fluorescent lamps in
accordance with government regulations in your area.
6.
MaxLite LED T8 lamps are designed for double-ended
connections only (Figure 1).
7.
Wire using appropriate wiring diagram. (Figure 2, 3, 4).
8.
Reinstall the ballast cover to hide all wires.
9.
Install your new MaxLite LED T8 replacement lamps.
10.
Apply Relamping Label on a visible location inside the fixture.
11.
Reinstall lens or diffusion cover on the light fixture.
12.
Turn power on at the breaker box.
13.
Turn on the lights.
© Copyright 2017. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com
LED Double-Ended Bypass Linear Series: 2FT, 3FT, 4FT

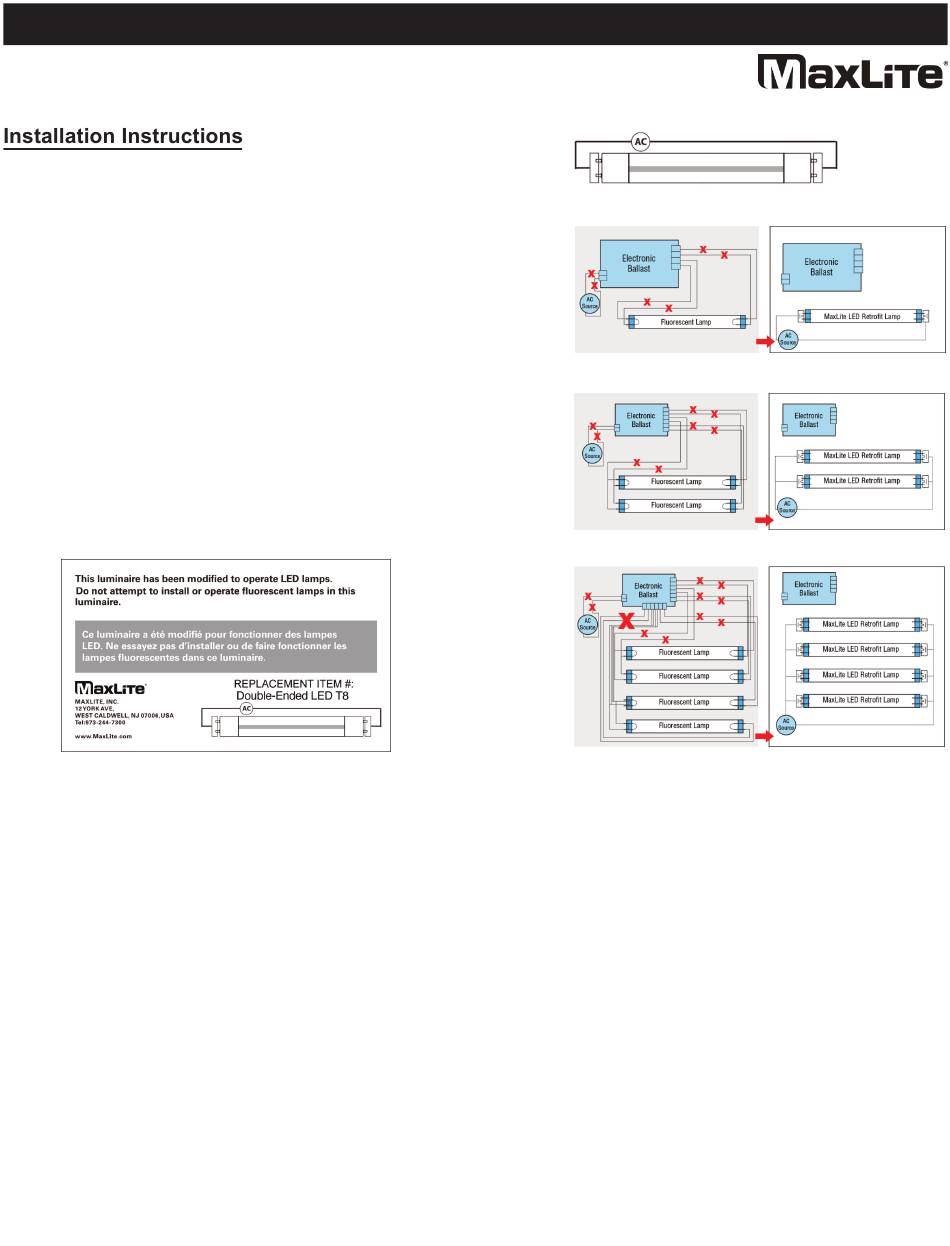

Figure 1. - Double-Ended connection
Figure 2. - Retrofit with One Lamp
Figure 3. - Retrofit with Two Lamps
Figure 4. - Retrofit with Three/Four Lamps
Page: 2
REV: 7/24/17
