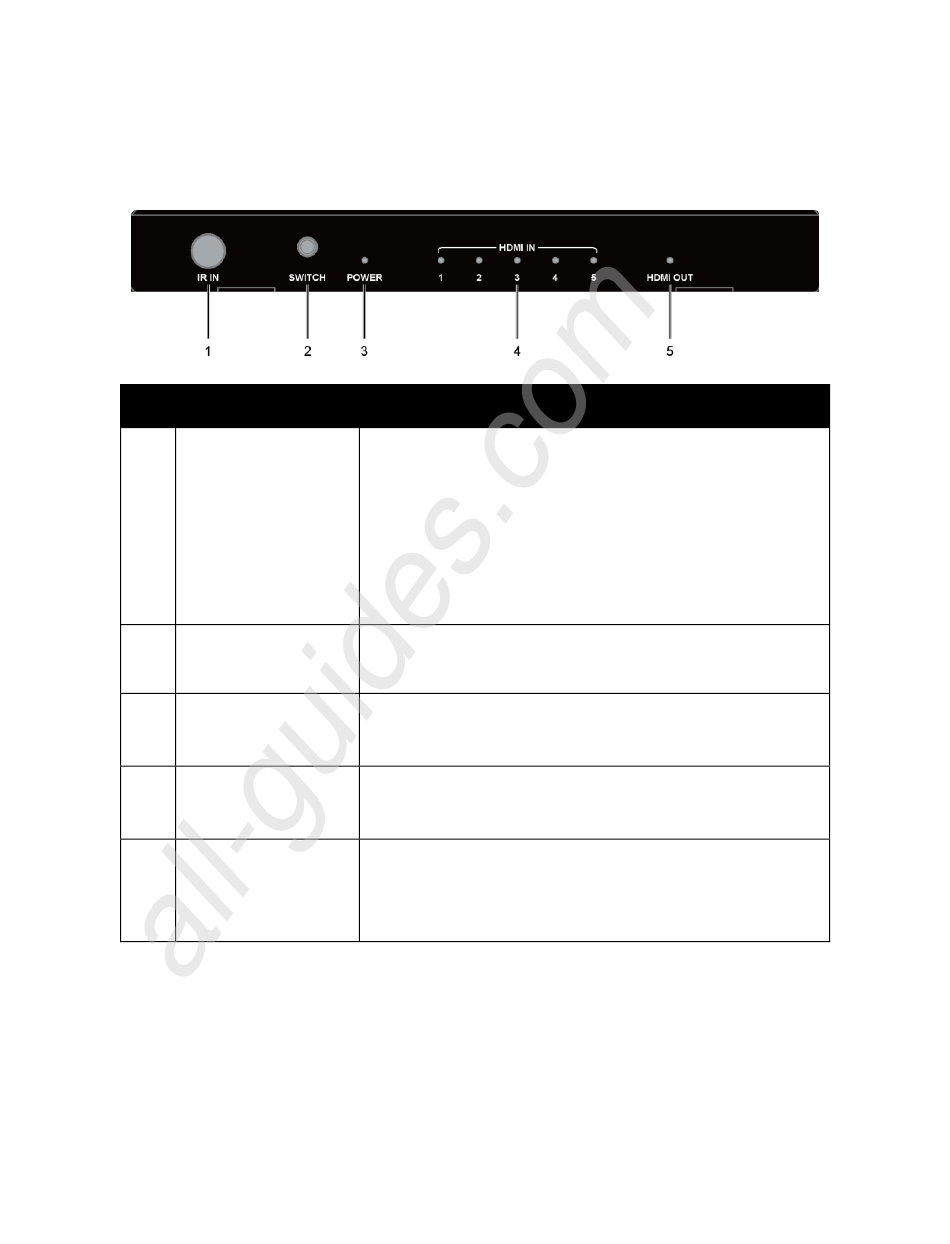

Panel; Front Panel - WBOX Technologies 0E-HDMISW5X1 Mode D'emploi

Panel

Front Panel

ID. Name
1 IR IN Window
SWITCH
2
Button
3 POWER LED
HDMI IN 1-5
4
LEDs
HDMI OUT
5
LED
All manuals and user guides at all-guides.com
Description
Point the remote directly at IR In
window to switch among connected
sources.
Note: IR In window will be disabled
when using the IR extend function on
rear panel.
Press to cycle through different sources.
On: The device is powered on.
Off: The device is powered off.
On: The source is selected.
Off: The source is not selected.
On: The device is connected to a sink.
Off: The device is not connected to a
sink.
4
