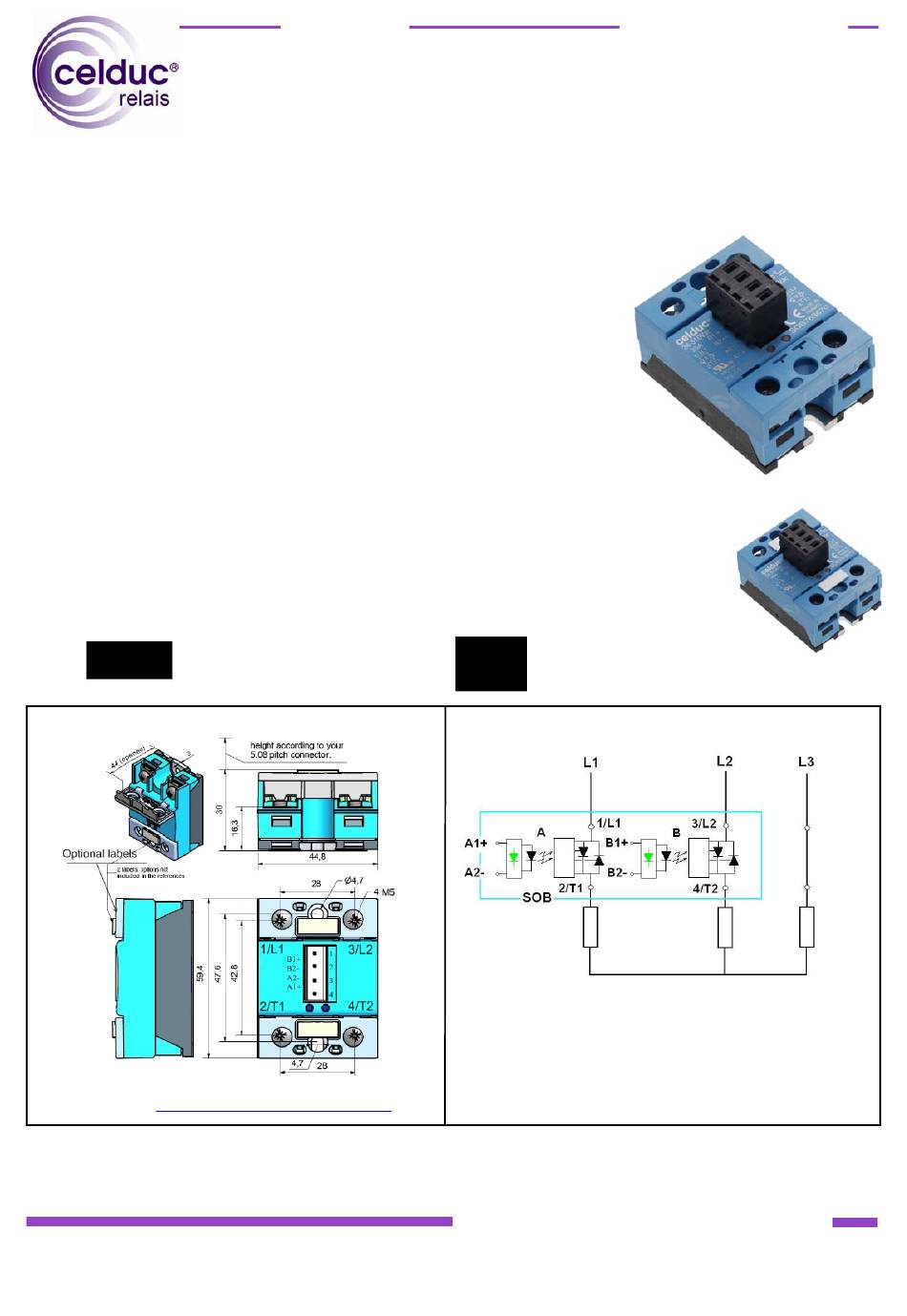

Celduc okpac SOB865660 Guide Rapide

Relais statique biphasé de puissance

Publicité

Liens rapides

→Relais statique biphasé synchrone spécialement adapté à la plupart des charges.
Dual Zero Cross Solid State Relay designed for most types of loads.
→ Sortie thyristors technologie TMS
24 à 600VAC 2x50A.
Back to back thyristors on output with TMS
expectancy: 24 to 600VAC 2x50A.
→ Entrée double avec LED de visualisation de couleur verte sur chaque entrée.
2 inputs with green LED visualization for each input.
→ Différentes possibilités de connecteur de commande.
Les relais sont livrés sans le connecteur de commande.
Sélectionner ce connecteur pages 5 à 7.
Different possibilities for input connector.
Input connector is not delivered with the SSR.
Select input connector in pages 5 to 7.
→ Protection IP20 par volets amovibles sur les bornes.
Etiquette repère disponible en option.
IP20 protection by removable flaps on terminals with optional
→ Construit en conformité aux normes IEC/EN60947-4-3
et EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL
Designed in conformity with IEC/ EN60947-4-3
and EN60950/VDE0805 ; IEC 60335-1/ VDE0700-1 ; UL-cUL
FILE Nr. E69913
Dimensions
CAD documents:
www.celduc-relais.com/uk/plan3d.asp
2
(*) TMS
=Thermo Mechanical Stress Solution
Proud to serve you
All technical caracteristics are subject to change without previous notice.
Caractéristiques sujettes à modifications sans préavis.
okpac
®
Relais statique biphasé
de puissance
Dual Power Solid State Relay
2(*)
permettant une longue durée de vie:
2 (*)
technology with a long lifetime
Delivered without input connector
labels.
Application typique: Résistance 24 kW (Catégorie AC-51) en 400VAC
Typical application: 24 kW resistor (AC-51 load) on 400 VAC
Le relais doit être monté sur
dissipateur thermique.
SSR must be mounted on heatsink
celduc
r
e
l
S/MON/SOB865660/C/18/07/2012
page 1 / 9F/GB
SOB865660
Output : 24-600VAC 2x50A
Input : 8-30VDC
Livré sans connecteur de
commande
Avec étiquette de repérage
en option
With optional labels
a
i
s
®

Publicité
