4.
NOTE: Finyl Line 10' rail kits include a support
foot which should be installed to bottom rail (step
a below) prior to attaching rail to brackets.

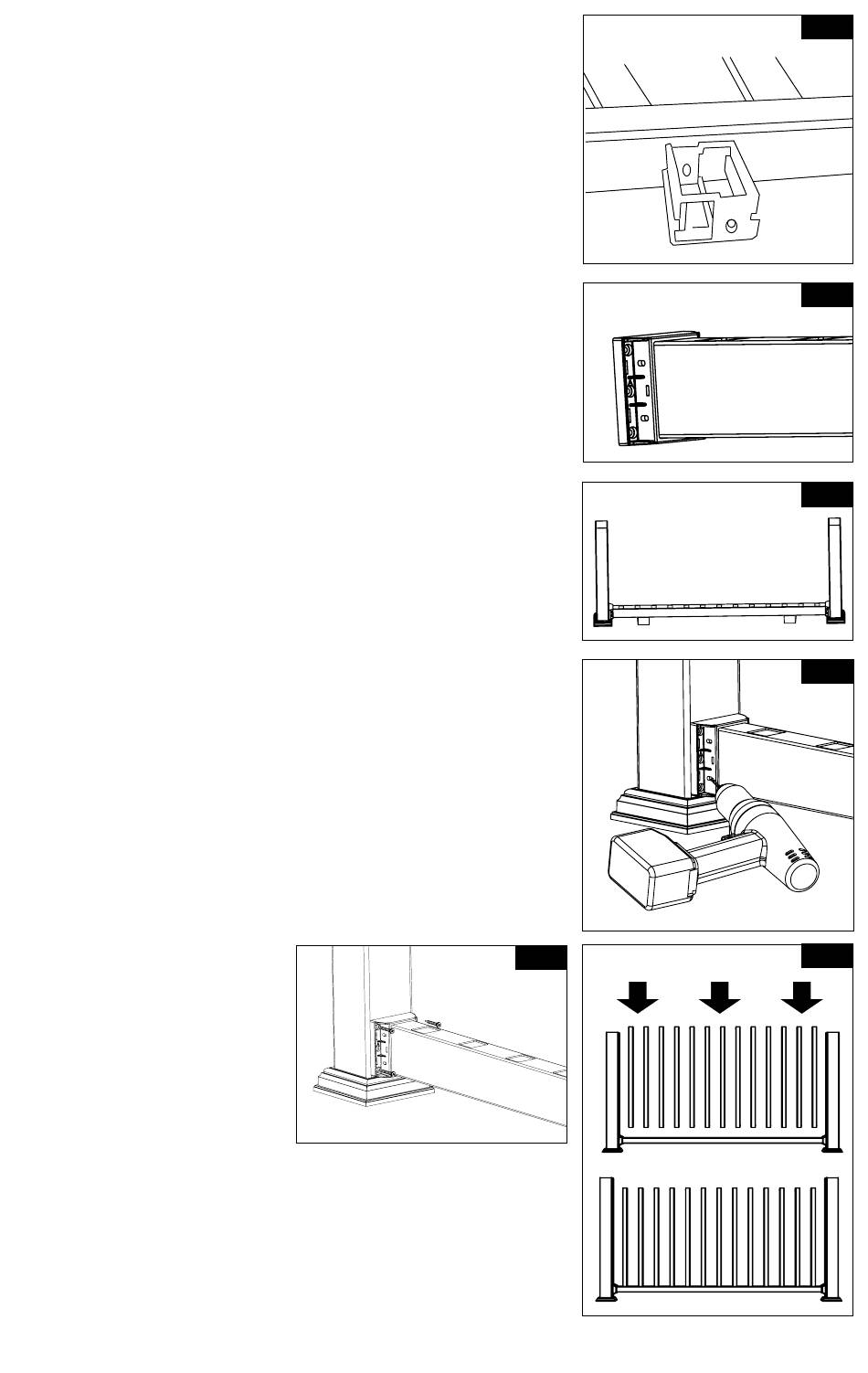

INSTALLING BOTTOM RAIL
a. If installing a 10' kit, locate and mark the
center point on the underside (unrouted side)
of the bottom rail. Attach the support foot to
the bottom rail as shown below (Fig. 5) using
supplied set screw.
b. Place brackets onto both ends of bottom rail
(Fig. 6).
c. Slide bottom rail in between posts and rest on
top of wood spacer blocks (Fig. 7).
d. Ensure bracket is centered to post. Then,
using
screw hole through bracket hole and post (use
the four outside corner holes) (Fig. 8).
e. Drive the first #10 x 1
bottom bracket into post (Fig. 9).
f. Repeat steps c and d for the remaining three
screws for the first bottom bracket.
g. Repeat steps c, d and e for the second
bottom bracket.
5.
SNAP BALUSTERS INTO YOUR
BOTTOM RAIL
a. Each kit with vinyl balusters contains 2 tabbed
balusters. Space them evenly into each
section.
b. Push all balusters into bottom rail (Fig.10).
4
" drill bit, pre-drill first bottom bracket
1
8
" screw through
1
2
Fig. 9
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 10
