SET-UP 2
HUTCH - with Stacking Plate
A
X2
REAR VIEW
VUE ARRIÈRE
SET-UP 3
HUTCH - with Hutch Bracket
D
X2
B
X6
C
HUTCH
BAHUT
A
DESK
BUREAU

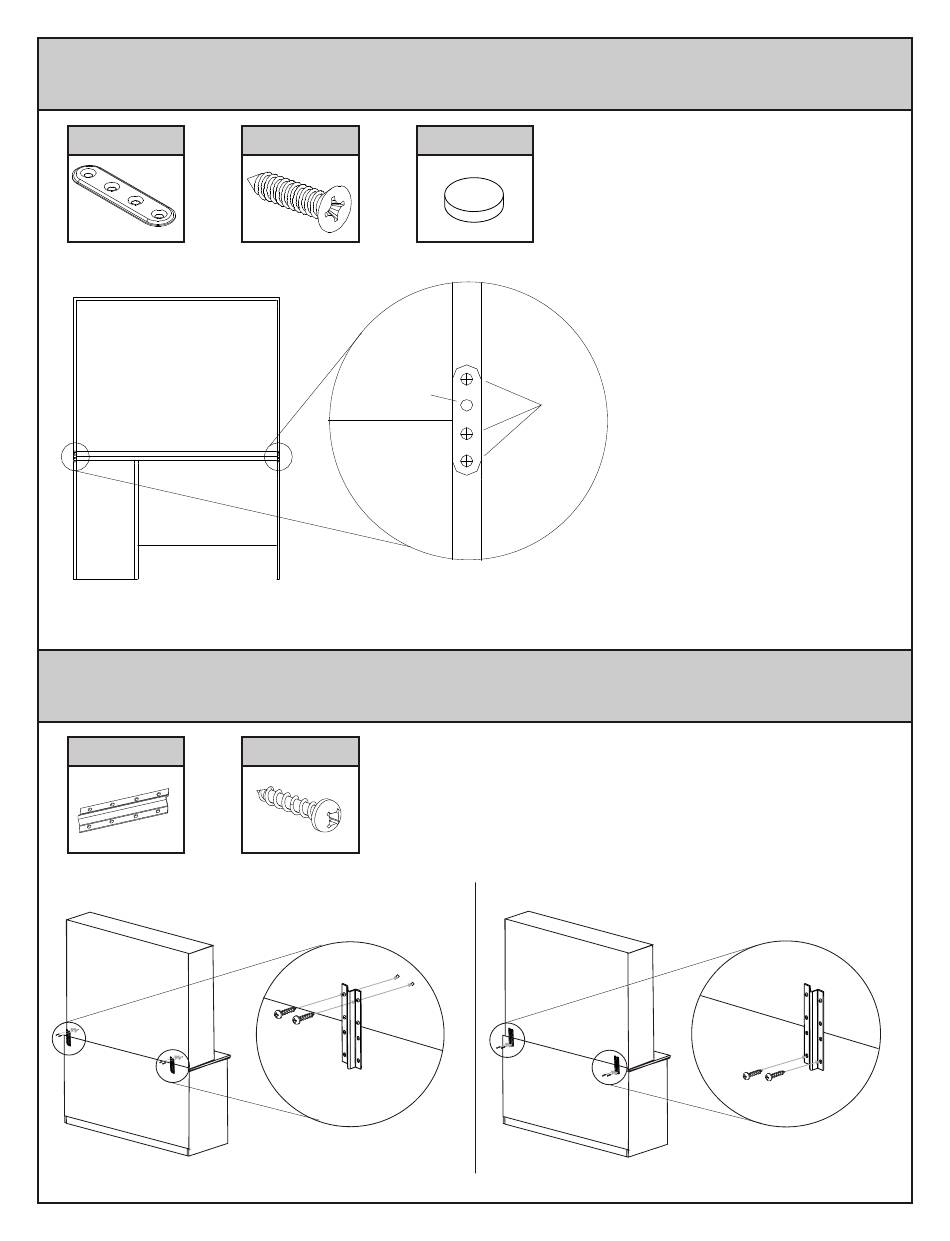

1. Attach bracket (D) to hutch with screws (E) using pilot holes
E
X8
as a guide.
2. Secure bracket to base.
1. Attachez le support (D) dans la bibliothèque avec vis (E) à
l'aide des trous pilotes comme un guide.
2. Serrez à la base.
E
D
Page 2 of 2 • Comp # P1021 • Revision # 2 • 04/2012
BAHUT - avec Support en Plaque
X4
1. Place grey felt pads (C) on
bottom of hutch to protect the desk
surface.
2. Line up desk and hutch with back
and side edges of desk.
3. Fasten stack plates (A) to
adjoining units using ONE screw (B)
in the hutch and TWO screws (B) in
the desk.
1. Placez les coussins en feutre gris
(C) sure fond du bahut pour
B
protéger la surface bureau.
2. Alinger les bords arrière et les
côtés du bureau et du bahut.
3. Attachez les supports en plaque
(A) aux unités en insérant UNE vis
(B) dans le bahut et DEUX vis (B)
dan le bureau.
BIBLIOTHÈQUE - avec Support de Bibliothèque
INSTALLATION 2
INSTALLATION 3
E
D
