RADSON CONTROL BOX Manuel D'installation

Guide for installation and use
Infrared Room Thermostat CONTROL BOX
5
1
2
3
4

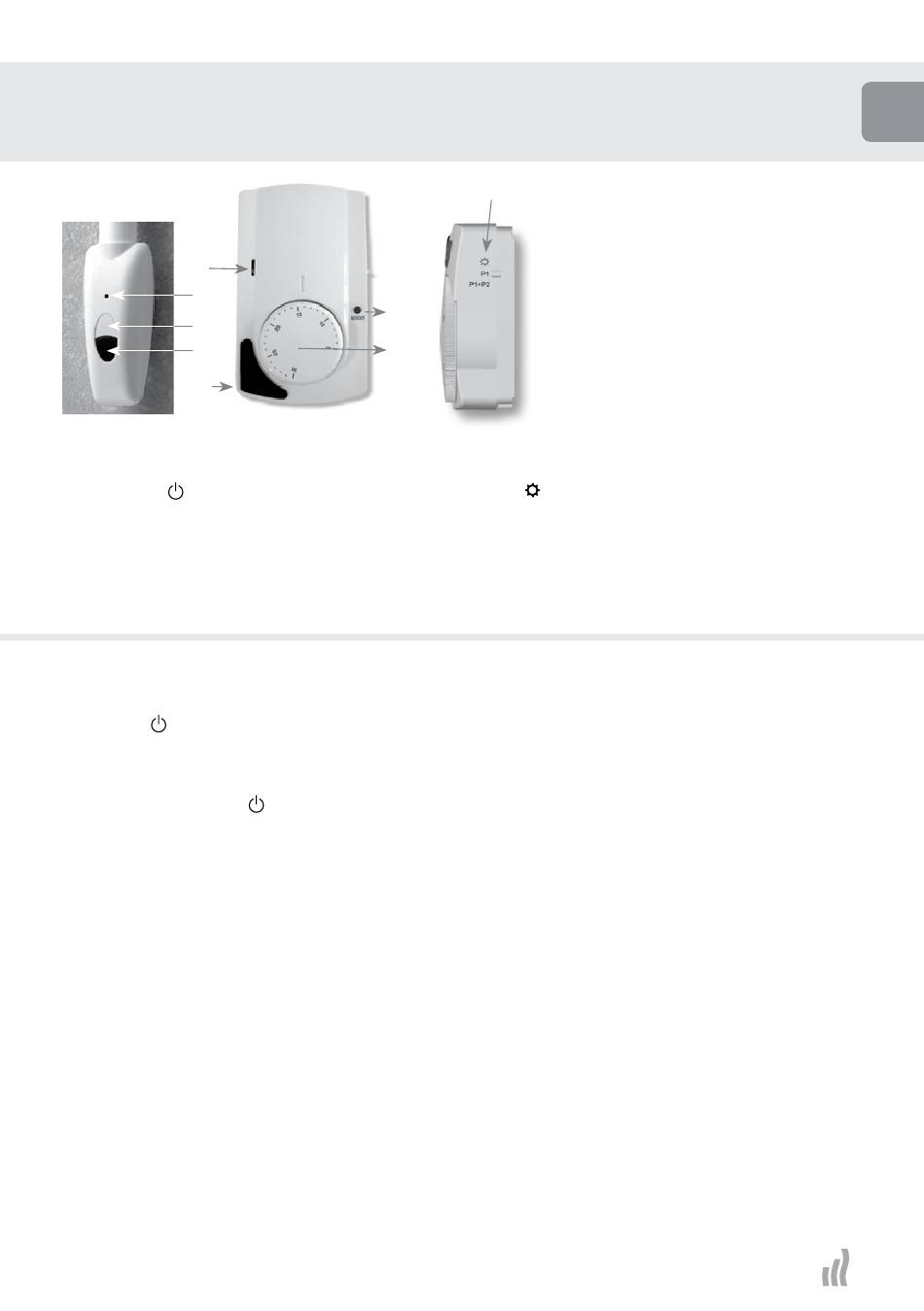

Infrared receiver Infrared Room Thermostat
1. Appliance on/off light.
2. Appliance on/standby button.
3. Infrared receiver.
4. Infrared emitter.
5. Thermostat on/off light.
6. OK/Boost button: Manual Boost cycle launch
and Daily Boost cycles P1 and P2 save button.
7. Regulation temperature adjustment dials.
STaRTiNG uP ThE dEviCE
After having plugged your device into the mains:
• Press the button [2] located on the receiver on
the bottom of the device to start up the appliance.
The light [1] should turn on.
• Light [1] modes:
- Off: Manual standby [
wire.
- Constant green light: device is on.
- Constant red light: device is heating.
- Flashing red light: device in Boost mode
[forced 'on'].
- Flashing Green/Red light: no infrared wave [out of
order] or overheated [the room temperature
measured is higher than 35°C].
The infrared receiver has an autonomous regulation
system which memorises the status information [on/
standby] and temperature instructions. Storing the
last instruction received means that the temperature
can be regulated even if the emitter is off [batteries
have run out for example].
iMPORTaNT: if your receiver is off, your appliance will
not receive the orders from the infrared thermostat.
Your installation may freeze because the device
cannot regulate its temperature.
ThERMOSTaT iNSTaLLaTiON
• Remove the battery protection strips.
6
7
button] or off via the pilot
8
Presentation
This infrared room thermostat has been
designed to bring you comfort and energy
savings. It is for the remote control of your
appliance.
You can regulate the room temperature as
you desire [regulation temperature].
Its BOOST function will enable you to
heat up your room quickly and/or dry your
towels.
8. 3 position cursor:
• comfort mode: regulation according to room
temperature.
• P1: regulation in comfort mode + repetition of
the 1st Boost 2h programmed time slot.
• P1+P2: regulation in comfort mode + daily
repetition of the two Boost 2h programmed
time slots.
• Install the room thermostat in the same room as
the appliance. The thermostat must be installed
around 1.5 metres from the ground, on an inside
wall, sheltered from water splashes, direct sunlight
and any direct thermal disturbance such as a lamp,
television, heating pipe, draft etc.
PLEaSE NOTE :
to ensure perfect infrared trans-mission :
• Do not obstruct the emitter or the receiver.
[with a towel for example]
• Avoid using lamps with a built-in electronic ballast
in the same room.
REGuLaTiNG ThE TEMPERaTuRE
To regulate the room temperature depending on the
desired temperature [regulation temperature]:
Turn the thermostat knob to the chosen tempera-
ture:
• The thermostat light [5] gives a long flash to
show that the regulation temperature has been
registered.
• The heated towel rack switches on [red light [1]]
as soon as the ambient temperature is lower than
the chosen temperature.
NOTE: any change in temperature regulation [7] or
cursor position [Confort
by a flash on the thermostat.
 
P1 P1+P2] is indicated
