User's guide
Matrix Flower
4. HOW TO SET UP THE UNIT

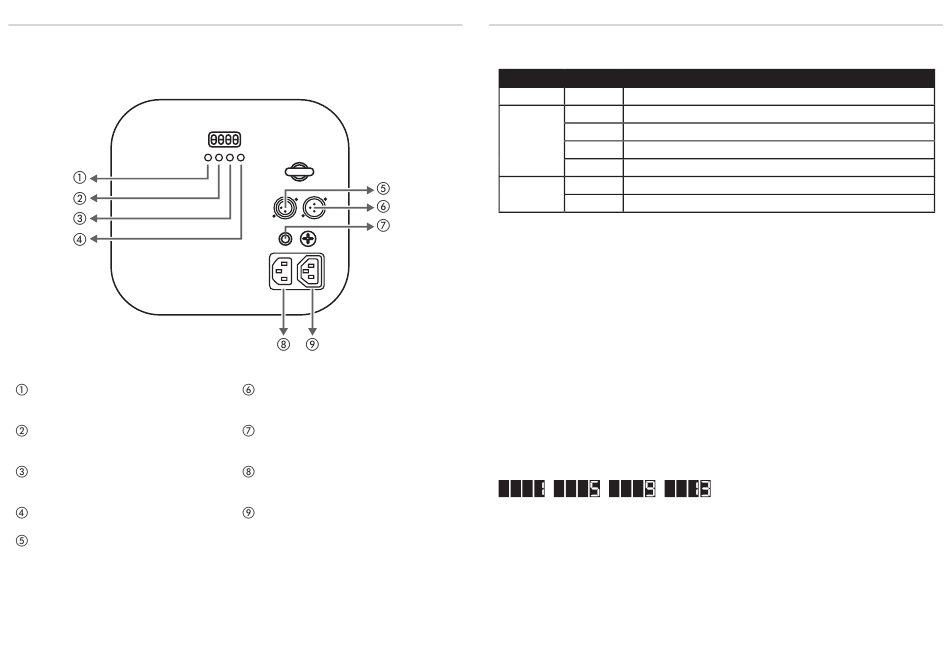

4.1 Control panel

MENU
Allows to select the programming
functions
UP
Allows to go forward in the selected
functions
DOWN
Allows to go backward in the selected
functions
ENTER
Allows to confirm the selected functions
DMX output
For DMX512 link, use a 3/5-pin XLR plug
cable to link to the next unit.
4
All manuals and user guides at all-guides.com
DMX input
For DMX512 link, use a 3/5-pin XLR plug
cable to input DMX signal.
Microphone
Receives music for the sound-activated
mode.
Mains output
Connect to supply mains power to the
next unit.
Mains input
Connect to supply mains power.

4.2 Main Functions

Function Features and value
A001 Press UP and DOWN to set the DMX address
RUNx SoU 1 Sound mode 1
SoU 2 Sound mode 2
SLo U Slow running mode
FAS t Fast running mode
leon/loff LEoN 4-digit LED display always on
Loff LED display offif no any operation for 1 min.
5. HOW TO CONTROL THE UNIT
There are two ways to control the fixture:
A. Via a Universal DMX controller
B. By Master/Slave operation
A. Universal DMX controller
The fixture can be remotely controlled by
a universal DMX controller, once its DMX
address has been set. First, you need to
program two scenes into a chase, and
then link the fixtures to the universal DMX
controller. When you run the chase, all the
fixtures in the chain will have their DMX
address set automatically. The fixture
uses four channels. Please refer to the
following diagram to set the address for
the first four units.
User's guide
Matrix Flower
B. Master/Slave operation
The fixture will allow you to link 16 fixtures
together to operate without a controller.
In Master/Slave mode, the first fixture will
control the others to give an automatic,
sound-activated, synchronized light show.
This function is ideal when you want to
provide an instant show. Do not connect
any cable to the first fixture's DMX input
XLR connector, and the other fixtures will
be set to slave mode automatically. Link
the other fixtures by connecting the DMX
output connector to the next fixture's DMX
output XLR connector (daisy chain), and
so on, until all the fixtures are linked. Any
fixture can act as a Master or as a Slave.
5
