Introduction

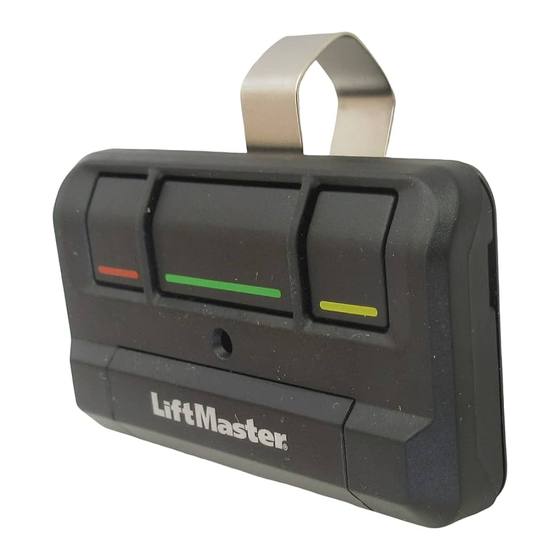

The 811LMX and 813LMX are programmable
DIP switch remote controls for use with
LiftMaster commercial products using Security+
2.0 Encrypted DIP, as well as older 315 MHz
®
DIP and 390 MHz DIP devices. The remote
control default setting is Security+ 2.0
The 813LMX model is designed for OPEN/
CLOSE/STOP functionality.
The images throughout this manual are for
reference only and your product may look
different.
811LMX
Programming
Step 1: Set the DIP Switches
1 Slide the cover open to access the DIP
switches.
2 Use a pen or screwdriver to slide the DIP
switches to any position you want (ON or OFF).
Step 2: Select the Security Type
NOTE: If the device you use with this remote is
Security+ 2.0 ® Encyrpted DIP, skip this step and go
to Step 3: Program the Remote to a Device.
Follow these steps to select 315 MHz DIP, 390
MHz DIP or to reset the remote to Security+ 2.0
Encrypted DIP from a
different setting.
1 Locate and press
the Program
Button. The LED
glows steady
Yellow.
Yellow
LED
.
®
813LMX
Program
Button
PROGRAMMABLE DIP SWITCH
Models 811LMX and 813LMX
To prevent possible serious injury or death from
a moving gate or garage door:
• ALWAYS keep remote controls out of reach
of children. NEVER permit children to
operate, or play with remote control
transmitters.
• Activate gate or door ONLY when it can be
seen clearly, is properly adjusted, and there
are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight
until completely closed. Never permit anyone
to cross path of moving gate or door.
WARNING: This product can expose you
to chemicals including lead, which are
known to the State of California to cause
cancer or birth defects or other
reproductive harm. For more information
go to www.P65Warnings.ca.gov.
2 Press any remote control button the number of
times that corresponds to the security type for
your device.
# OF PRESSES
®
1
2
3
3 Press and hold the Program Button until the
LED on the front of the remote turns off.
REMOTE CONTROLS
Cover
DEVICE SECURITY TYPE
Security+ 2.0 ®
315 MHz DIP
390 MHz DIP
DIP
Switch
