Operation MANUAL
Prod. No.: 409007
3/16" Air Riveter - Super Heavy Duty
Specifications
• 3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm)
3/16" (4.8mm) standard blind rivets
• Air consumption: 5.5 cfm
• Pull: 2,600 lbs
• Stroke: 0.78" (20mm)
• Air pressure: 90 PSI
• Weight: 3.30 lbs
• Sound Level: 75 dBA
• Vibration Level: 2.5 m/s²

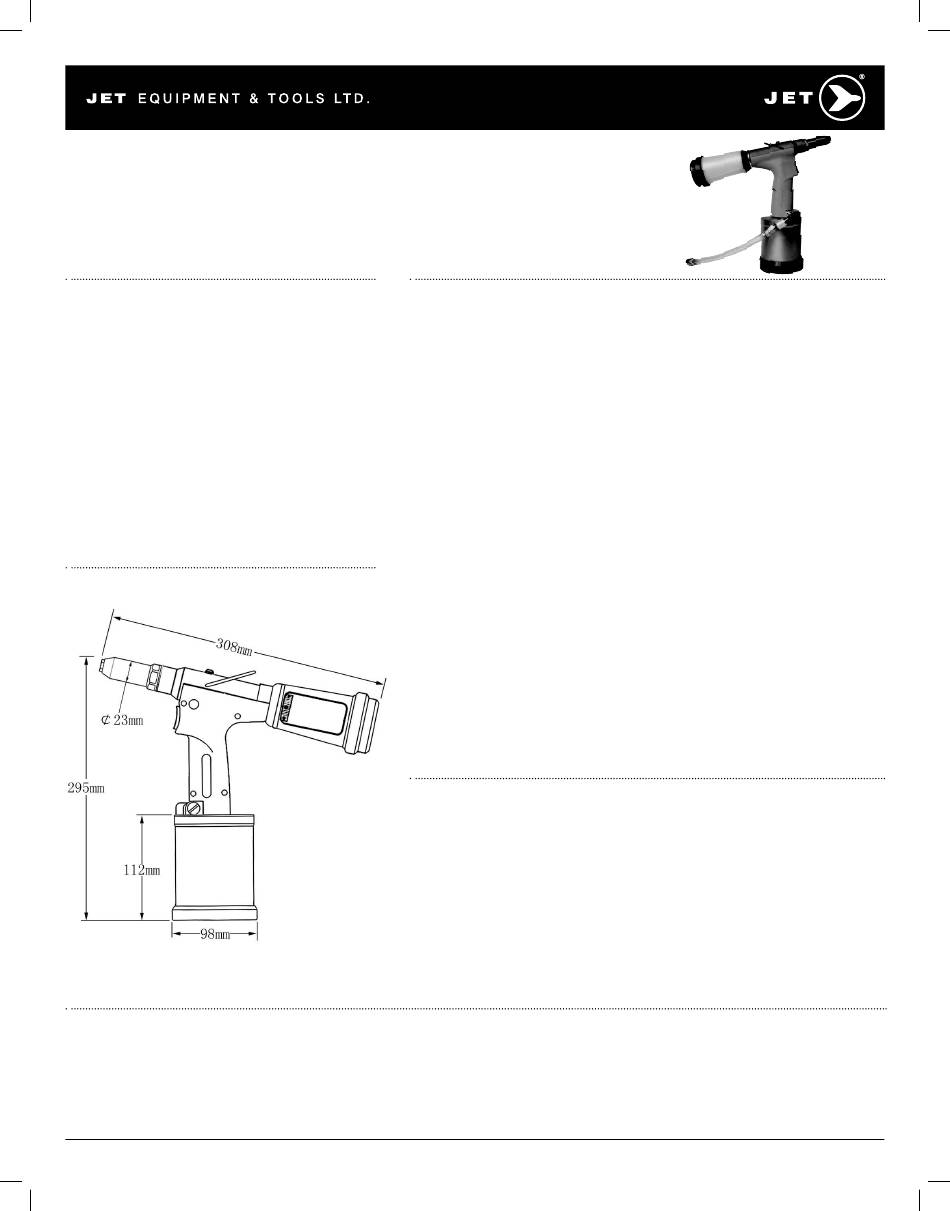

Dimensions (in millimeter)
Operation
Determine the size rivet that you are going to use. If setting 3/16" rivets no changes to the tool are necessary the 3/16" nosepiece is factory
installed. To change the nosepiece remove it from rivet tool using wrench included. Select nosepiece that corresponds to the size rivet you
are using and screw nosepiece clockwise onto rivet tool head.
Mod. No.: AR316SD
Important Safety Instructions
This manual contains information that is important for you to know and
understand. This information is for YOUR SAFETY and to PREVENT EQUIPMENT
PROBLEMS. Prior to operation of the tool, please read the manual.
Never dismantle the tool without first having thoroughly studied the instructions
given in this User Manual.
Always use the tool in accordance with the specified safety instructions.
The safety instructions must be made clear to all persons operating this tool.
Never connect the tool to any medium other than compressed air.
Set the air pressure to 90 lbs PSI.
The tool must be maintained in a safe working condition at all times and
examined at regular intervals for damage and function by trained
competent personnel.
Do not dismantle this tool without prior reference to the maintenance and service
instructions. Always disconnect the air line from the tool inlet before attempting
maintenance and service.
CAUTION
Do not operate the tool if it is directed towards a person or the operator.
When using the tool, the wearing of safety glasses is required by the
operator and others in the vicinity to protect against rivet stem ejection.
Air Supply Requirements
All tools are operated with compressed air at the range of (75-100 PSI). We
recommend the use of pressure regulators and filtering systems on the main air
supply. These should be fitted within 10-12' of the tool to ensure maximum tool
life and minimum tool maintenance. Drain water from air compressor tank and
condensation from air lines. See air compressors operation manual.
Air supply hoses should have a minimum working pressure rating of 150% of the
maximum pressure produced in the system. Air hoses should be oil resistant,
and have an abrasion resistant exterior. Minimum hose size 3/8". Do not use
damaged, frayed or deteriorated air hoses and fittings.
