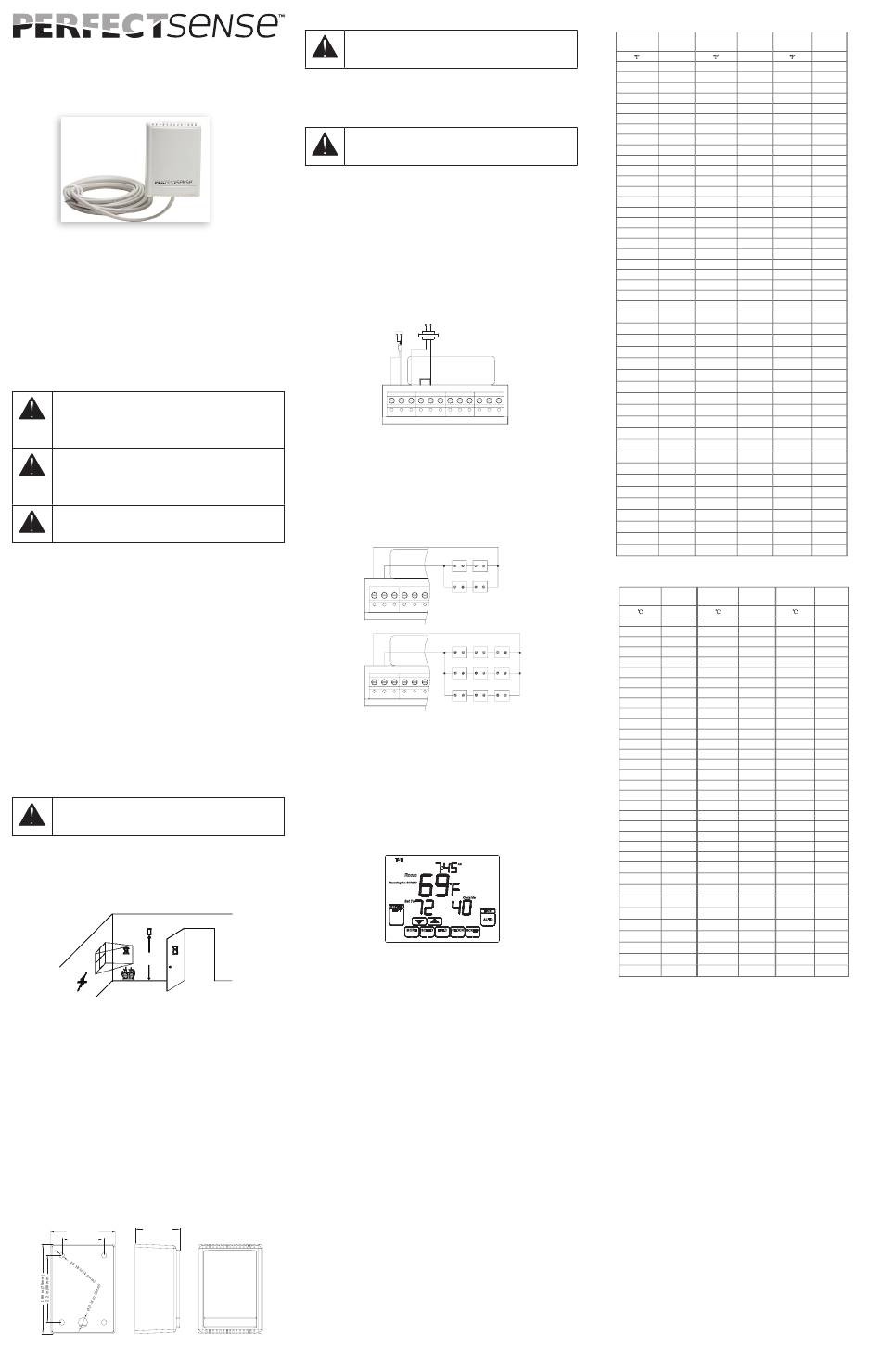

PS-R-02
Indoor Temperature Sensor
Installation and Operation Manual
The PerfectSense™ PS-R-02 Indoor Sensor is designed to sense temperature
at remote indoor locations and send this information to the PerfectSense
Thermostat. This sensor can be used with the PS4000 and PS5000
thermostat models. The sensor can be used as a stand alone sensor or as
part of an averaging network. Once a sensor is connected to the thermostat,
the thermostat's built-in sensor is no longer used. The thermostat's installer
set-up parameters should be modified to tell the thermostat that a remote
indoor temperature sensor is being used. The temperature reading on the
thermostat's display will be the temperature at the remote sensor location.
Please take time to read and understand these instructions as proper
installation of the PS-R-02 will ensure an accurate and reliable
temperature sensor.
IMPORTANT SAFETY INFORMATION
WARNING: ELECTRICAL SHOCK HAZARD – Turn off power
at the main power source by unscrewing fuse
or switching circuit breaker to the OFF position
before installing, removing, or cleaning this
thermostat/sensor.
WARNING: FIRE AND ELECTRIC SHOCK HAZARD – This
device should be installed by a qualified
service technician with due regard for safety
as improper installation could result in a fire
and electric shock hazard.
WARNING: FIRE AND ELECTRICAL SHOCK HAZARD – This is
a 24V AC low-voltage thermostat. Do not install
on voltages higher than 30V AC.
• Do not switch system to cool if the temperature is below 50°F (10°C).
This can damage your cooling system and may cause personal injury.
• Do not short (jumper) across terminals on the gas valve or at the system
control to test installation. This will damage the thermostat and void
the warranty.
• All wiring must conform to local and national building and electrical
codes and ordinances.
• Use this thermostat and sensor only as described in the manual.
OVERVIEW
The PS-R-02 temperature sensor includes the sensor with lead wires
attached. It is secured to an indoor wall surface using screws. The PS-R-02
temperature sensor is connected to a thermostat as an external sensor.
The thermostat must be configured appropriately.
When installing this product:
1. Read these instructions carefully. Failure to follow them could damage
the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make
sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. After installation is complete, check out the product operation as
provided in these instructions.
WARNING: ELECTRIC SHOCK HAZARD – Can cause electrical
shock or equipment damage. Disconnect power
supply before connecting wiring.
SET-UP
Mount the sensor about 4.92 ft (1.5m) above the floor where there is
good air circulation so it can measure true indoor ambient temperature.
Be sure the mounting surface is flat and the wire distance between the
PS-R-02 and the thermostat is less than 19.69 ft (6m), Figure 1.
YES
NO
5FEET
NO
1.5METERS
NO
Figure 1. Typical locations for indoor sensor
Make sure there is good air circulation and average temperature at the
chosen location. Avoid the following locations because they can introduce
errors in sensor measurements, see Figure 1.
Hot areas caused by:
• Concealed pipes or ducts
• Drafts from fireplaces or other heat sources
• Convection or radiant heat from the sun or electrical equipment
Cold areas caused by:
• Concealed pipes or ducts
• Drafts from doors or windows
• Unheated areas on the other side of the wall location
Dead air areas:
• Behind doors, furniture and curtains
• In corners and alcoves
Mark the area on the location selected for attaching the sensor. Use the
screw holes in the back plate as a template.
1.5 in.(38mm)
2.16 in.(55mm)
1.41 in.(36mm)
Figure 2. Dimensions
WIRING
CAUTION: ELECTRICAL INTERFERENCE (NOISE) HAZARD
Can cause erratic temperature readings and
system operation.
Keep wiring at least one foot away from large inductive loads such as;
motors, line starters, lighting ballasts and large power distribution panels.
Use shielded cable to reduce interference when rerouting is not possible.
Make certain the wiring connections are secure.
WARNING: ELECTRIC SHOCK HAZARD – Can cause electrical
shock or equipment damage. Disconnect power
supply before connecting wiring.
Wiring must comply with applicable codes, ordinances and regulations.
Wire the PS-R-02 indoor sensor to S1 and S2 terminals on the thermostat.
If the lead wire provided is not long enough (9.48 ft [3 m]), run a color-
coded, 18 gauge 2-wire to the mounting location, refer to Figure 3. Pigtail
wiring may be used.
Push excess wire back into the hole. Plug the hole using nonhardening
caulk, putty or insulation to prevent drafts from affecting performance.
Remove PS-R-02 cover. Mount the PS-R-02 to the wall or junction box
using the screws and anchors provided. Level the PS-R-02 for appearance
only. The sensor functions correctly even when not level. Reinstall the
PS-R-02 cover.
C R
PS-R-02 1
2
3
S1 S2 C R RC W W2
1. Power supply - Provide a way to disconnect and
provide overload protection as required.
2. If more than one PS-R-02 remote sensor is required,
refer to Figure 4.
3. Wires must have a cable separate from the
thermostat cable.
Figure 3. Wiring a single PS-R-02 sensor
PS-R-02
2
PS-R-02 PS-R-02
S1 S2 C R RC
PS-R-02 PS-R-02 PS-R-02
2
PS-R-02 PS-R-02 PS-R-02
S1 S2 C R RC
PS-R-02 PS-R-02 PS-R-02
1. Sensors must be arranged in this configuration to
operate correctly.
2. Wires must have a cable separate from the
thermostat cable.
Figure 4. Wiring multiple PS-R-02 sensors
OPERATION
Once installed and the Thermostat Installer Setup Number 0340 is set to
3 for indoor mounting, the inside temperature can be displayed on the
thermostat.
TUE
AM
Room
Running As SCHED
Outside
Set To
SYSTEM
HEAT
MORE SCHED HOLD CLOCK SCREEN
Figure 5. PS4000 display
SPECIFICATIONS
Mounting 38mm spaced
Sensor 10K ohm NTC type II
Operating temperature -40°F to 170°F (-40°C to 80°C)
Display range 32°F to 99°F (0°C to 37°C)
Sensor accuracy +/- 1.5°F at 77°F (25°C)
Operating relative humidity 5% to 95% non-condensing
Dimensions Indoor sensor with 9.84 ft (3m) leadwires
2.16 in (55m) wide, 2.95 in (75mm) high,
1.5 in (38mm) deep
Transmitter power <0.1 watt
Warranty 5 Years
CHECKOUT
The PS-R-02 indoor temperature sensor converts indoor ambient
temperature to a resistance that the thermostat can interpret.
The PS-R-02 has a negative temperature coefficient (NTC), which means
that resistance decreases as the temperature increases. Refer to Tables 1
and 2, Sensor resistance at room temperature.
With an accurate thermometer [+/- 1°F (0.5°C)] measure the temperature
at the sensor location, allowing time for the thermometer to stabilize
before reading.
To verify sensor resistance, remove one wire from the PS-R-02 remote
sensor. Use an ohmmeter to measure the resistance across the sensor.
Then verify the sensor accuracy with the temperature/resistance in
Table 1 or 2. Any difference in the temperature readings may be offset
using the thermostat's settings.
CALIBRATION
The PS-R-02 indoor sensor is calibrated at the factory and cannot be
recalibrated in the field.
Table 1. Sensor resistance at room temperature - °F
Room
Temperature
℉
-1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Y2 Y G
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
PS-R-02
Table 2. Sensor resistance at room temperature - °C
Room
Temperature
℃
-21
-20
1
-19
-18
-17
-16
-15
-14
-13
-12
-11
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
FAN 7
AUTO
8
9
10
11
12
Robertshaw®, Uni-Line® and PerfectSense™ are trademarks of
Robertshaw, its subsidiaries and/or affiliated companies. All other brands
mentioned may be the trademarks of their respective owners.
Customer Service Telephone 1.800.304.6563
HVACCustomerService@robertshaw.com
For Technical Service
Telephone 1.800.445.8299
TechnicalService@robertshaw.com
Ohms of Room Ohms of Room Ohms of
Resistance Temperature Resistance Temperature Resistance
℉ ℉
88610 44 23394 89 7471
86041 45 22760 90 7307
83266 46 22146 91 7107
80679 47 21565 92 6954
78068 48 21006 93 6783
74850 49 20548 94 6645
72214 50 19914 95 6481
70705 51 19395 96 6318
68855 52 18881 97 6185
66584 53 18388 98 6040
64620 54 17904 99 5917
62636 55 17432 100 5764
60723 56 16983 101 5649
58858 57 16553 102 5522
57092 58 16124 103 5426
55351 59 15696 104 5314
53744 60 15310 105 5184
52229 61 14923 106 5075
50603 62 14536 107 4940
49087 63 14160 108 4834
47619 64 13801 109 4719
46202 65 13475 110 4626
44825 66 13110 111 4519
43553 67 12831 112 4430
42308 68 12504 113 4324
41098 69 12154 114 4230
39901 70 11868 115 4153
38757 71 11556 116 4066
37640 72 11300 117 3992
36568 73 11001 118 3901
35538 74 10760 119 3821
34548 75 10478 120 3724
33603 76 10259 121 3660
32670 77 10000 122 3589
31762 78 9736 123 3490
30865 79 9518 124 3420
31014 80 9267 125 3343
29200 81 9064 126 3279
28455 82 8828 127 3206
27667 83 8636 128 3146
26853 84 8409 129 3076
26145 85 8242 130 3026
25396 86 8049 131 2970
24717 87 7835 132 2893
24043 88 7661 133 2832
Ohms of Room Ohms of Room Ohms of
Resistance Temperature Resistance Temperature Resistance
℃ ℃
105084 13 17312 47 4014
99077 14 16510 48 3862
93449 15 15751 49 3716
88175 16 15030 50 3588
83229 17 14347 51 3443
78590 18 13698 52 3315
74238 19 13083 53 3192
70152 20 12499 54 3075
66316 21 11944 55 2963
62712 22 11416 56 2855
59325 23 10916 57 2752
24 10440 58 2653
56141
25 10000 59 2558
53147
50330 26 9556 60 2467
47679 27 9147 61 2380
45184 28 8757 62 2297
42833 29 8386 63 2216
40619 30 8033 64 2139
38533 31 7697 65 2065
36565 32 7377 66 1994
34710 33 7072 67 1926
32960 34 6781 68 1861
31308 35 6503 69 1798
29748 36 6239 70 1737
28276 37 5987 71 1679
26884 38 5746 72 1623
25570 39 5516 73 1569
24327 40 5297 74 1518
23152 41 5088 75 1468
22040 42 4888 76 1420
20988 43 4697 77
1374
19993 44 4514 78
1330
19050 45 4340 79
1287
18158 46 4173 80
1246
