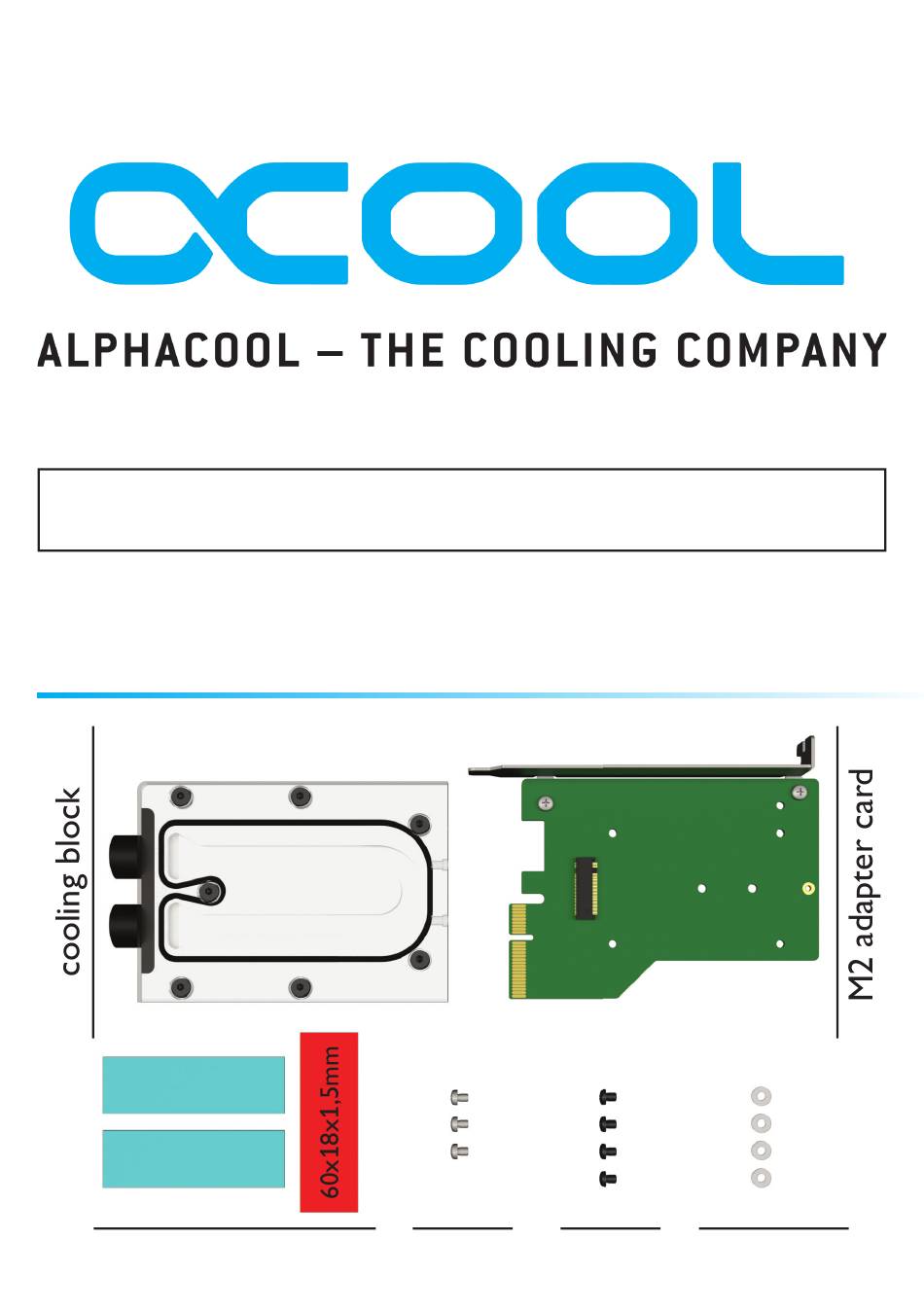

- Page 1 HDX - 3 Scope of delivery - Lieferumfang - Contenue de livraison 60x 1 8x 1 mm 60x 1 8x 1 mm thermal pads 3x M3x5 4x M3x6 4x washers...
- Page 2 Cooler mounting - Kühlermontage - Montage du refroidisseur 1. Set the M2 SSD adapter card onto an anti-static mat. Place one thermal pad, like shown, in front of the M2 socket. Choose between an 1mm pad for M2 SSDs with components on both sides and a 1,5mm pad for M2 SSDs with an empty side.
- Page 3 Cooler mounting - Kühlermontage - Montage du refroidisseur components only on one side 1,5mm components on both sides M3x5 M3x5 M3x5...
- Page 4 Cooler mounting - Kühlermontage - Montage du refroidisseur 4. Turn the adapter card and place the four washers as pictured. 5. The block is fastened with four M3x6 screws. Carefully tighten the screws crosswise. 4. Wenden Sie die Adapterkarte und platzieren Sie die vier Unterlegscheiben, wie dargestellt.
