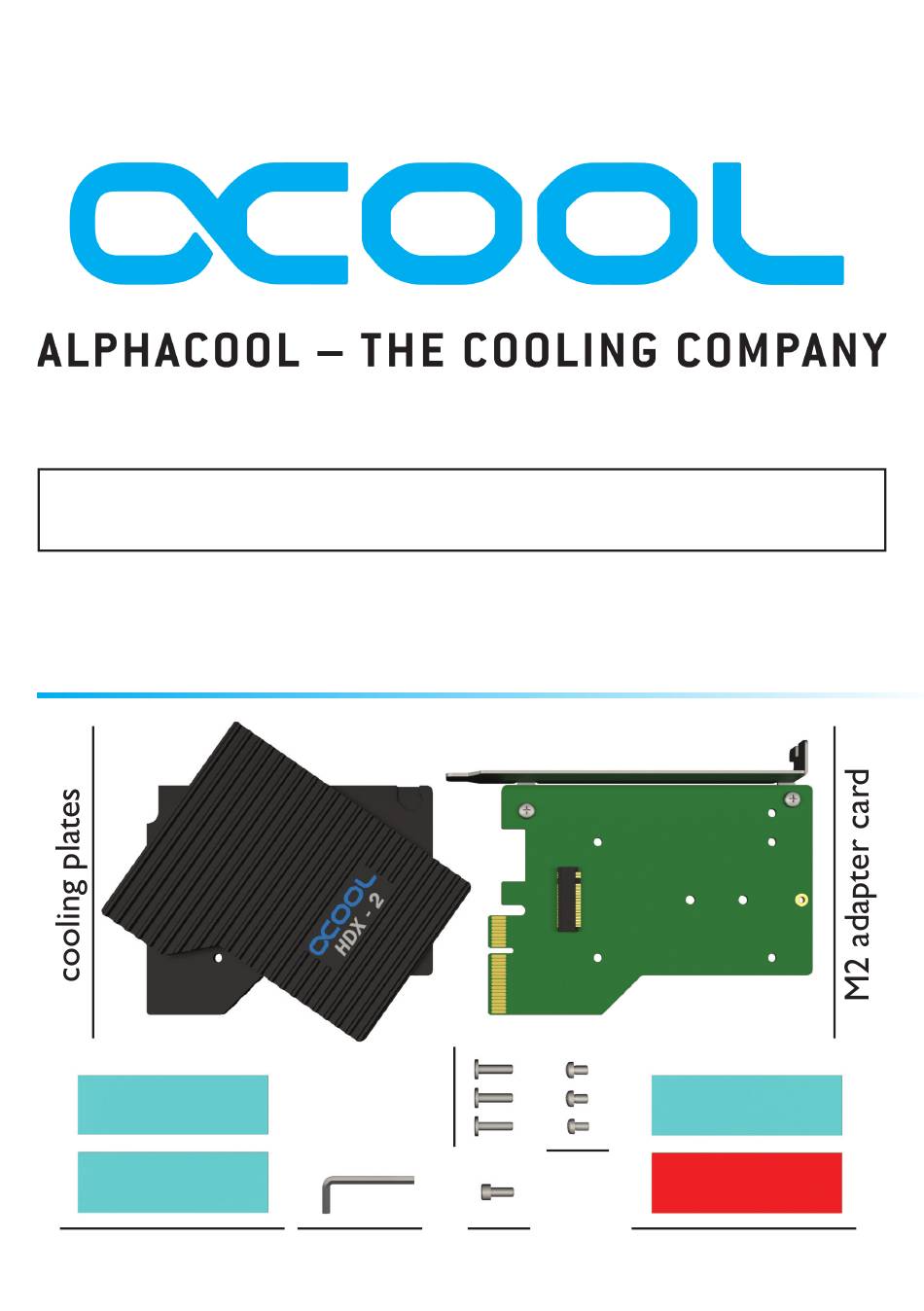

- Page 1 HDX - 2 Scope of delivery - Lieferumfang - Contenue de livraison M3x11 60x 1 8x 1 mm 60x 1 8x 1 mm M3x5 60x 1 8x 1 mm 60x 1 8x 1 ,5mm thermal pads Allen key M3x6 thermal pads...
- Page 2 Cooler mounting - Kühlermontage - Montage du refroidisseur 1. Set the M2 SSD adapter card onto an anti-static mat. Place one thermal pad, like shown, in front of the M2 socket. Choose between an 1mm pad for M2 SSDs with components on both sides and a 1,5mm pad for M2 SSDs with an empty side.
- Page 3 Cooler mounting - Kühlermontage - Montage du refroidisseur components only on one side 1,5mm components on both sides M3x5 M3x5 M3x5...
- Page 4 Cooler mounting - Kühlermontage - Montage du refroidisseur 4. Turn the adapter card and place another 1mm thermal pad on the rear of the M2 SSD. 5. Attach the upper body of the cooler. The block is fastened with four screws. Carefully tighten the screws crosswise. 4.
