NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS

BEFORE INSTALLATION: Turn off power source. Review all
safety precautions.

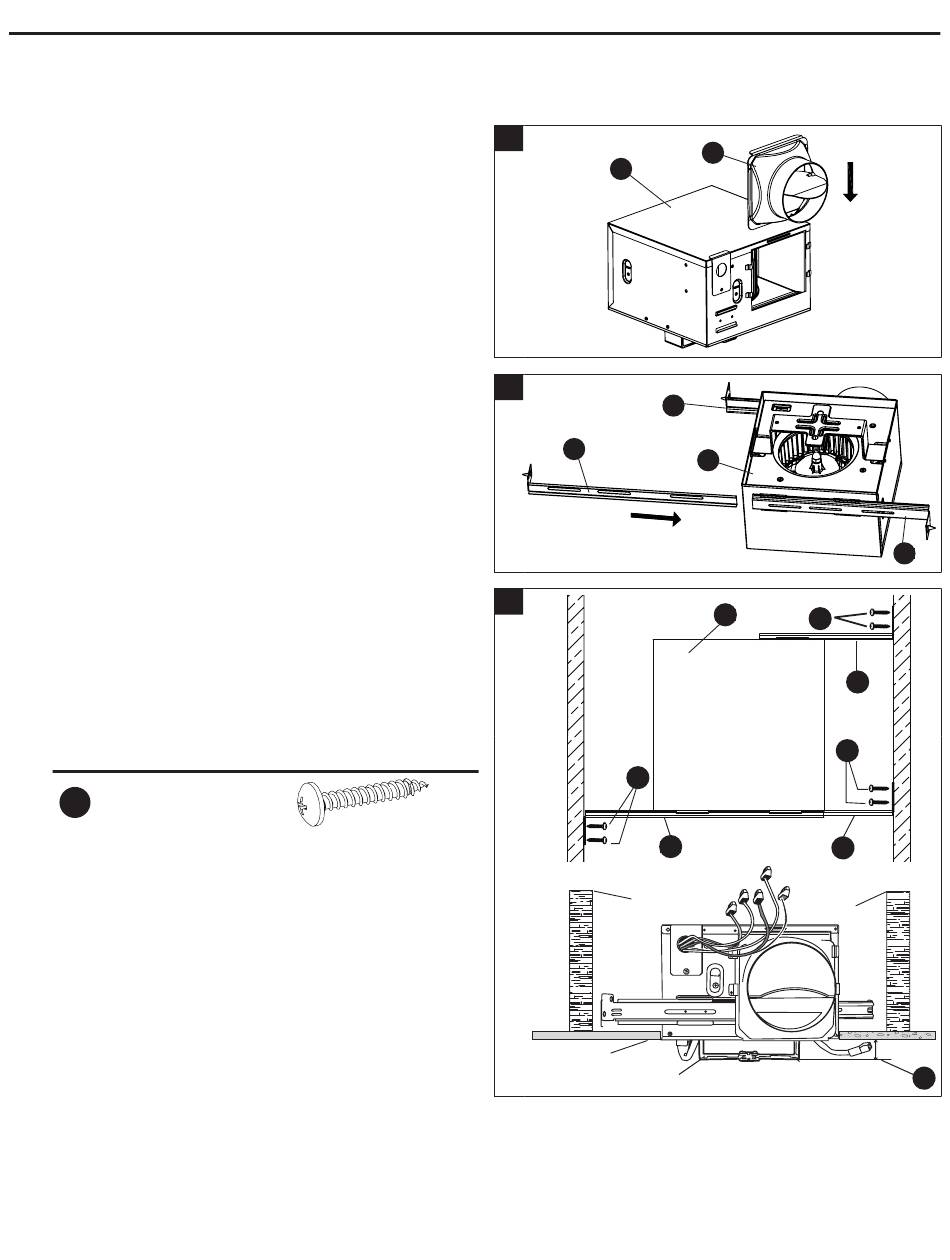

1. Attach the duct connector (H) to the fan housing (A).
2. Insert suspension bracket I (E) into the bracket cover
on the duct connector side. Then, attach suspension
bracket II (F) and suspension bracket III (G) to the back
of the fan housing (A).
3. Secure the fan housing (A) to joist with suspension
brackets (E, F, G) using long wood screws (AA).
Note: Bottom of fan housing should be flush with the
bottom of the ceiling board. When mounted correctly, the
LED panel mounting bar will hang below the ceiling board.
Optimum spacing from the bottom of the ceiling board
to the bottom of the mounting bar is 3/4 in. (3.1).
Hardware Used
AA
Long wood screw
1
A
2
G
3
x 6
Ceiling boar d
Mounting bar
6
H
E
A
A
View of fan
housing from
the top
AA
F
Side view
of fan housing
F
AA
E
AA
G
3/4 in .
3.1
