Water pipe connection

- The water flow through this machine needs to be driven by an appended water pump
(Prepared by the user). The recommended pump specification-flux is shown on the
product specification and Max. lift ≥10m;
- Pipe length between heat pump and swimming pool should not be longer than 10m.

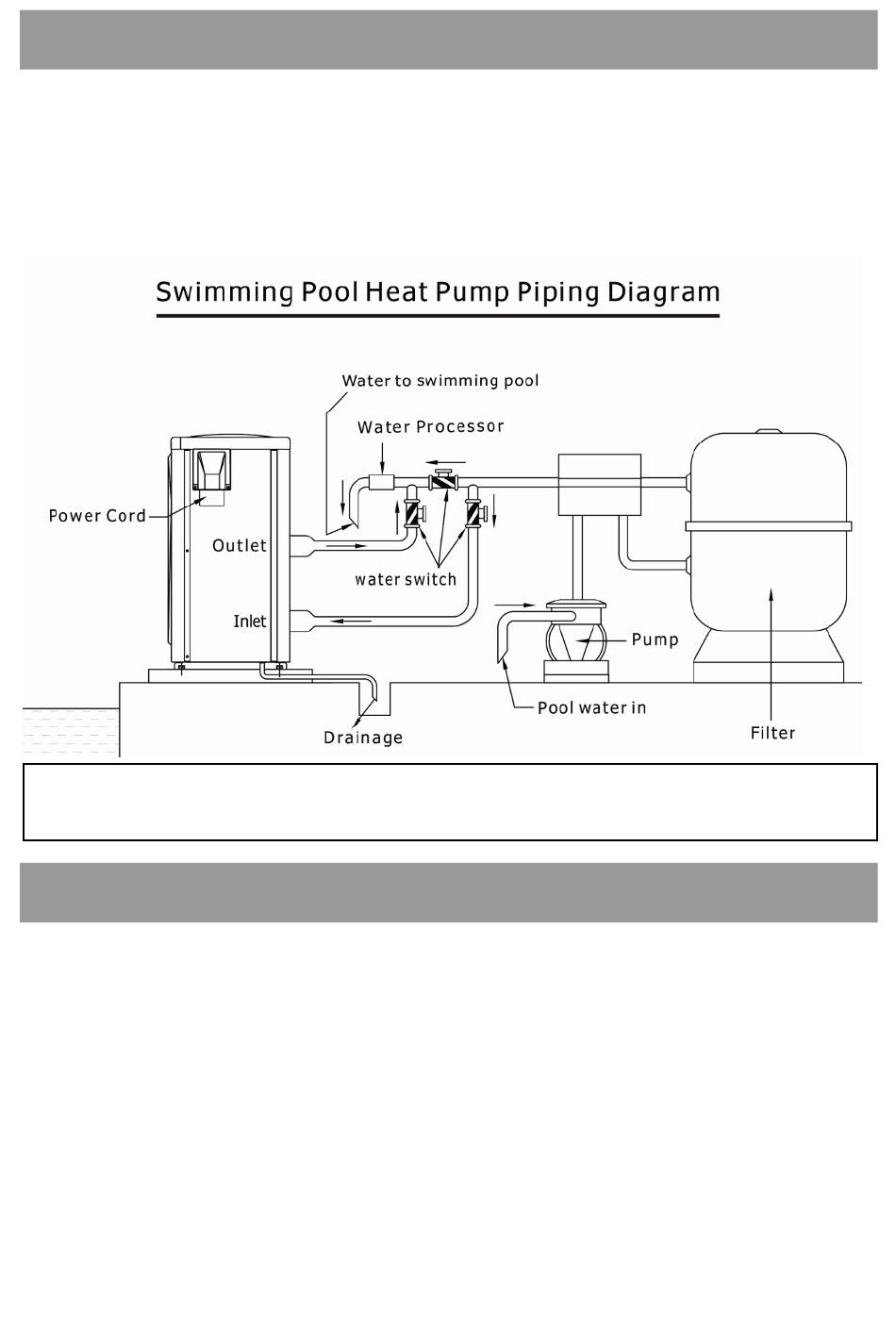

Noted: The drawing is just for demonstration, and layout of the pipes for reference.

Electric connection

- Wiring must be handled by a professional technician according to the circuit diagram as
following.
- Connect the heat pump to appropriate power supply and the voltage should comply with
the rated voltage of each model stated on the specification.
- Make sure the machine is ground well.
- Always put leakage protector according to the local code for wiring (leakage operating
current ≤ 30mA).
- Protect the circuit with a suitable circuit breaker or fuse.
