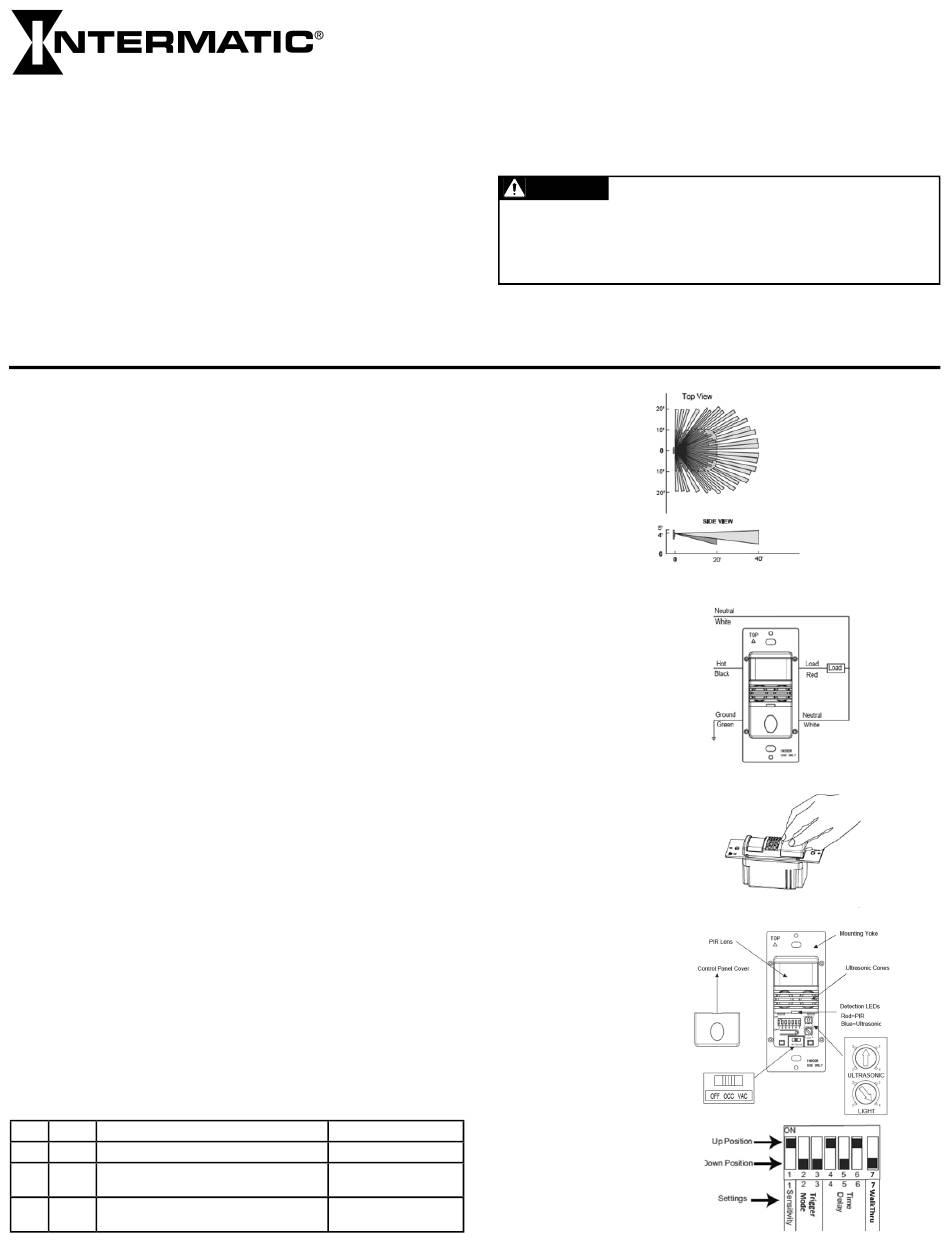

MODEL: IOS-DOV-DT
INSTALLATION AND CONFIGURATION INSTRUCTIONS
Ratings:
Voltage: 120/277 VAC, 50/60 Hz
Incandescent : 800 W, 120 VAC, 50/60 Hz
Electronic Ballast: 5 A, 120/277 VAC, 50/60 Hz
Motor: 1/4 HP, 120 VAC, 50/60 Hz
Adjustable Ambient Light Level: 10 fc to Daylight
Selectable Time Delay: 15 sec to 30 min (DIP switch)
Walk Through Mode: 3 min if no activity after 30 sec
Test Mode: 15 sec upon initial power-up
PIR Sensitivity Adjustment: 50% or 100% (DIP switch)
Ultrasonic Sensitivity Adjustment: 30% to 100%
Coverage - PIR: up to 1200 ft (110
2
Ultrasonic: up to 400 ft
Temperature Range: 32° F to 122 °F (0° C to 50° C)
DESCRIPTION:
The IOS-DOV-DT series Dual Technology Occupancy Sensors In-Wall sensor switch controls
a load based on occupancy, vacancy and ambient light levels. It combines passive infrared
(PIR) and ultrasonic technologies to help avoid false triggering while increasing presence
detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either
or both technologies detect occupancy. If no movement is detected for a user-specifi ed time
of 15 seconds to 30 minutes, the load is turned OFF. The sensor provides a 180° coverage
pattern, up to 1200 ft
2
(110 )
m2
LOCATION/MOUNTING
Since this device responds to temperature changes, care should be taken when mounting
the device. DO NOT mount directly above a heat source, in a location where hot or cold drafts
will blow directly on the sensor, or where unintended motion will be within the sensor's
fi eld-of-view.
INSTALLATION
1. Make sure power is turned off at main disconnect.
2. Remove existing single pole switch or dimmer installation, if applicable.
3. Remove 3/4" (1.9 cm) of insulation from each circuit conductor. Make sure the ends of
wires are straight.
4. Connect lead wires as shown in WIRING DIAGRAM (see Figure 2): Black lead to Line
(Hot), Red lead to Load wire, White lead to Neutral wire, Green lead to Ground.
5. Gently position wires in wall box, attach sensor switch to the box.
6. Mount device "TOP" up.
7. Restore power at circuit breaker or fuse, wait one minute.
8. Remove the small cover plate by lifting from bottom edge (see Figure 3).
9. Locate the adjustment knobs on the control panel to perform tests and adjustments
(see Figure 4).
10. Replace the small cover plate after testing and adjusting.
11. Attach the wall plate.
SENSOR ADJUSTMENT
Remove the cover from the sensor.
NOTE: There is a 40 sec warm-up period when power is fi rst applied to unit.
The sensors are factory preset to allow for quick installation in most applications. Follow
this procedure to verify the sensor coverage and customize the settings.
BAND SWITCH
Sensor has the ability to be set as an occupancy or vacancy sensor. The main difference is that when set to
vacancy mode the load will only turn ON with the push button.
Mode Position Description
OFF Left Circuit is permanently open
OCC Center Occupancy Mode: Automatic ON, Automatic OFF
after set time delay.
VAC Right Vacancy Mode: Manual ON only, Automatic OFF
after set time delay
)
m2
2 (37 m2 )
for PIR and 400 ft for Ultrasonic sensor.
2
(37 )
m2
React to the push button
None
Manually toggles the load
ON/OFF.
Manually toggles the load
ON/OFF.
Dual Technology
PIR/Ultrasonic
In-Wall Occupancy / Vacancy
Sensor Switch
Risk of Fire or Electric Shock
WARNING
• Disconnect power at the circuit breaker(s) or fuses before installing or servicing.
• Installation and/or wiring must be in accordance with national and local electrical code
requirements.
• Use COPPER conductors ONLY.
• Indoor dry location use only.
• Do not exceed electrical ratings.
Figure 1
Figure 2
Figure 3
Figure 4
PIR Coverage: 1200 ft 2 (110 m2 )
Ultrasonic Coverage: 400 ft (37 )
2 m2
