GM40AVE-RD89 Series General Purpose Electronic Commercial Time Switches
Installation Instructions
Risk of Fire or Electric Shock
WARNING
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.
• More than one circuit breaker or disconnect switch may be required to de-energize the equipment before
servicing.
• Do not use the manual shut-off position of the timer for equipment servicing. Always disconnect the power
at the circuit breaker(s) or disconnect switch(es).
• Installation and/or wiring must be in accordance with national and local electrical code requirements.
• This Time Switch is designed to control one or two single phase loads. Do not use to directly control three
phase loads. Consult a qualified electrician if you are required to control three phase equipment.
• Some terminals in the Time Switch may be energized even if the yellow and green LED indicators are OFF.
• The circuit conductors shall have an ampacity not less than the maximum total load to be controlled.
• For all connections, use COPPER conductors ONLY – min. #8 AWG wires for 40 A loads, or #10 AWG wires
for 30 A loads, min. 90°C (194°F)
• Over current protection shall have an interrupting rating sufficient for the application control circuit voltage
and the total load current of the equipment being controlled.
• A fuse or circuit breaker shall be connected in series with each ungrounded conductor (and shall be able
to simultaneously open each conductor.
• Check all terminals and wires with an appropriate voltage meter before touching.
• This enclosure does not provide grounding between conduit connections. When metallic conduit is used,
you must also install grounding type bushings and jumper wire, in accordance with the (NEC) National
Electrical Code requirements.
• For outdoor locations or wet locations (rain-tight), conduit hubs that comply with requirements of the
UL514B (standard for fitting conduit and outlet boxes) are to be used.
• Replace plastic insulator covering terminals before powering ON.
NOTICE
• Rotate timer dial clockwise only.
• Do not move the clock hands on the timer. Moving the clock hands can damage the timer.
• Jumper wires are not included.
• Alterations or modifications to the device will void warranty.
Read instructions completely before installation and retain this booklet for future reference.
APPLICATION
The GM40AVE-R Series Time Controls are universal, electronic time switches designed for general
purpose commercial applications. The control operates on any AC voltage from 120 VAC to 277 VAC.
The mechanism is mounted in an indoor/outdoor enclosure to control lighting, heating, air
conditioning, pumps, motors, or general electrical circuits in residential, commercial, industrial and
agricultural facilities.
INSTALLATION INSTRUCTIONS
1. Open door and remove the interior protective cover by releasing the spring latch (See Figure 1).
2. Remove the printed circuit board by releasing the spring latch holding the bottom of the board (see
Figure 1).
3. Select knockouts to be used. Remove the inner 1/2" knockout by inserting a flathead screwdriver
in the slot and carefully punch the knockout loose. Remove slug. If 3/4" knockout is required,
remove the outer ring with pliers after removing the 1/2" knockout. Smooth edge with knife, if
necessary.
4. Place the enclosure in the desired mounting location, and mark the three mounting holes (refer to
Figure 2 for dimensions).
5. Install the top screw first with one of the supplied spacers, and then hang the enclosure by the
keyhole.
6. Drive the remaining two screws at the bottom of the enclosure through the mounting holes while
passing each screw through one of the supplied spacers and in to the wall.
7. Connect conduit hubs to conduit before connecting the hubs to the enclosure. After inserting hubs
into enclosure, carefully tighten hub lock nut. Do not over-torque.
8. Replace printed circuit board making sure to engage spring latch at the bottom of PCB.
9. Connect wiring in accordance with national and local electrical and safety codes (see wiring
diagrams).
10. Grounding: Terminate all ground wires to the ground lug inside the case at the bottom of the
enclosure.
11. Replace interior protective cover.
12. Close the enclosure door.
PROGRAMMING
The installer should refer to the supplemental instruction manual included with this unit for information
regarding setting the time, symbols, keys and programming.
All manuals and user guides at all-guides.com
ELECTRICAL RATINGS
NO Contacts: WIRING CONNECTIONS:
40 A Resistive, 120-277 VAC
30 A Ballast, 120 VAC
ENVIRONMENTAL RATINGS:
20 A Ballast, 277 VAC
15 A Tungsten, 120 VAC
300 VA Pilot Duty, 120-240 VAC
1 HP, 16 FLA, 90 LRA @ 120 VAC
2 HP, 12 FLA, 52 LRA @ 208-277VAC
ENCLOSURE DIMENSIONS:
NC Contacts:
30 A Resistive, 120-277 VAC
10 A Ballast, 277 VAC
SHIPPING WEIGHT:
2 A Tungsten, 120 VAC
1 HP, 12 FLA, 30 LRA @ 120 VAC
2 HP, 10 FLA, 30 LRA @ 240 VAC
Interior Protective Cover
Timer
Mechanism

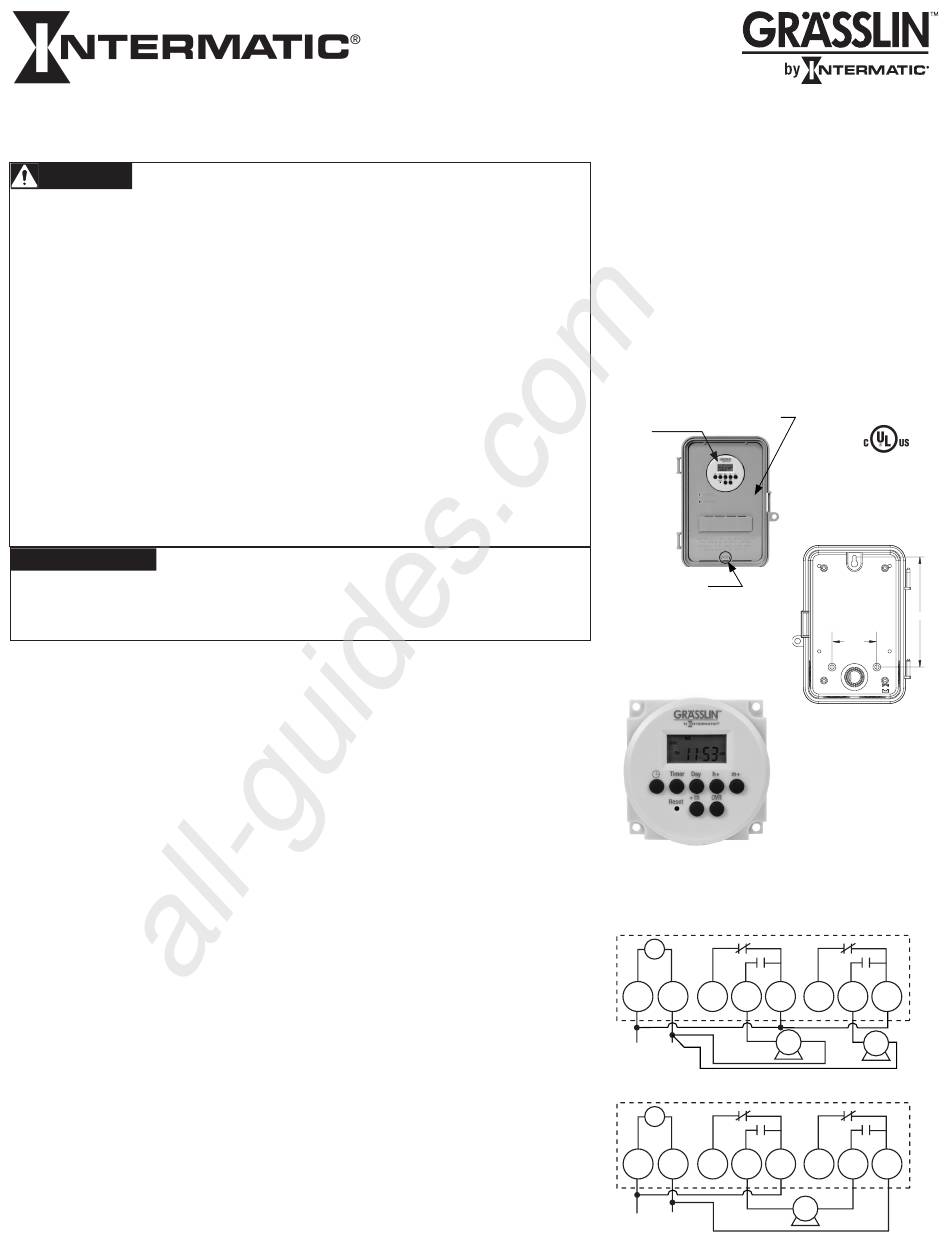

Figure 1 - Spring Latch

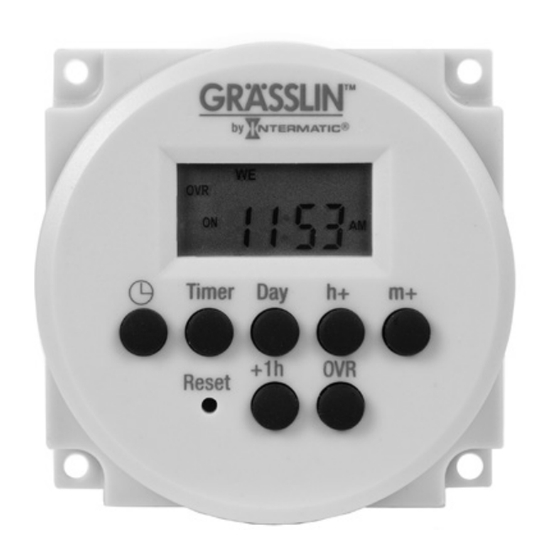

GM40AVE-R Digital timer controls
GM40AVE-R SERIES TERMINAL DESIGNATIONS
120/277 VAC Application Two Loads
T
TIMER
L 1 L 2/N NC NO COM
LOAD
#1
L N
208/240 VAC Application One Load
T
TIMER
L 1 L 2/N NC NO COM
L1 L2
Screw box lug terminals
Operating Temperature Range:
-13° F to 131° F (-25° C to 55° C)
Operating Humidity:
10-95% RH, non-condensing
8.795" H x 6.631" W x 2.935" D
2 lbs.
6-1/8"
2-1/2"
Figure 2 - Rear View of
Enclosure with mounting hole
dimensions
NC 2 NO 2 COM2
LOAD
#2
NC 2 NO 2 COM2
LOAD
#1
