Congratulations on purchasing your Reloop RUF-1 HH, RUF-1 HS, RUF-2 HH or RUF-2 HS. Thank you for placing your trust in our technology.
Before operating this equipment we ask you to carefully study and observe all instructions.
Please remove the Reloop RUF-1 HH, RUF-1 HS, RUF-2 HH or RUF-2 HS from its packaging. Check before initial operation to make sure that the
device has not been visibly damaged during transport. If you detect any damage to the power cable or the casing, do not operate the device.
Contact your specialised dealer.
SAFETY INSTRUCTIONS
1.
For reasons of safety and approval (CE) the personal reconstruction and/or modification of these products is prohibited. Please observe that
damage caused by modifications performed manually to this device is not covered by the implied warranty.
2.
These products leave our works in a perfect condition. Please observe all notes in these operating instructions to warrant this condition and
the safe operation of the products!
3.
Any damage caused as a result of the non-compliance with these operating instructions leads to the expiration of any implied warranty claim.
The manufacturer does not accept liability for any damage to property or for personal injury resulting from the improper handling of the pro-
ducts, or non-observance of the operating instructions.
4.
If used for any purpose other than described in these operating instructions, the products may suffer damage and the implied warranty ex-
pires. Also, any other use is linked with risks such as short circuits, fire, electrical shock, etc.
5
The inside of the device does not contain any parts which require maintenance, with the exception of wear parts that can be exchanged from
the outside. Qualified staff must carry out maintenance, otherwise the warranty does not apply!
6.
Ensure that the power supply is only activated following the complete installation of the device and wiring of all connections. Always plug in
the mains plug last. Ensure that the mains switch is in the „O" position when connecting the device to power.
7.
Only use cables that comply with regulations. Observe that all jacks and bushes are tightened and correctly hooked up. Refer to your dealer
if you have any questions.
8.
Ensure that when setting up the product the mains cable is not pinched or damaged by sharp edges.
9.
Prevent the mains cable from coming into contact with other cables! Exercise great care when handling mains cables and connections. Never
touch these parts with wet hands!
10. Connect the power cable exclusively to appropriate outlets. The only supply point to be used is a supply outlet in accordance with specifica-
tions of the public supply network.
11.
Disconnect the device from the supply outlet when not in use and before cleaning! Be sure to hold the mains plug by the body. Never pull the
mains cord!
12. Position the device on a horizontal and stable low-flame base.
13. Avoid any concussions or violent impact when installing or operating the device.
14. When selecting the location of installation make sure that the device is not exposed to excessive heat, humidity, and dust. Be sure that no
cables lie around openly. You will endanger your own safety and that of others!
15. Do not rest any containers filled with liquid that could easily spill onto the device or in its immediate vicinity. If, however, fluids should access
the inside of the device, immediately disconnect the mains plug. Have the device checked by a qualified service technician before re-use.
Damage caused by fluids inside the device is excluded from warranty.
16. Do not operate the device under extremely hot (in excess of 35° C) or extremely cold (below 5° C) conditions. Keep the device away from direct
exposure to the sun and heat sources such as radiators, ovens, etc. (even during transport in a closed vehicle).
17. The device must not be operated after being taken from a cold environment into a warm environment. The condensation caused hereby may
destroy your device. Do not switch on or operate the device until it has reached ambient temperature!
18. Controls and switches should never be treated with spray-on cleaning agents and lubricants. This device should only be cleaned with a damp
cloth. Never use solvents or cleaning fluids with a petroleum base for cleaning.
19. When relocating the device should be transported in its original packaging.
20. Devices supplied by voltage should not be left in the hands of children. Please exercise particular care when in the presence of children.
21. At commercial facilities the regulations for the prevention of accidents as stipulated by the association of professional associations must be
observed.
22. At schools, training facilities, hobby and self-help workshops the operation of the device must be monitored with responsibility by trained staff.
23. Keep this operation manual in a safe place for later reference in the event of questions or problems.
APPLICATION IN ACCORDANCE WITH REGULATIONS
Reloop RUF-1 HH:
Reloop RUF-1 HS:
- 1 x stationary 1-channel rack re-
- 1 x stationary 1-channel rack re-
ceiver with power pack
ceiver with power pack
- 1 x Reloop hand-held microphone
- 1 x Reloop Microphone Headset
with wireless transmitter
with Bodypack Transmitter
-
This device is a wireless microphone set to be connected to an amplifier or a mixing console with mic input.
-
If the devices are used for any other purposes than those described in the operation manual, damage can be caused to the product, leading to
exclusion of implied warranty rights. Moreover, any other application that does not comply with the specified purpose harbours risks such as
short circuit, fire, electric shock, etc.
-
The serial number determined by the manufacturer must never be removed to uphold the warranty rights.
-
The UHF receiver mains adaptor is authorised for connection to 110-240 V, 50/60 Hz only and is designed exclusively for indoor application.
-
Please observe that the operation of wireless microphones in the Federal Republic of Germany on specified carrier frequencies are subject to
registration prior to operation with the Federal Network Agency. Certain rates apply. For more information go to www.bundesnetzagentur.de.
-
Prior to operating this mic outside of Germany, be sure to obtain information about the applicable regulations of your country pertaining to
the mandatory registration of UHF frequencies and register your wireless mic, if necessary, accordingly. Your specialised dealer is happy to
assist you.
6
Reloop RUF-2 HH:
Reloop RUF-2 HS:
- 1 x stationary 2-channel rack re-
- 1 x stationary 2-channel rack re-
ceiver with power pack
ceiver with power pack
- 2 x Reloop hand-held microphone
- 2 x Reloop Microphone Headset
with wireless transmitter
with Bodypack Transmitter
OPERATING ENVIRONMENT
The products must be operated and stored in a dry environment only! Splash water, rain, humidity, fog may cause serious damage. The limit value
for relative humidity is 50% at 45°C.
The products must be operated at a temperature range of between -5 °C and 45 °C only. Protect the products against direct exposure to sunlight
or other heat, such as from radiators!
If the products are taken from a cold environment into a warm environment they must only be taken into operation once they have reached ambi-
ent temperature, since the condensation created by the difference in temperature may destroy the products!
Protect the products against dust!
OPERATION

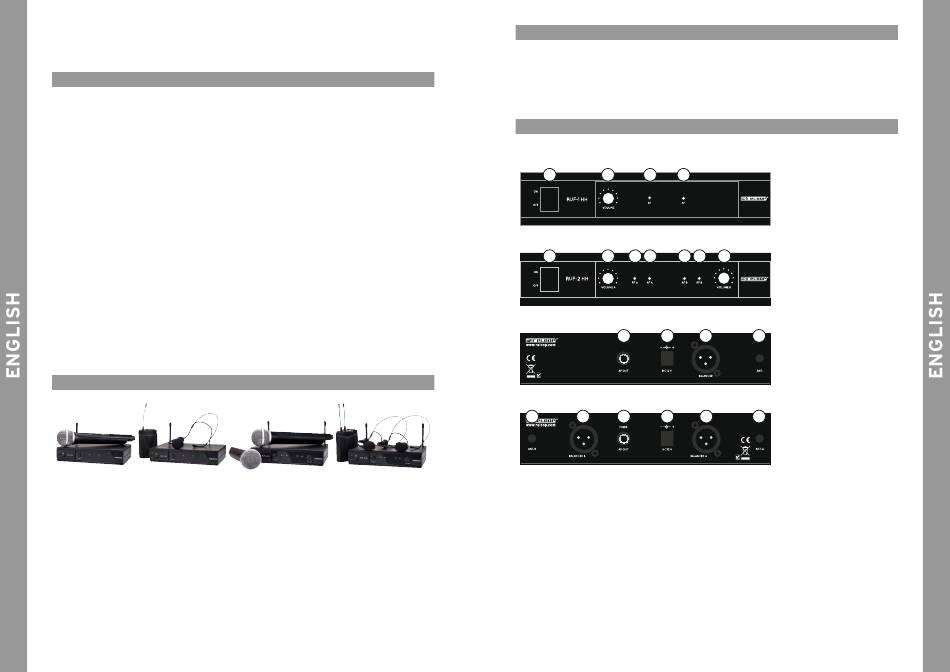

Controls
Front Panel UHF receiver RUF-1 HH, RUF-1 HS
1
4
2
3
Front Panel UHF receiver RUF-2 HH, RUF-2 HS
1
4
2
3
3
2
Rear Panel UHF receiver RUF-1 HH, RUF-1 HS
7
8
Rear Panel UHF receiver RUF-2 HH, RUF-2 HS
5
6
7
8
1.
ON/OFF switch
2.
Signal indicator
3.
Intensity level display
4.
Volume control
5.
Aerial connection
6.
Microphone output (XLR)
7.
Microphone output (1/4" jack plug)
8.
Connection adaptor
4
6
5
6
5
7
