CYBEX SwitchView SC4 UAD Guide D'installation Rapide

QUICK INSTALLATION GUIDE
The following instructions will help you
install your SwitchView SC4 UAD switch.
Should you require further assistance,
please contact Avocent Technical Support.
Connecting local peripherals
1
Turn off all servers you plan to use with
your SwitchView SC4 UAD switching
system. Plug the DVI-I monitor cable
into the appropriate CONSOLE port on
the back of the switch. Plug the USB
keyboard cable and USB mouse cable
into the appropriate ports. Plug the
speaker cable and microphone cable
into the appropriate ports.
Connecting your servers
2
The SwitchView SC4 UAD switching
system has four ports labeled A-D on
the rear of the switch. Plug the USB
cable, the two audio cables (speaker
and microphone) and the DVI-I cable
(monitor) into the corresponding ports
on the server. Plug the other ends into
one of the server port sets on the switch.
Repeat for all servers.
NOTE: Cable sets without audio cables
are available if you do not require
speaker and microphone support.
Turning on your system
3
Plug one end of the included power cord
into the IEC power connector on the
switch. Plug the other end of the power
cord into an AC wall outlet. Turn on all
attached servers.
4 Switching your servers
Press the appropriate front panel button,
labeled A-D, to access servers in your
SwitchView switching system.
To Contact Avocent Technical Support: Visit www.avocent.com
Avocent, the Avocent logo, Cybex and SwitchView are registered trademarks of Avocent Corporation or its affiliates in the U.S. and other countries. All other marks are the property of their respective owners. ©2010 Avocent Corporation.

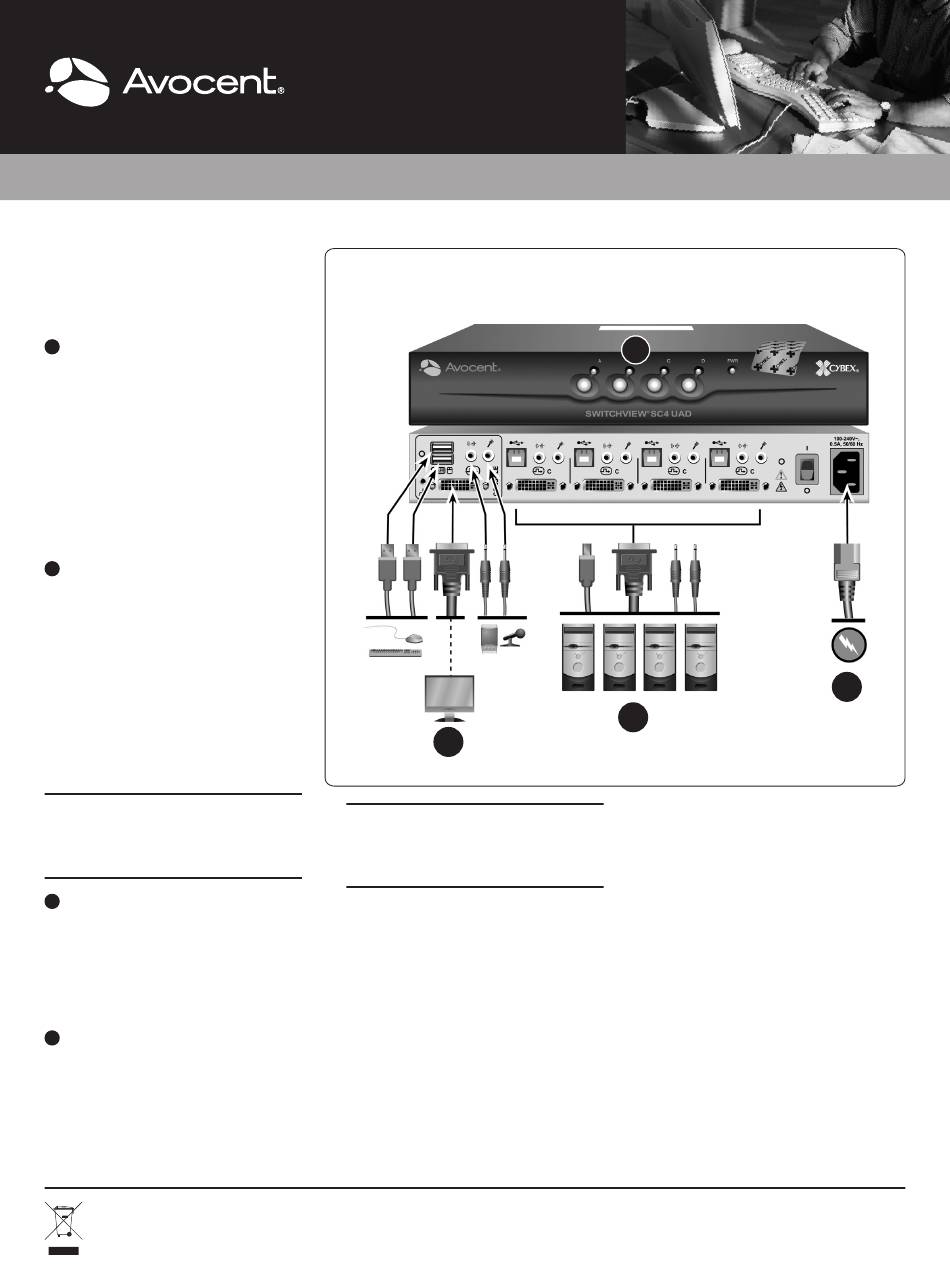

SwitchView SC4 UAD
®
SwitchView SC4 UAD switch shown
1
NOTE: This switch has tamper evident
seals. Broken or removed seals will void
the warranty.
LEDs
Each target port (A-D) has a single
bi-color LED on the front panel. The LED
will turn green when the target device
is on and connected to the switch. The
LED will change to amber when the
target device is selected (KVM session).
4-Port DVI-I/USB Switch with Audio
4
2
Supported Hardware
The SC4 UAD switch supports a
DVI monitor and video card, VGA
monitor and video card (with adaptor),
speakers, microphone, USB keyboard
and USB mouse.
Environmental
Operating Temperature:
41˚ (5˚C) to 104˚ (40˚C)
Storage Temperature:
-4˚ (-20˚C) to 122˚ (50˚C)
Input Power: 60 W; Operating Voltage
100-240 VAC
Power Frequency: 50-60 Hz
3
590-609-616C
