Limit 1080-R/1080-G
OPERATION MANUAL
English
Limit 1080-R/1080-G main features:
• High visibility crossline laser with one horizontal line 360º and two vertical 360º lines 90 degrees'
perpendicular.
• Compact size for easy carrying.
• IP54 housing.
• Self-levelling with magnetic pendulum damping.
• Lines that can be light separately or together.
• Mechanical locking of pendulum mechanism acts as both the main switch and transport locking.
• Lines start flashes and a buzzer start sounding if the slope is outside self-levelling range.
• Self- levelling can be disconnected to show an inclined plane.
• Function for enabling use of optional receiver.
Important notice: Please check the accuracy before using.
Safety:
Caution: Laser radiation is emitted from this product
Do not stare directly into the laser beam. It can cause serious eye damage. Therefore, never stare directly into
beam or view directly with optical instrument and avoid to place instrument at eye level.

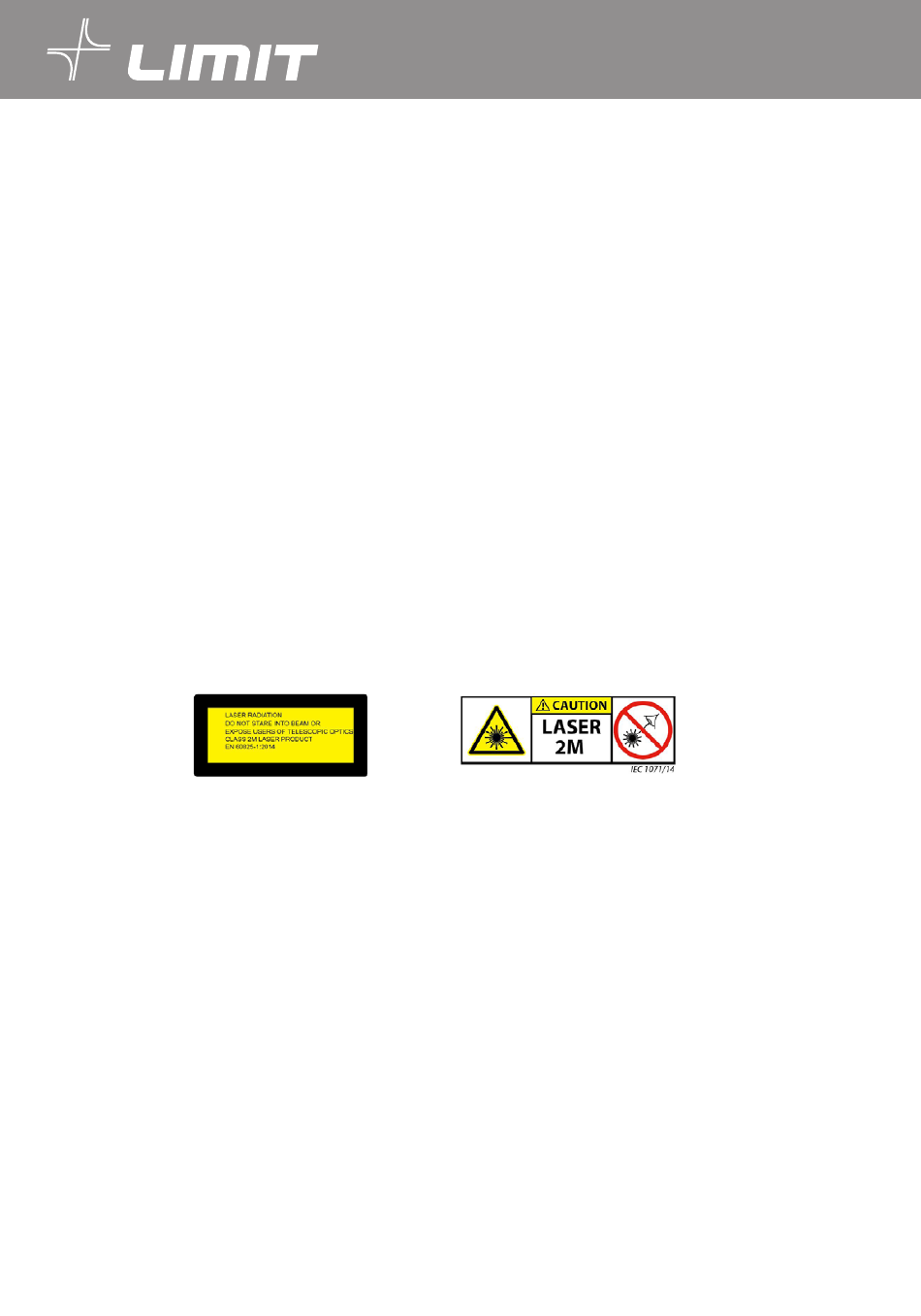

These symbol is attached to the instrument:
Care and handling:
This is a precision instrument and should be treated accordingly. Avoid shock, drop and vibration. Turn off
the main switch during transport. Always store the laser dry. Remove the batteries if the instrument is not
used for a long time. Clean with a soft, dry cloth.
Specifications:
Wave length:
Working range:
Self-levelling range:
Laser safety class:
Horizontal accuracy:
Vertical accuracy:
Operating temperature:
Housing:
Power:
Operating time:
Size:
Net weight:
1080-R: 635 nm laser diode.
1080-G: 515-520 nm laser diode.
Up to 30 m(radius) or up to 50 m(radius) with detector.
± 3°.
Class 2M.
±2 mm/10 m.
±2 mm/10 m.
-5 °C ~ 40 °C.
IP54
4xAA size batteries.
Li-ion battery as option.
AA battery: 1080-R: 6 H 1080-G: 3 H with all lasers on.
Li-ion battery: 1080-R: 8 H 1080-G: 4 H with all lasers on.
125x82x122 mm. (Including cone window height)
560 g.
