Matco Tools GG50B Instructions De Fonctionnement

PISTIOLA LUBRICANTE NEUMÁTICA DE DISPARO SENCILLO
PISTOLET GRAISSEUR PNEUMATIQUE À UN COUP UNIQUE
AIR OPERATED SINGLE
SHOT GREASE GUN
S P E C I F I C A T I O N S
Pump Ratio (max): ................................. 40:1
Output per Stroke: .................................. 2 ml
Pneumatic Inlet Pressure (min): ......... 40 PSIG
Pneumatic Inlet Pressure (max): ........ 90 PSIG
Grease Output Pressure: ............... 3,600 PSIG
Grease Reservoir Capacity: ...................14 oz
Operating Temperature Range: ......... 14˚-104˚
Weight (empty): ...................................2.2 lbs
Lubricant up to NLGI: ......................#2 Grease
Pneumatic Port Inlet:........................ 1/4" NPT
Grease Port Outlet: ........................... 1/8" NPT
READ THIS INSTRUCTION MANUAL CAREFULLY AND UNDERSTAND ALL INFORMATION BEFORE OPERATING THIS TOOL.
ALWAYS WEAR SAFETY GOGGLES.
DO NOT EXCEED 40 psig WITH HOSE OR 100 psig WITH SOLID EXTENSION. TO DO SO MAY CAUSE
PERSONAL INJURY.
EXTREME PRESSURE MAY CAUSE WHIP HOSE TO BURST. USE ONLY APPROVED HOSES AND FOLLOW THE HOSE INSTRUCTIONS AND WARNINGS.
THIS AIR OPERATED GREASE GUN CAN DEVELOP HIGH PRESSURES - UP TO 3,600 psig. USE SAFETY GLASSES AND GLOVES WHILE OPERATING THE GUN.
KEEP HANDS CLEAR OF THE EXPOSED RUBBER PORTION OF THE HOSE WHILE OPERATING THE GUN WITH HOSE.
IF FLUID APPEARS TO PENETRATE THE SKIN, SEEK IMMEDIATE MEDICAL ATTENTION.
DO NOT TREAT AS A SIMPLE CUT.
BE SURE THE TRIGGER IS NOT DEPRESSED WHEN ATTACHING THE GUN TO AN AIR INLET HOSE.
AVOID ACCIDENTAL STARTING.
HOLD THE HOSE ONLY BY THE METAL SPRING GUARDS ON THE END.
DO NOT ALLOW THE HOSE TO KINK. DO NOT BEND THE HOSE IN A TIGHT RADIUS.
REPLACE THE HOSE AT FIRST SIGN OF WEAR, KINK OR DAMAGE TO THE OUTSIDE JACKET.
USE ONLY HIGH PRESSURE GREASE GUN HOSE AS A REPLACEMENT.
THIS PRODUCT MAY CONTAIN CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
WASH HANDS THOROUGHLY AFTER HANDLING.
FAILURE TO HEED THESE WARNINGS MAY RESULT IN SERIOUS OR FATAL PERSONAL INJURY, PROPERTY DAMAGE OR BOTH.

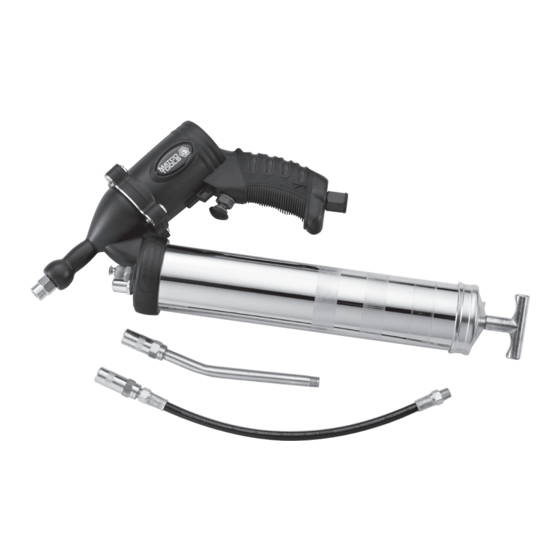

The pistol-style, Single Shot Air Grease Gun is a
specially designed, high quality, professional air tool
for automotive, truck and industrial applications.
WARNING
FOR YOUR SAFETY AND TO PREVENT INJURY:
GG50B
• Operating Instructions
• Warning Information
• Parts Breakdown
Copyright © Professional Tool Products, 2016
All rights reserved.
