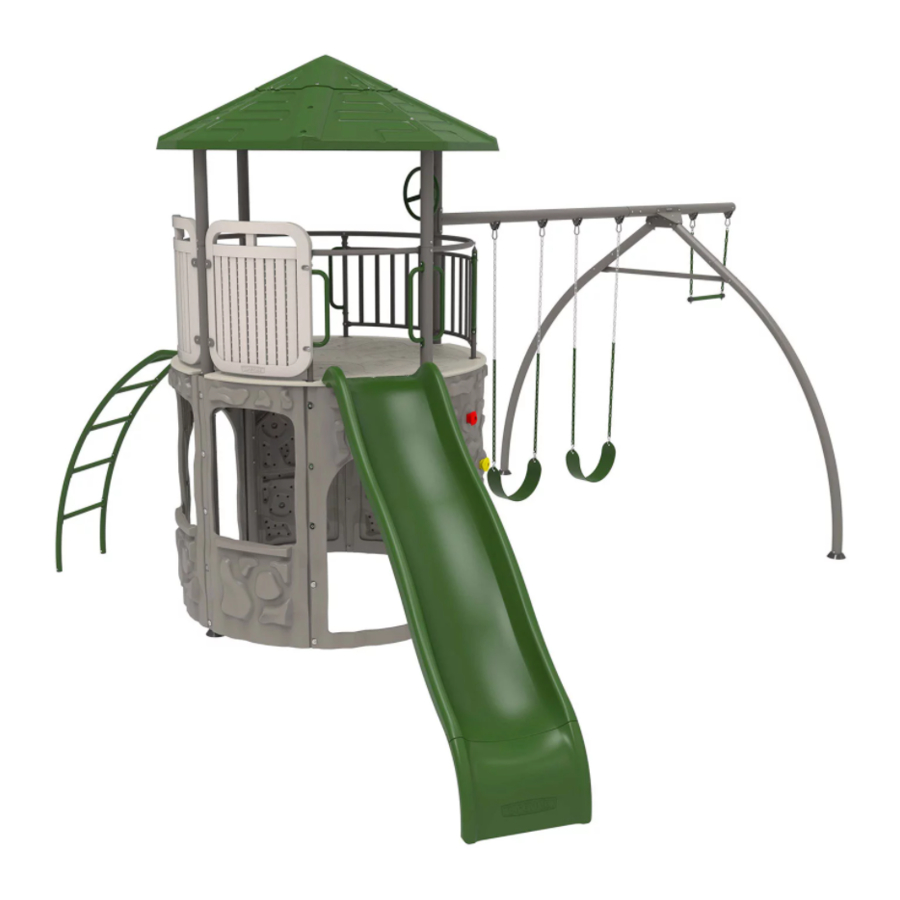

ADVENTURE TOWER
DELUXE PLAYSET
MODEL #60091
MODEL 290633
BEFORE ASSEMBLY:
• Prepare a level surface with the proper safety zone
(see page 12).
• 3 people recommended for setup
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (≈13 mm)
(1)
(2)
3/8" (≈10 mm)
5/16" (≈8 mm)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
1/2" (≈13 mm)
(1)
3/16" (≈5 mm)
(1)
(3)
(1)
(1)
Live Chat: www.lifetime.com
(click on "Ask An Expert" tab)
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
1/2" (≈13 mm)
(2)
(2, included)
(1)
(1)
For Customer Service in Mainland
Europe and the United Kingdom:
E-mail: cs@lifetimeproducts.eu
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Safety Information.....................6
(1)
Safe Play Area...........................12
Tower Frame Assembly..............13
Swing Bar Assembly..................28
Deck Assembly..........................36
Parts Identifi er.........................i-iv
Roof Assembly..........................52
(1)
Tower Walls Assembly................59
Climber, Slide & Swing
Assembly............................70
Anchor Kit Installation...............81
Maintenance Instructions..........86
Registration...........................91
Warning Sticker........................92
(1)
Warranty..............................93
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 290633
Product ID:
