9 Layout and function

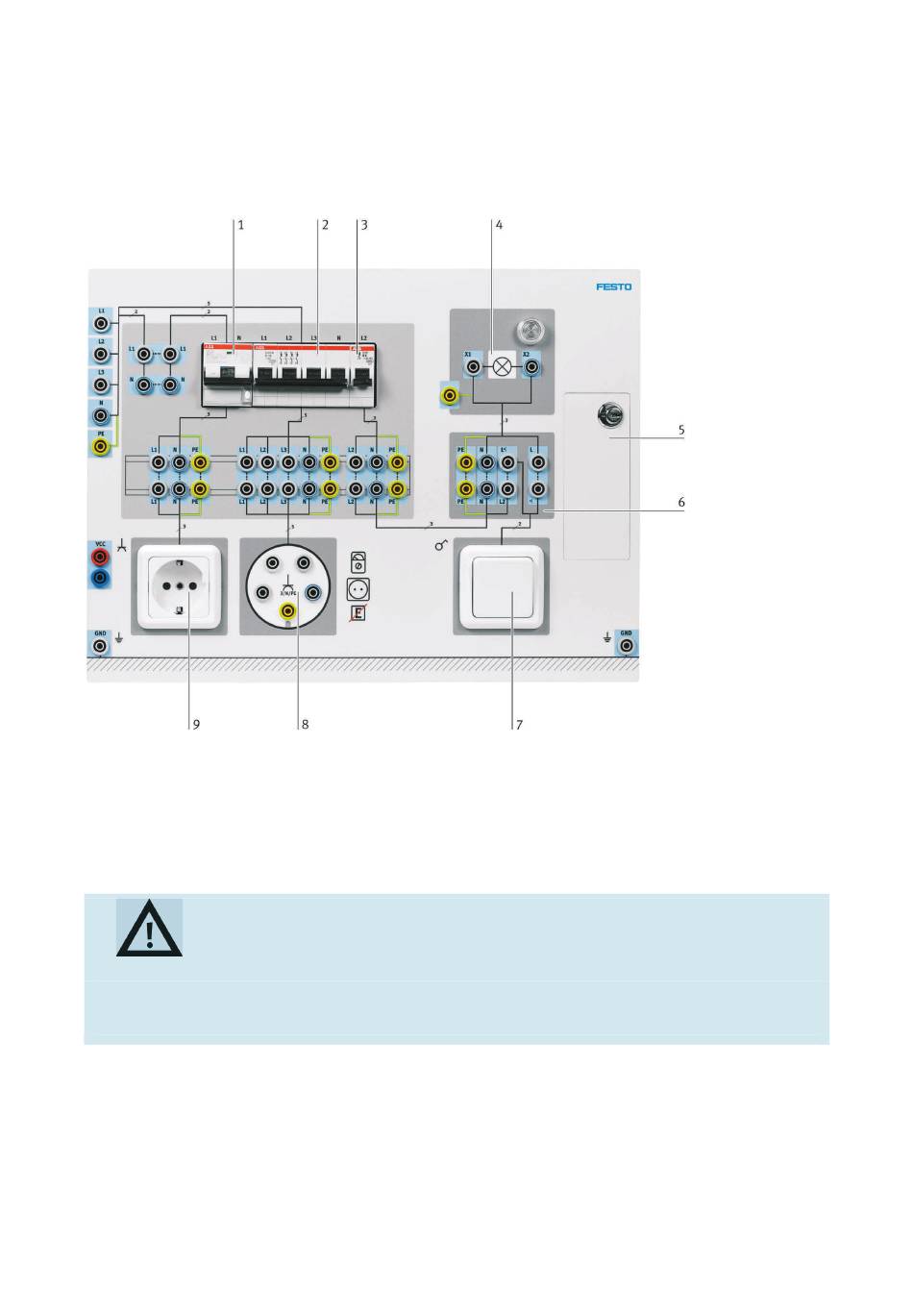

The Sub-distributor EduTrainer
in an A4 frame or on a table.
1
2-pole RCCB, B13, 30 mA
2
4-pole circuit breaker, C16
3
Single-pole circuit breaker, B6
4
Lamp
5
Fault generator cover
All components included with the Sub-distributor EduTrainer
purposes.
26
is accommodated in a console housing with rubber feet. It's suitable for use
®
6
7
8
9
Junction box
Light switch
3-phase outlet
Earthing contact socket
®
may only be used for measuring
© Festo Didactic 8049691
