PRO ACCESS
TM
LPWKP
Digital Keypad
Operation Instructions
GTO Access Systems, LLC
(850) 575-0176
USA & Canada (800) 543-4283
www.gtoaccess.com

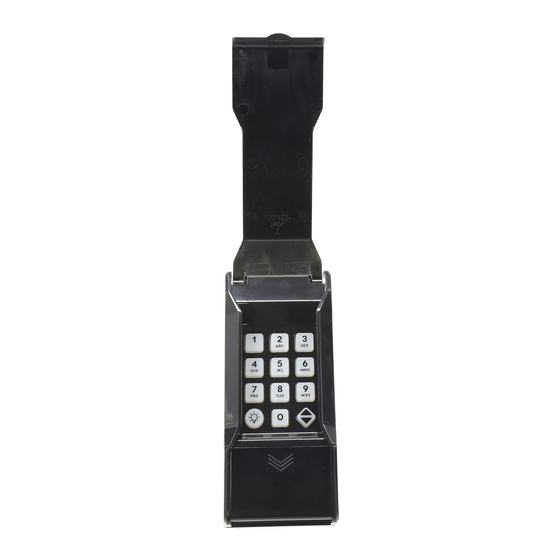

KEYPAD FEATURES
HINGED COVER
PROTECTS THE KEYPAD
TEN KEYS ENTERING 1-6 KEYPAD CODES
USING NUMBERS OR LETTERS
SOFT BLUE LIGHTS ILLUMINATE
THE KEYS FOR NIGHTTIME USE.
PRESS LIGHT BUTTON TO ACTIVATE
ENTER USER CODE AND PRESS LIGHT
BUTTON TO TURN THE
OVERHEAD OPERATOR LIGHT ON OR OFF
BUTTON STAYS ACTIVE FOR 30
SECONDS AFTER A CODE IS USED SO THE
OPENER CAN BE STOPPED OR REVERSED
KEYPAD OPERATION
DOOR OPERATION
1
ENTER USER KEYPAD CODE
2 PRESS
NOTE: PRESS BUTTON TO TURN KEYPAD
BACKLIGHT ON FOR NIGHTTIME OPERATION
NOTE: TO STOP OR REVERSE THE OPENER, THE
BUTTON CAN BE PRESSED AGAIN FOR UP TO 30
SECONDS WITHOUT RE-ENTERING THE CODE
OVERHEAD LIGHT OPERATION
1 ENTER USER KEYPAD CODE
2 PRESS
NOTE: THE OVERHEAD LIGHT CANNOT BE OPERATED
FROM THE KEYPAD UNLESS THE DOOR IS OPEN
Printed in China for GTO Access Systems, LLC.
DESCRIPTION
This digital keypad is a MegaCode series of wireless radio controls designed for use with automatic garage
door and gate operators. The MegaCode radio format provides unparalleled security with more than a million
different codes.
In operation, the user enters their unique code on the unit's keypad (1 to 6 digits long) and presses
the button to activate the door operator. For up to 30 seconds after the last activation, the keypad can
be re-triggered by simply pressing the
quickly, without having to re-enter their code.
The keypad has built-in keypad lighting for use at night or in dark areas. The clear silicone keys are backlit
with a soft blue glow. Press the light button at any time to activate the keypad backlight.
To turn the overhead operator light on or off, enter the user code, then press the
The keypad lockout timer will disable the keypad after 10 activations. The keypad must remain idle for 30
seconds before new attempts.
MegaCode receivers are programmed by sending a signal from the user's transmitters. This stores the
transmitter's code into the receiver's memory. The receiver will retain its memory even without power and
will only activate from these "memorized" transmitters. Each keypad code can be considered a different
transmitter. Each MegaCode receiver can remember a maximum of 10 transmitter codes. Any combination of
portable transmitters and keypad codes up to the maximum number can be entered.
PROGRAMMING OPERATORS
1 Refer to the instructions provided with the garage door opener
to set it into "learn" mode.
Press the opener's LEARN BUTTON for 1 second and release.
The opener should BEEP and the LIGHT should BLINK once.
The RED LED will remain lit in Learn Mode for 15 seconds.
While the RED LED is lit, enter a 1-6 digit code into the
2
keypad. Then PRESS and HOLD the keypad's
the opener BEEPS and the light BLINKS once.
Repeat Steps 1 & 2 for any additional keypad codes.
DELETING A KEYPAD CODE
To delete a keypad code that you no longer want follow the
same steps above. The opener will recognize the code and
delete it from memory. The RED LED and LIGHT will blink 4
times to show the code was successfully deleted.
CHANGING BATTERIES
1
SLIDE BATTERY
COVER OPEN
3 INSTALL 3 FRESH
AAA BATERIES
Follow the steps in the diagram and use caution to keep batteries away from
children.
Replace old batteries with fresh AAA Alkaline batteries.
Properly dispose of old batteries.
Many electronic stores and supermarkets have battery recycling bins.
Alkaline batteries can be safely disposed of with normal household waste.
Never dispose of batteries in fire because they could explode.
button again. This allows the user to stop or reverse the opener
light button.
PRESS THE
LEARN BUTTON
THE RED LED WILL
GLOW FOR 15 SECONDS
key until
2
ENTER A 1-6 DIGIT CODE
WHILE RED LED IS ON
This product is warranted to the consumer against defects in material and workmanship for
one year from the date of purchase. This warranty applies to first retail buyers of new devices.
Warrantor will repair, or at its option, replace, any device it finds that requires service under this
2 warranty, and will return the repaired or replaced device to the consumer at the warrantor's cost.
REMOVE THE OLD
For warranty service and shipping instructions contact warrantor at the address shown below.
BATTERIES AND
Devices must be sent to warrantor for service at owner's expense. The remedies provided by
DISPOSE OF THEM
this warranty are exclusive. Implied warranties under state law are to the one year period of this
PROPERLY
written warranty. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you. In order to be protected by this warranty, save your
proof of purchase and send copy with equipment should repair be required. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
All products returned for warranty service require a Return Product Authorization Number (RPA#).
4 SLIDE BATTERY
Contact Linear Technical Service at 1-800-543-1236 for an RPA# and other important details.
COVER CLOSED
WARNING: Changes, modifications or adjustments not expressly approved by GTO Access
Systems, LLC could void the user's authority to operate this equipment. There Are No User
Serviceable Parts.
NOTICE:
standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouil-
lage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
COMPONENTS
KEYPAD
SCREW ANCHORS
WALL MOUNTING
MOUNT THE KEYPAD IN CLEAR VIEW OF THE
1
DOOR WITH THE TWO SCREWS SUPPLIED
Slide battery cover open and remove batteries to
access mounting hole. Replace batteries and slide
battery cover closed after mounting.
LIMITED WARRANTY
This device complies with part 15 of the FCC rules and with Industry Canada license-exempt RSS
Copyright © 2017 GTO Access Systems, LLC
Document Number: 10014581 REV B (06-19-17)
MOUNTING SCREWS
Use screw
anchors if
required.
