en

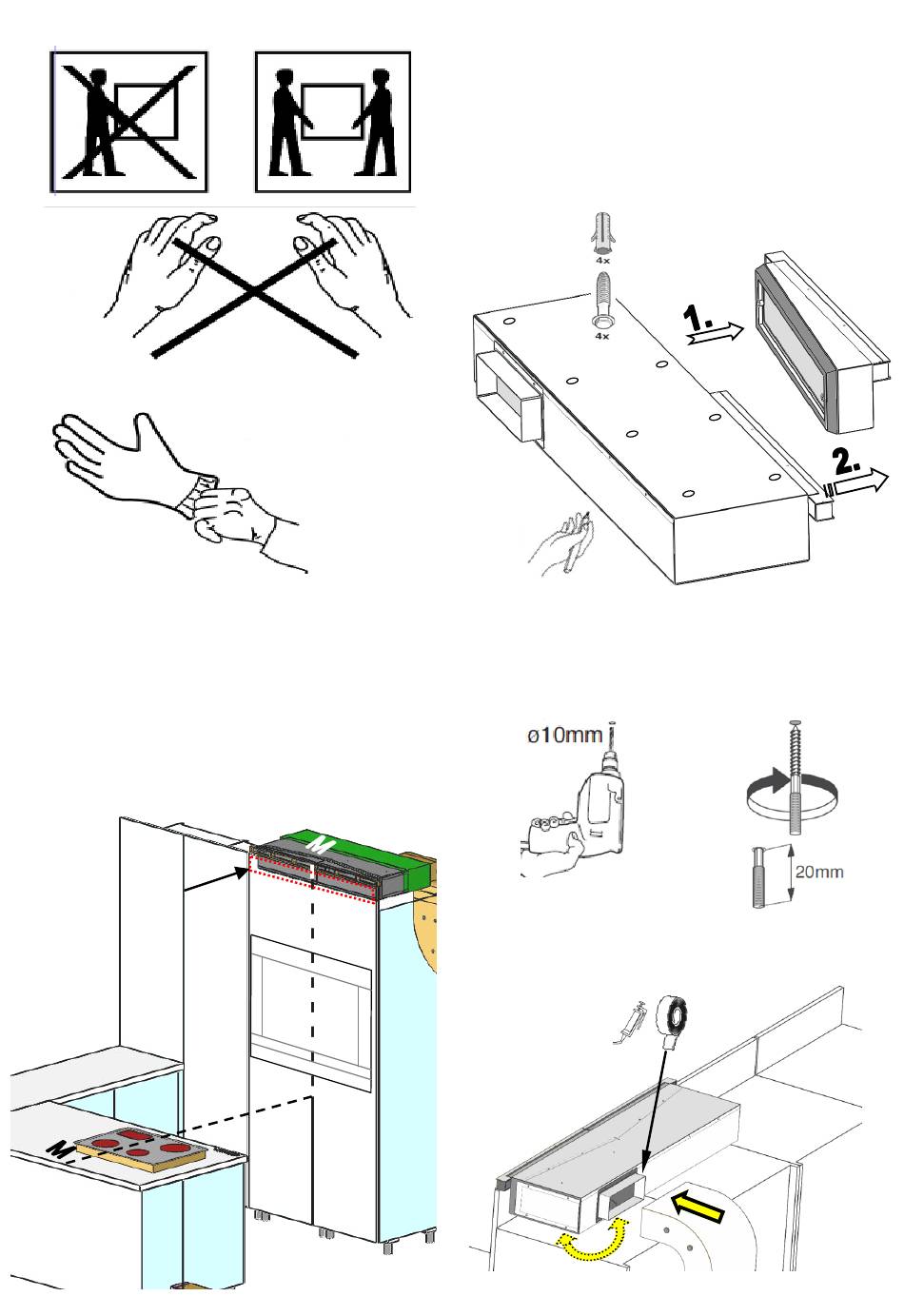

1. Make the necessary preparations
for installation of the hood on site -
cover kitchen appliances, etc.
2. Prepare suitable on-site exhaust
air facilities in the ceiling / wall. In-
stall the fan unit, please refer to the
fan manual).
revision opening
18
3. Determine the position of the ex-
traction unit to achieve optimum
extraction capacity. Axis M middle
of the hob = axis M middle of the
extraction unit! Use a plumb line for
help if necessary).
4. Mark the extraction unit fastening
holes. Choose a fastening variant.
Choose either fastening against
kitchen cabinets or against the ceil-
ing!
5. Drill four holes (Ø 10 mm) and
insert wall plugs.
