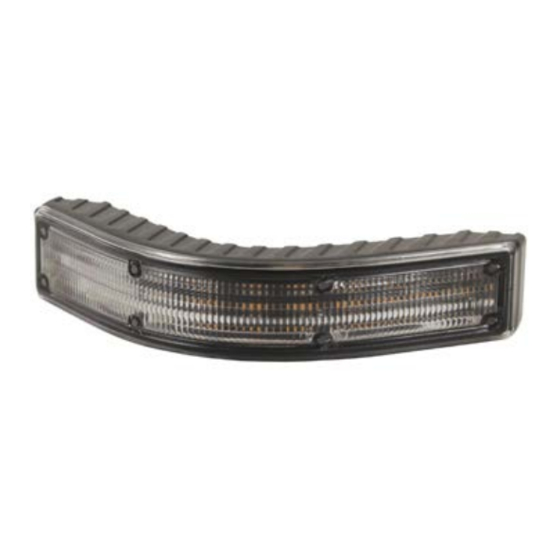

These 'Corner Module LED' units feature a much wider spread of light than typical Directional
LED Modules. When one 'Corner Module LED' is mounted on each corner of a vehicle, they
give a full 360 degrees of strong signal coverage and are approved to ECE Regulation 65
Category T. When a pair of 'Corner Module LED's are fitted either at the front or rear of a
vehicle they give a 270 degree coverage and are approved to ECE Regulation 65 Category
HT. The 'Corner Module LED' is also approved to ECE Regulation 65 as a Directional Lamp,
i.e. Category X.
These units are sealed against moisture and dust ingress, resistant to corrosion, humidity and
vibration and feature a low current draw. They operate at 12 or 24VDC and offer a long and
maintenance free service life.
They are fitted with an adjustable Stainless Steel universal bracket and have multiple
user-selectable flash patterns.
Item No: ED5100CA (Lens colour:C= CLEAR)
(LED colour: A = AMBER)
ED5100CB (Lens colour:C= CLEAR)
(LED colour: B = BLUE)
ED5100CAB (Lens colour:C= CLEAR)
(LED colour: A = AMBER B = BLUE)
ED5100CR (Lens colour:C= CLEAR)
(LED colour: R = RED)
Size with bracket: Height, 45mm (1.8") Width, 80mm
(3.2") Length 171mm (6.7")
Size without bracket: Height, 33mm (1.3") Width, 75mm
(3.0") Length 171mm (6.7")
Weight with bracket: 385g
Weight without bracket: 310g
Input Voltage: 10~30 VDC (Fuse @ 2A)
1x Corner Module LED
1x Installation Manual
2x Mounting Screws
1x Bracket (fixed to MODULE).
Important! This unit is a safety device, and it must be
connected to its own separate, fused power point to assure its
continued operation should any other electrical accessory fail.
Installation & Mounting:
Wire functions are as follows:
Black Wire: Negative. Connect to either the battery negative terminal or a suitable chassis point.
Red Wire: Power. Switch to 12-24V to operate the module. Must be powered through the fuse, located as close to the battery
terminal as possible.
White Wire:
(DUAL COLOUR MODULES ONLY) Power. Switch to 12-24V to operate the module. Must be powered through the
fuse, located as close to the battery terminal as possible.
Blue Wire:
Flash pattern set. Touch wire to Negative momentarily
(< 1 sec) to cycle through the available flash patterns (see table).
Synchronised Flash: Connect YELLOW wires of all units together after setting all units to the same pattern.
Yellow Wire:
Alternating Flash: (CAT 'X' or non-R65 arrangements only). Set all units to either Phase 1 or Phase 2 of the same
flash pattern, then connect the YELLOW wires together. Units set to Phase 1 will alternate with units set to Phase 2.
NOTE: When arranging corner Module LED's to comply with ECE R65 CAT 'HT' or 'T' all units must be set to pattern
P1, P3 or P5 and Synchronized.
Page 1 of 2
P/N 920-5111-00 (Rev C) 2016-12-02
© 2016 at ECCO
INSTALLATION & OPERATION INSTRUCTIONS
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning
devices are essential to ensure the safety of you and those you are seeking to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly connected to the vehicle negative. Poor connections and/or shorting of electrical
connections can cause high current arcing, which can cause personal injury and/or severe vehicle damage,
including fire.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so
that output performance of the system is maximized and the controls are placed within convenient reach of the
operator so that s/he can operate the system without losing eye contact with the roadway.
5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly.
In use, the vehicle operator should ensure the projection of the warning signal is not blocked by vehicle
components (i.e., open trunks or compartment doors), people, vehicles, or other obstructions.
6. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning
signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before
entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic
lanes.
7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding
and obeying all laws regarding warning signal devices. Therefore, the user should check all applicable city, state,
and federal laws and regulations. The manufacturer assumes no liability for any loss resulting from the use of this
warning device.
Before installation, examine the LED heads for transit
damage. Do not use damaged or broken parts.
The mounting location should allow the maximum visibility of the warning device to other road users,
while allowing for sufficient wire access.
CORNER MODULE LED
ED5100
Do not install and/or operate this safety product unless you have read
and understand the safety information contained in this manual.
Caution: When drilling into any vehicle surface, make sure the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged
ECCO Safety Group Europe
Victoria Industrial Park, Victoria Road
Seacroft, Leeds, England
LS14 2LA
+44 (0)113 2375340
www.eccosafetygroup.com
