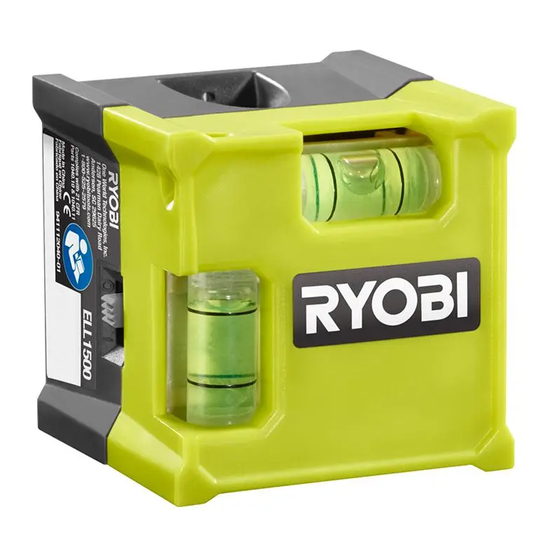

Ryobi ELL1500 Mode D'emploi

ELL1500
LASER LEVEL
SAFETY RULES
WARNING:
To reduce the risk of injury, the user must read
and understand the operator's manual before
using this product.
WARNING:
Keep button cell batteries out of sight and
reach of children. If you suspect a child has
ingested a battery, go to the hospital imme-
diately. Do not induce vomiting or have your
child eat or drink anything. For more informa-
tion, call the National Battery Ingestion Hot-
line: 202-625-3333. The battery identification
number for this product is LR44.
WARNING:
Use of controls or adjustments or perfor-
mance of procedures other than those speci-
fied herein may result in hazardous radiation
exposure.
WARNING:
The use of an optical instrument with this
product will increase eye hazard.
The laser guide radiation used in this laser level
is Class IIIa with < 5mW and 630-660 nm wave-
lengths. These lasers do not normally present
an optical hazard although staring at the beam
may cause flash blindness.
 Avoid direct eye exposure when using the
laser and do not project the laser beam
directly into the eyes of others. Serious
eye injury could result.
 Do not remove or deface any product
labels. Removing product labels increases
the risk of exposure to laser radiation.
 Do not place the laser level in a position
that may cause anyone to stare into the
laser beam intentionally or unintention-
ally. Serious eye injury could result.
 Do not operate the laser level around
children or allow children to operate the
tool. Serious eye injury could result.
 Always turn the laser level off when not in
use. Leaving the tool on increases the risk of
The following signal words and meanings are intended to explain the levels of risk associated with the product.
SYMBOL NAME
Safety Alert Indicates a potential personal injury hazard.
Read Operator's
To reduce the risk of injury, user must read and understand operator's manual before using this product.
Manual
Laser Exposure Laser radiation - avoid direct eye exposure.
1. INSTALLING BATTERIES 2. MOUNTING THE LASER LEVEL TO WALL
Three LR44
button cell
batteries are
preinstalled.
Remove the pull
tab to activate
the batteries.
2. MOUNTING (continued)
Press to stick to surface.
WAVE LENGTH: 630 - 660 NM
MAX. POWER OUTPUT < 5MW
CLASS IIIa LASER PRODUCT
Complies with CFR 21 parts 1040.10 and 1040.11 RYLD
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625 • Phone 1-800-525-2579 • www.ryobitools.com
États-Unis, Téléphone 1-800-525-2579 • USA, Teléfono 1-800-525-2579
someone inadvertently staring into the laser
beam.
 Do not operate the laser level in com-
bustible areas such as in the presence
of flammable liquids, gasses or dust.
 Always ensure the laser beam is aimed
at a surface without reflective properties.
Shiny reflective materials are not suitable for
laser use.
 Do not disassemble the laser level. There
are no user serviceable parts inside.
EXPLANATION
Use push pin
to mount to
wall.
OR 
3. USING THE LASER LEVEL
Turn level on.
Adjust position
as needed to
center bubble(s)
in appropriate
vial(s).
 Handle the laser level with care. Treat it
as you would any other optical device such
as a camera or binoculars.
 Avoid exposing the laser level to shock,
continuous vibration or extreme hot or
cold temperatures. Damage to the tool
and/or serious injury to the user could result.
 Save these instructions. Refer to them fre-
quently and use them to instruct others who
may use this laser level. If you loan someone
this laser level, loan them these instructions
also.
Apply
Remove backing
removable
from removable
adhesive
adhesive strip
strip (not
and prepare to
provided).
stick to the wall.
4. REMOVING THE LASER LEVEL
Remove laser
level from
surface.
This product has a Three-year Limited Warranty.
For warranty details, go to www.ryobitools.com.
10-11-16 (REV:06)
991000892
