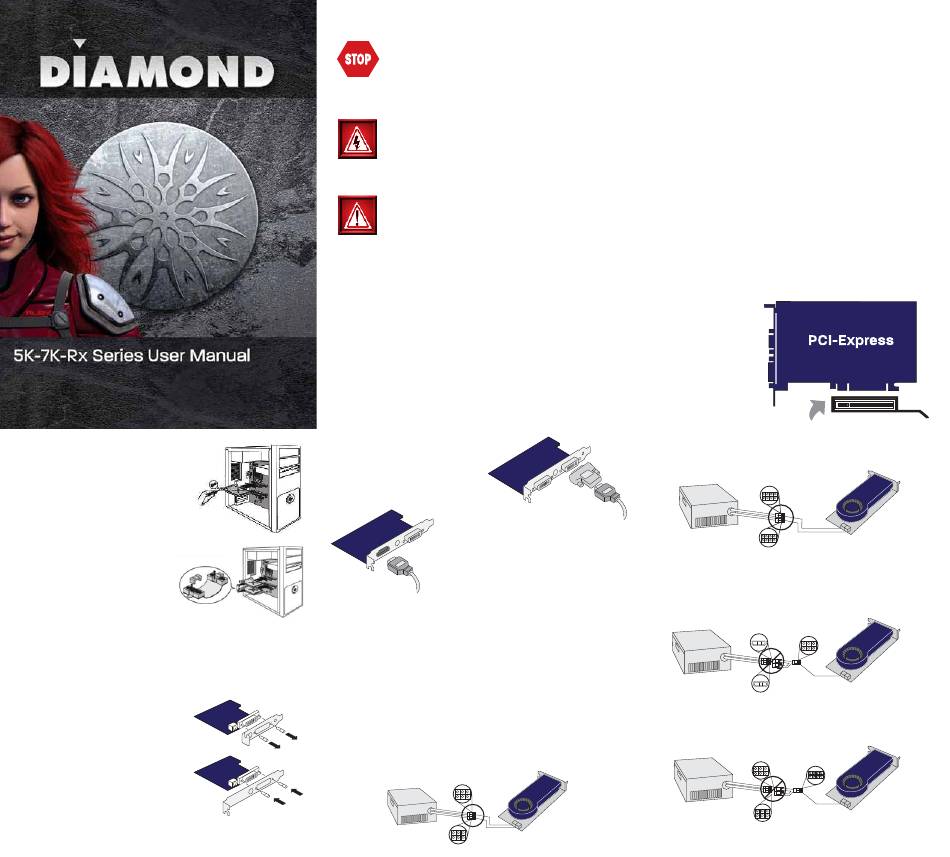

Diamond 5K-7K-Rx Serie Manuel D'utilisation

3. Insert your new graphics card
3.1. Position the graphics card over the
expansion slot you're chosen.
3.2. Push the card firmly and evenly until
it's fully seated into the slot
3.3. Secure the mounting bracket of the
graphics card to the chassis
Installing AMD CrossfireX graphics card
(if applicable)
1. Locate the PCI-E x16 slot on the
motherboard.
2. Insert the second graphics
cards as described above.
3. Connect the cards with AMD crossfire
bridge interconnect.
You need to enable AMD crossfire in
AMD Catalyst Control Center. For
information specific to CrossfireX, like
CrossfireX requirements and how to
enable it, visit www.diamondmm.com.
Note:
Software Crossfire – you can use two "Crossfire ready graphics card" to
complete crossfire platform without using AMD crossfire bridge interconnect.
Replacing Brackets on a graphic
card (if applicable)
1. Remove the hexagonal nuts on
the display connect with a HEX
Driver.
2. Attach and fasten the bracket
you'll use with the two hexago-
nal nuts you just removed.
Safety Notices
Package Contents
Please verify your package contains the
following items.
1. Diamond Radeon Graphics Card
2. Quick Start Guide
3. Installation CD
Before You Begin
Please have the following items available prior to the installation
1. System / Motherboard manual (or working knowledge)
2. A philips head screwdriver
3. Can of compressed air (optional, recommended for upgraders)
4. Please check the outside of the package to verify that your system meets
the minimum system requirements.
Connect the display devices with HDMI
connect (if applicable)
If your graphics card support HD output,
you can connect your display device with
HDMI connector to the graphics card
using a DVI-to- HDMI adapter and HDMI
cable.
Note:
AMD Crossfire bridge interconnect, DVI-to-HDMI adapter and HDMI cable are
optional accessories, included with certain products only. For information on
what accessories will include with your graphics card, see "What's in the box"
printed in the package.
Connecting the power cable (if applicable)
If you're using the 6-pin or 8-pin power connectors, then be sure to plug each
of the adapter's peripheral connectors into a separate PSU cable. Plugging
them both into the same PSU cable forces the video card to draw its power
through one wire. Thus increases your voltage drop and power dissipation in
the cable. Make sure that you connect the dedicated PCI Express power
cables from Power Supply Unit (PSU) to graphics card. We do not recommend
the use of power cable converter for graphics card.
1. Proper Power Connection
Low Profile
Bracket Connect 2 individual PCI Express (6-pin) power cable directly from the
power supply to each power connector on your graphics card.
ATX Bracket
Please make sure to read all the instructions thoroughly
before attempting the installation of this product.
• Do not attempt to install this product during an electrical
storm.
• Make sure your computer system is connected to a properly
grounded power outlet.
• Touching the exposed metal part of your computer case (on
the rear side) will discharge static electricity from your body.
We recommend you perform this step before touching this
product or any part inside your computer and periodically
while working inside your PC.
• Internal Boards may contain "Lead" which may cause birth
defects and other reproductive harm. Please wash your
hands thoroughly after handling these products. This notice
is required under California " proposition 65 " and Health &
Safety code.
DVI-to-HDMI
adapter
If your graphics card has a native HDMI
connect, use the HDMI cable to connect
it directly to your display device with
HDMI connector.
HDMI cable
This guide contains basic instructions for installing the graphics card.
For more detailed information, please refer to the User's Manual on the
driver CD-ROM that came with this graphics card.
Caution
Electrostatic discharge (ESD) can damage your graphics card and
computer system components. Discharge the static electricity from your
body by touching the internal metal frame of your system chassis while
the system power is off or wear an antistatic wrist strap before perform-
ing installation.
Hardware Installation
. 1 R e m o v e y o r u e x t s i n i g g a r p
- 1 . 1 D e p e n d n i g o n h t e v e s r o i n
"Add or Remove Programs" OR "Program and Features" in the Control
Panel, uninstall any currently installed graphics card drivers. Restart your
computer. Click Cancel when the system prompts you to install display
driver for the new hardware found.
- 1 . 2 P o w r e o f f y o r u c o m p t u r e
graphics card. Remove all other cables from your computer system
before you open the cover of the computer.
- 1 . 3 R e m o v e h t e c o m p t u r e c o
card.
. 2 L o c a e t h t e P I C E - s o l . t
Connect 2 individual PCI Express (8-pin) power cables directly from the power
supply to each power connector on your graphics card.
HDMI cable
(Do not plug a 6-pin power cable in an 8-pin power connector).
2. Improper Power Connection not recommend the use of two 4-pin to one 6-
pin power cable converter for graphics card. They are designed to work with
high performance power supplies using 6-pin PCI Express power cable.
It is not recommend the use of two 6-pin to one 8-pin power cable converter for
graphics card. They are designed to work with high performance power supplies
using 8-pin PCI Express power cable.
i h s c c a d r r d v i r e
f o W n i d o w s y o r u s s y e t m u r n n n i , g u s n i g
a n d i d c s o n n e t c y o r u m o i n o t f r o r m y o r u o d l
v r e a n d e r m o v e y o r u e x t s i n i g g a r p i h s c
