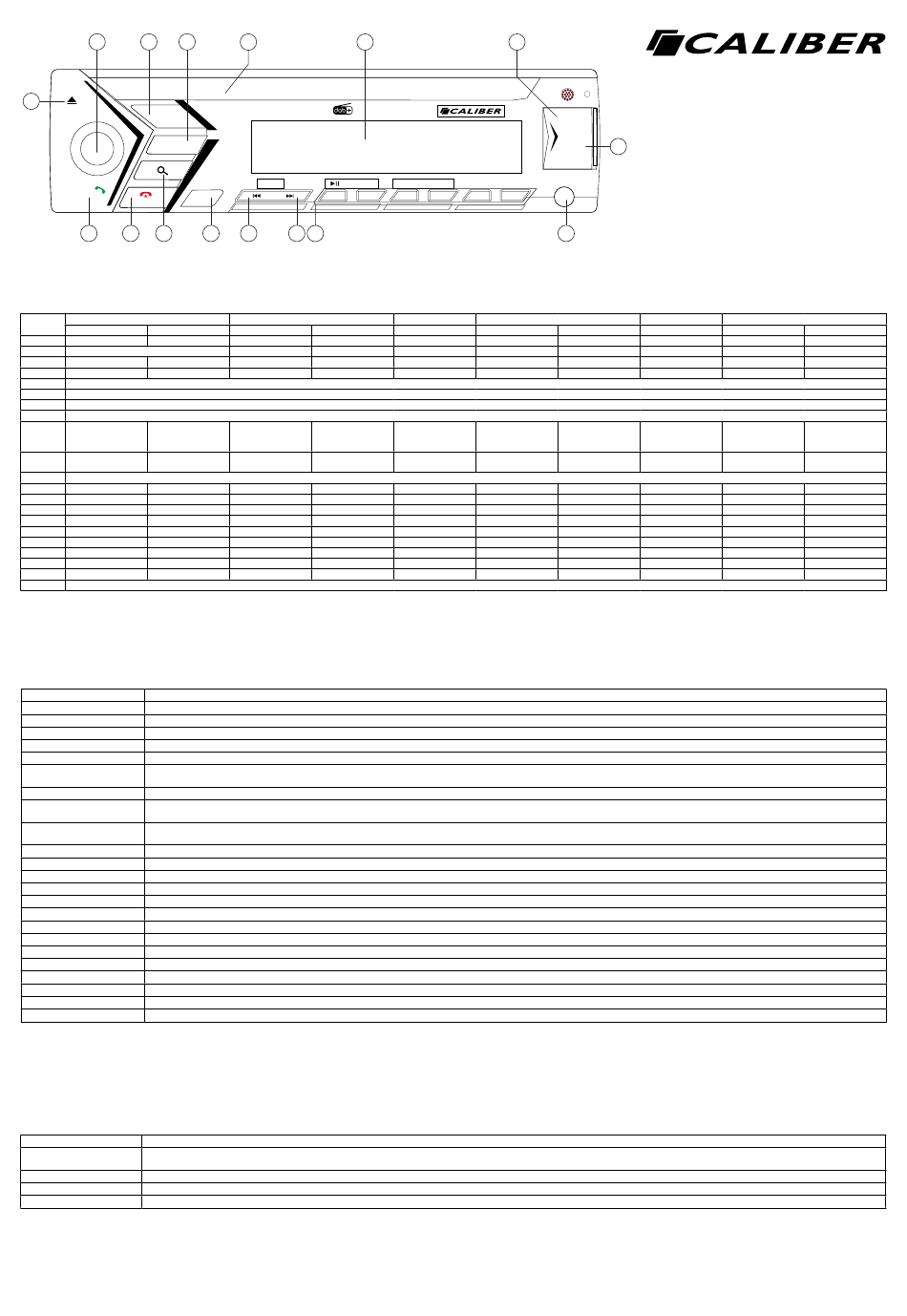

Caliber RCD 236DAB-BT Manuel page 4

2 3 4
1
q
MUTE
BAND
CLK
MODE
9 10 11
Key System
Short press Long press
1
2 Rotary Volume
3 Power Power off
4 Mute
5
6
7
8
9
10 Mode
11
12 Display Clock set
13
14
15
16
Description of the functions
Panel Release Push this button to release the frontpanel.
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3, AM1 and AM2
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (CD,USB, etc.) it will automatically interrupt the cd
TA
and give the information, after that it automatically switches back to the selected mode
Manual up/down Long press to move the radio frequency number up/down step by step.
Menu (system) Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions:
TA SEEK/ALARM > MASK ALL/DPI > TA VOL > RETURN S/L (Press to enter fuctions)
The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
Audio Menu
In EQ mode you can choose from preset EQ settings: FLAT, CLASSIC, POP, ROCK
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner, DAB) by pushing the button as many times as needed.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
This button allows you in CD, USB or SD mode to play or to pause the music.
Pause/Play
Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Scan
Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Repeat
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
Long press to fast forward to the CD, USB or SD.
fast forward/backward
3,5mm AUX jack in
To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode. (Max 32GB)
Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 32GB card)
SD card input (behind panel)
Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
Reset (behind panel)
Bluetooth
Pairing Activate Bluetooth on your mobile phone, and search for available devices. Select "RCD236DAB-BT Caliber" . If succesfull "Connected" is displayed, if not "Pairing Fail!" will be displayed for 3 sec-
onds. The unit will go back to the previous mode.
Reconnect The unit will normally auto-reconnect.
Reject incomming call Press (F/PS) button if you not wish to answer the call, and return to normal playing mode.
Transfer To audio transfer from headunit back to the mobile phone. Long press the Transfer (MOD) button to transfer the audio back to your mobile.
5 6
RCD236DAB-BT
INT
1 2
12 13 14 15
Tuner
Short press Long press
Band
Mode
PTY
Seek down Manual down
Seek up Manual up
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
Note! Do not operate the unit while driving!
7
IR
USB
SD
RPT RDM
4X 75W CD/USB/SD/AUX/MP3/MP4/DVD
AUX
3 4 5 6
16
DAB CD/MP3/WMA
Short press Short press
Eject
Disc slot
LCD display
USB port
Micro SD slot
ID3
Mode
Automatic scan & store
Stadion down Track down
Stadion up Track up
Store M1 Play/Pause
Store M2 Intro
Store M3 Repeat
Shuffle
Store M4
Store M5 Folder down
Store M6 Folder up
3,5mm AUX In Jack
MIC
RCD 236DAB-BT
English
8
BT Audio
Long press Short press Short press
incomming call
Reject incoming
call/end call
fast backward Track down
fast forward Track up
Play/Pause
Bluetooth
Long press
Answer Transfer
conversation to
mobile phone
