Connection Diagram - Caliber RCD 236DAB-BT Manuel

RCD 236DAB-BT
Microphone IN
ISO connector:
A1. Rear right speaker(+) / Purple
A2. Rear right speaker(-) / Purple-Black
A3. Front right speaker(+) / Grey
A4. Front right speaker(-) / Grey-Black
A5. Reverse (green/white)
A6. Car brake control (brown)
A7. Rear left speaker(+) / Green
A8. Rear left speaker(-) / Green-Black

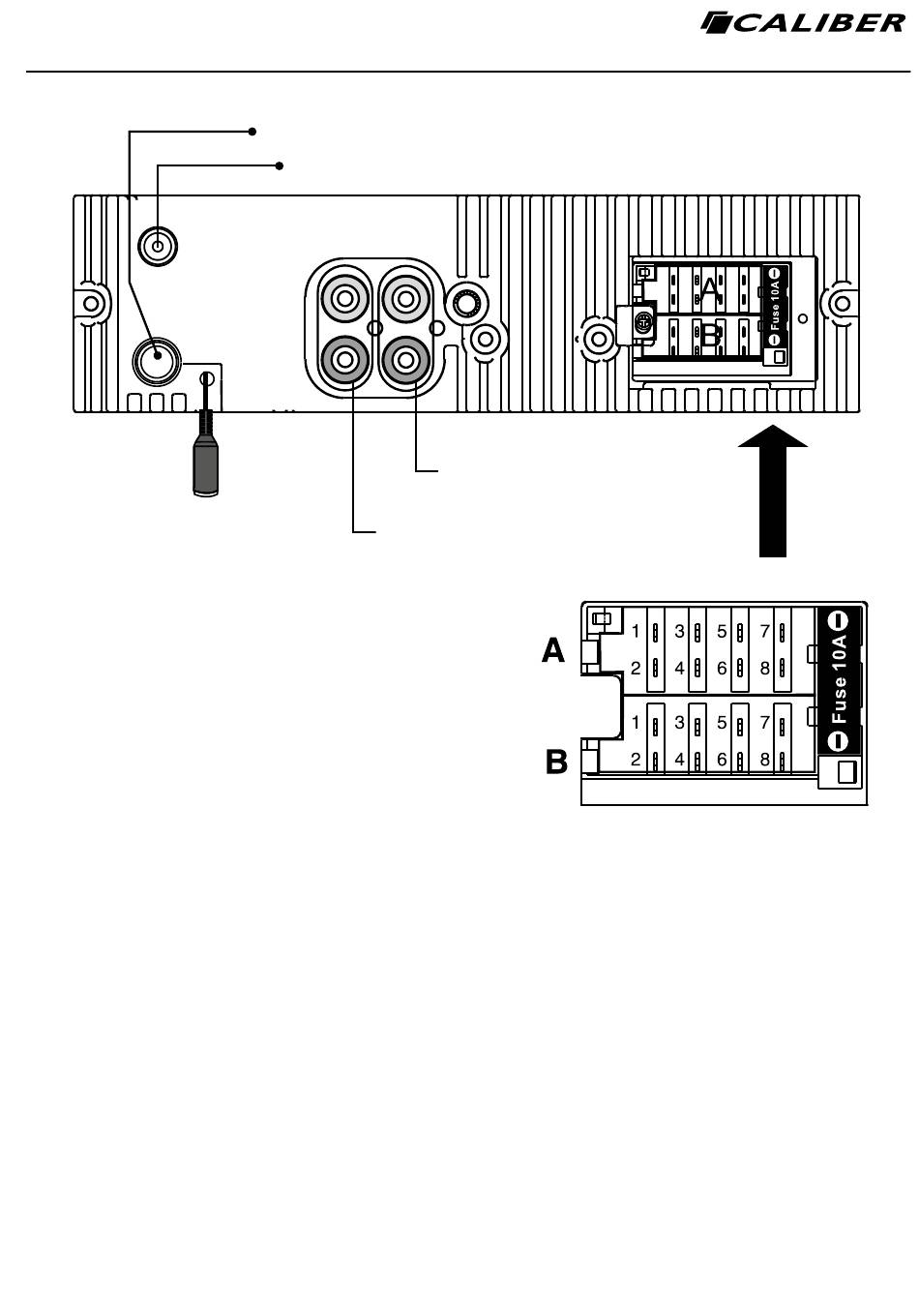

CONNECTION DIAGRAM

Antenna input (DIN)
DAB antenna input
(3.5mm jack)
Sub output
(White: Left / Red: Right)
Stereo RCA output
(White: Left / Red: Right)
ISO connector:
B1. --
B2. --
B3. --
B4. Battery 12V (+) / Yellow
B5. Reverse / Blue-White (+12V)
B6. Panel light / Orange-White (optional)
B7. ACC+ / Red
B8. Ground / Black
