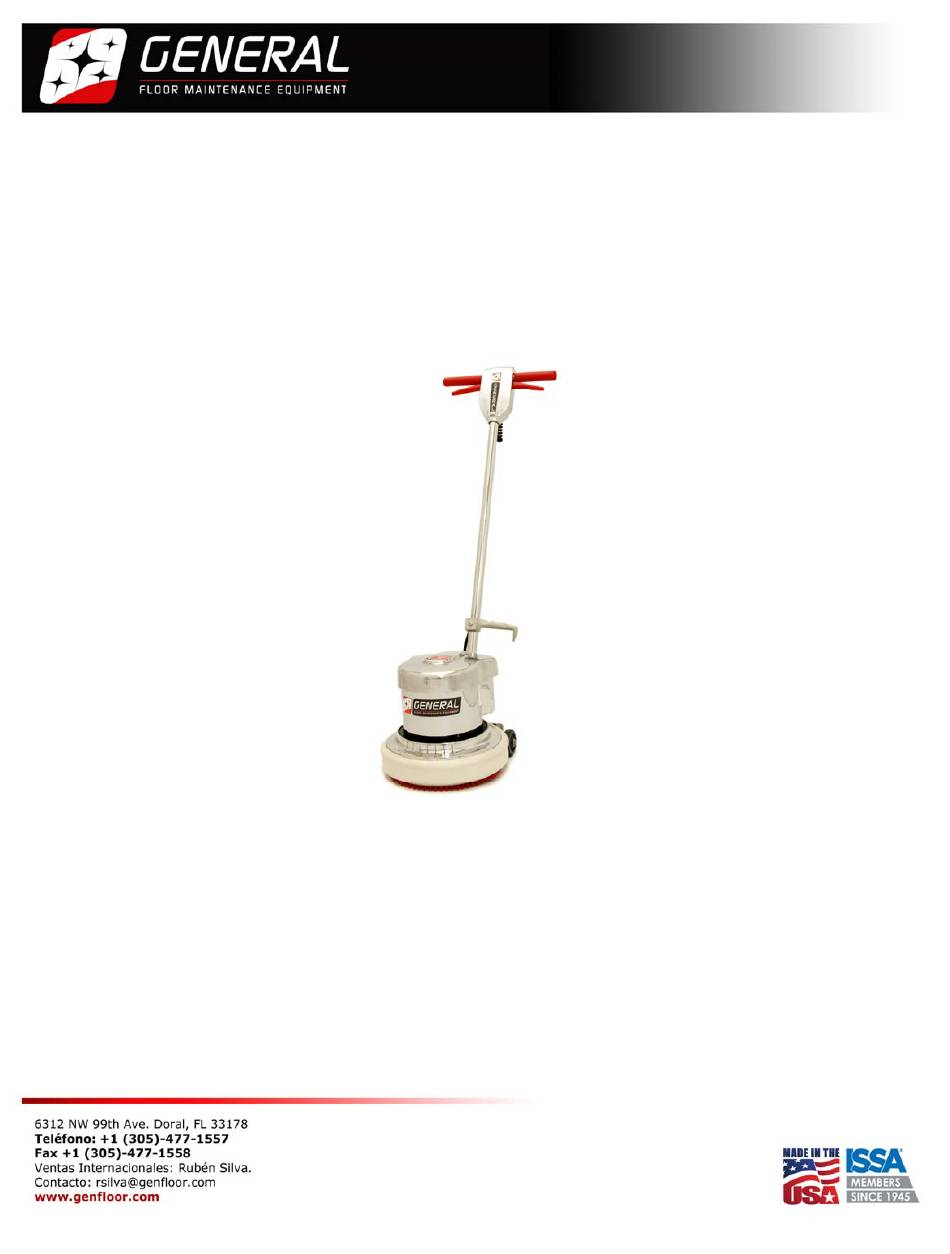

- Page 1 KC 13 HEAVY DUTY LOW SPEED 220 V 50 Hz OWNERS MANUAL OPERATION PARTS -WARRANTY- CARE SAFETY -STORAGE - ACCESSORIES IMPORTANT: READ OWNERS MANUAL CAREFULLY Please fill out and return your Product & Warranty Registration Form...
-
Page 2: Table Des Matières
CONGRATULATIONS on choosing General Floorcraft for your Floor Maintenance Equipment Line. Welcome to the family of General Floorcraft. We appreciate your business and will do everything in our power to keep you satisfied. As a family member of America’s Oldest and Most Trusted Manufacturer of Floor Maintenance Equipment, you purchased the highest quality equipment with the best warranties in the industry. -
Page 3: Machine Assembly
MACHINE ASSEMBLY THIS KC-13 DRAWING AND PARTS LIST IS BROKEN DOWN IN SUB ASSEMBLIES FOR EASY REFERENCE. AT RIGHT ARE SHOWN ALL THE SUB ASSEMBLIES AND CERTAIN PARTS THAT ARE NOT SHOWN ON ANY OTHER DRAWINGS. WHEN ORDERING PARTS, ALWAYS USE PART NUMBERS—DO NOT USE REFERENCE NUMBERS! GIVE MODEL NUMBER, SERIAL NUMBER AND PART NUMBER WHEN ORDERING. -
Page 4: Handle Assembly
HANDLE ASSEMBLY K L Reference # Part Number Descrip on Quan ty Reference # Part Number Descrip on Quan ty 1 501044 Switchbox, Front and Back Polished 1 26 501080 Handle Tube, Chrome, Safety Switch Box 1 2 501028 Handle Bar 1 27 501054 Nut, Lock with Nylon Insert 1 3 505188 Grip, Handle Red 2 28 505804 Screw, Strain Relief 1 4 ... -
Page 5: Lower Machine Assembly
LOWER MACHINE ASSEMBLY Old Parts 120523 - Screw, Handle Knob 120524 - Handle Adaptor 120526 - Link, Handle Adaptor 505130 - Washer, Handle Adaptor 505124 - Knob, Handle Adaptor Reference # Part Number Descrip on Required 1 125017 Axle, Wheel 2 2 135502 Washer, Axle ... - Page 6 1 HP MOTOR ASSEMBLY IMPERIAL ELECTRIC MOTOR ONLY Reference # Part Number Descrip on Required 1 1 301347 Bolt, Thru 4 2 135406 Screw, Access Cover 2 3 135412 Cover, Wire Connec on Access Cover 1 4 135488 Top End Bell 1 3 5 135496 Switch, Sta onary 1 6 135406 Screw, Sta onary Switch 2 ...
-
Page 7: Gearbox Assembly
GEARBOX ASSEMBLY 2 PLANET GEARBOX 1 2 IMPERIAL ELECTRIC MOTOR ONLY. 3 4 5 6 Reference # Part Number Descrip on Required 7 1 135459 Screw, Cap 6 8 2 135458 Retainer Plate 1 3 135452 Ball Bearing 3 9 4 135401 End Shield 1 10 5 ... -
Page 8: Delivery & Safety Instructions
WHEN THE MACHINE IS DELIVERED You are responsible for inspecting the order upon receipt. General Floorcraft is not responsible for dam- age if you have signed for the goods and do not note any damages on the shipping receipt. Note any visible damage on delivery receipt immediately. -
Page 9: Safety Instructions
Turn off all controls before unplugging. When servicing machine, use only manufacturer’s replacement parts. All service should be per- formed only by General Floorcraft authorized service centers. Use extra care when cleaning stairs. Do not immerse or use this machine in standing water. Such use can cause electric shock. -
Page 10: Safety & Grounding Instructions
SAFETY & GROUNDING INSTRUCTIONS WARNING! DO NOT use extension cords more than 50 feet (15 m) long. Replace the cord if the ground pin is damaged or broken. FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL VOID THE WARRANTY. GROUNDING INSTRUCTIONS This appliance must be grounded. -
Page 11: Assembly & Operation Instructions
ASSEMBLY & OPERATION INSTRUCTIONS PREPARE THE MACHINE FOR OPERATION (SETTING UP) The KC-13 machine is packed in two separate boxes. The machine is in box 1 of 2, and the handle is in carton 2 of 2. Unpack the machine and handle carefully. Insert the handle into the handle adaptor sock- et and tighten the two square head screws to hold the handle firmly in place. -
Page 12: After Use
MANEUVERING & STORAGE INSTRUCTIONS HOW TO MANEUVER YOUR FLOOR MACHINE: 1.) Raise handle slightly and the machine will go to the right. The higher you raise it, the faster it will go to the right. 2.) Lower the handle and the machine will go to the left. The more you lower it, the faster it will go to the left. -
Page 13: Livraison Et Consignes De Securite
LIVRAISON ET CONSIGNES DE SÉCURITÉ LORSQUE LA MACHINE EST REMIS Vous êtes responsable de l'inspection de la commande dès réception . General Floorcraft n'est pas re- sponsable des dommages si vous avez signé pour les marchandises et de ne pas noter les dommages sur le bon de livraison . -
Page 14: Consignes De Securite
CONSIGNES DE SÉCURITÉ ATTENTION! Pour réduire le risque d'incendie , de choc électrique ou de blessure: Ne pas permettre que soit utilisé comme un jouet. Une attention particulière est nécessaire lorsqu'il est utilisé par ou près des enfants . Ne manipulez pas la fiche ou l'appareil avec les mains mouillées . Ne pas débrancher en tirant sur le cordon . -
Page 15: Securite Et Instructions De Mise
SÉCURITÉ ET INSTRUCTIONS DE MISE ATTENTION! NE PAS utiliser de rallonges de plus de 50 pieds (15 m) de long. Remplacez le cordon si la broche de terre est endommagé ou cassé. NON-RESPECT DES CONSIGNES DE GARDE ci-dessus ANNULE LA GARANTIE. INSTRUCTIONS DE MISE Cet appareil doit être mis à... -
Page 16: Montage Et Mode D'emploi
MONTAGE ET MODE D'EMPLOI PRÉPARATION DE LA MACHINE POUR LE FONCTIONNEMENT (mise en place ) Le KC -13 machine est emballée dans deux boîtes séparées . La machine est en zone 1 de 2, et la poignée est en carton 2 sur 2 . Déballez la machine et manipuler avec précaution . Insérez la poignée dans la prise de l'adaptateur de la poignée et serrez les deux vis à... -
Page 17: Comment Manoeuvrer Votre Machine Etage
MANOEUVRER & STOCKAGE INSTRUCTIONS COMMENT MANOEUVRER VOTRE MACHINE ETAGE: 1.) Soulever légèrement la poignée et la machine ira vers la droite. Lorsque vous élevez, plus vite il ira vers la droite. 2.) Abaissez la poignée et la machine ira vers la gauche. Le plus vous baissez, plus vite il ira vers la gauche. -
Page 18: Warranty
(Warranty Form must be properly filled out and sent in within 10 days of receipt of equipment). This replacement or repair shall only be performed by General Floorcra recommended distributor. All machines and/or parts must be returned prepaid to the factory for ... - Page 19 Product & Warranty Registration Form Thank you for registering your General Floorcraft Equipment. As a registered user, you will receive free technical support, special offers and new product information. By returning this form, we can also confirm the date of purchase of your equipment for your warranty from the date of purchase.
