3. Considérations électriques

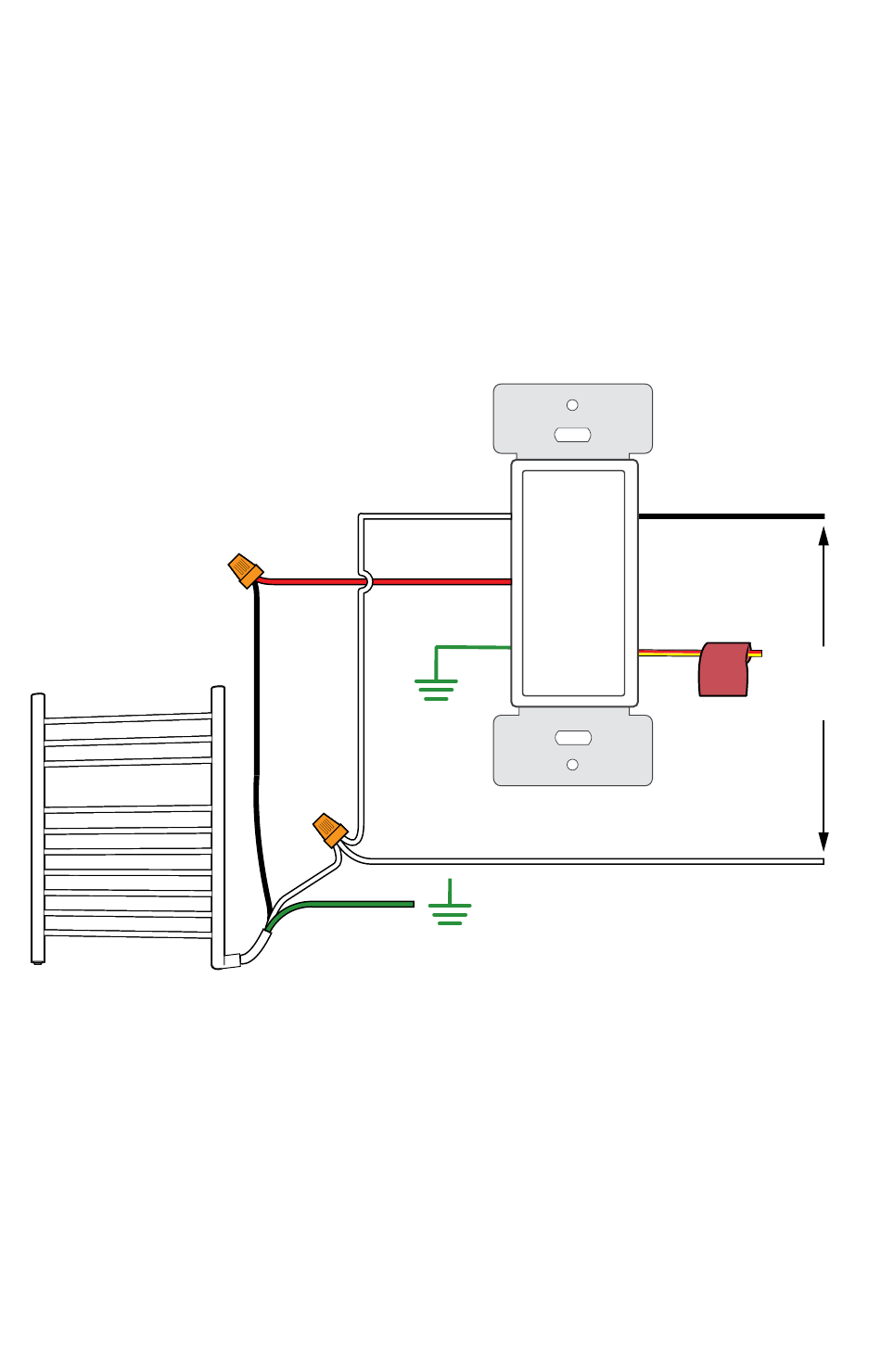

Diagramme F: Schéma de câblage (modèles câblés
uniquement)
TOWEL
WARMER
ation Support • (800) 875-5285 • www.WarmlyYours.com
WITH HARDWIRED TIMERS OR SWITCHES
(GK16-30090-0001, GK16-30090-0003, GK16-30090-0002)
NEUTRAL (WHITE)
LOAD (RED)
GROUND
(GREEN)
CONNECT
TO HOUSE
GROUND
CONNECT TO HOUSE GROUND
ENSURE THE SYSTEM IS GROUNDED
* - WE RECOMMEND TO ISOLATE THE YELLOW
3-WAY WIRE FROM THE OTHER WIRES USING A
SOLDERLESS WIRE-NUT CONNECTOR.
9
WIRING DIAGRAM
FOR TOWEL WARMERS
HOT (BLACK)
3-WAY TERMINAL*
(YELLOW/RED)
NEUTRAL (WHITE)
POWER
SOURCE
120VAC
