1. Set up

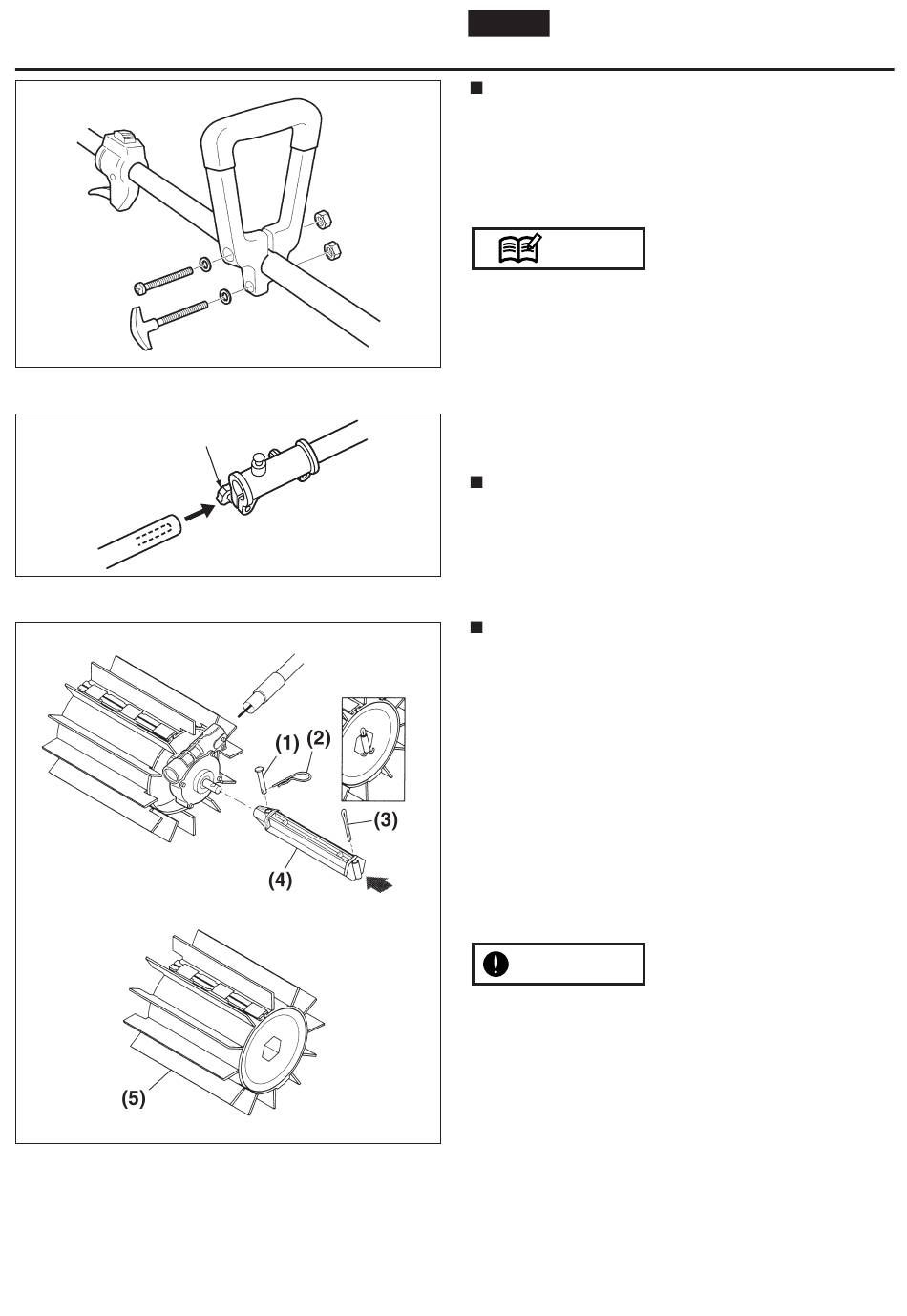

INSTALL THE HANDLE (SE1)
1. Remove both screws from the handle.
2. While spreading the handle at the mounting hole,
position the handle on the outer tube as shown.
3. Reinstall the two mounting screws in the handle, but
do not tighten them at this time.
NOTE
One side of the handle is recessed to receive the hex
nuts.
4. Locate the handle at the best position for operator
comfort (usually about 10inches (25cm) ahead of the
throttle lever), and secure it by tightening the knob at
the handle base.
JOINT ATTACHMENT (SE2)
• Insert the attachment to the main shaft.
• Tighten the knob bolt securely.
(1) Knob bolt
SWEEPER ASSEMBLY (SE3)
1. Push one of the drum axles onto either of the two
gearcase output shafts. If necessary, rotate the drum
axle until the clevis pin hole in the axle aligns with
the matching hole in the gearcase output shaft.
2. Use a clevis pin and hitch pin to secure the drum
axel to the shaft.
3. Slide the recessed end of a sweeper drum assembly
over the assembled axle, and then push the drum
down the axel until it bottoms at the clevis pin.
(1) Clevis Pin
(2) Hitch Pin
(3) Cotter Pin
(4) Drum Axle
(5) Drum Assembly
IMPORTANT
The two drum assemblies are identical, but each drum
must be installed with its recessed end facing toward
the gearcase.
4. Use a cotter pin to secure the drum assembly on the
axle (see inset) . The cotter pin is designed to fit
tightly against the outboard end of the drum, so you
may need to compress the drum face slightly during
installation.
5. Repeat Steps 1-4 to install the remaining axle and
drum assembly.
